Aluminum Grip-Strut Walk Ramps

Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers.

One hundred percent welded aluminum construction is lightweight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two (2) safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three-wheeled carts.

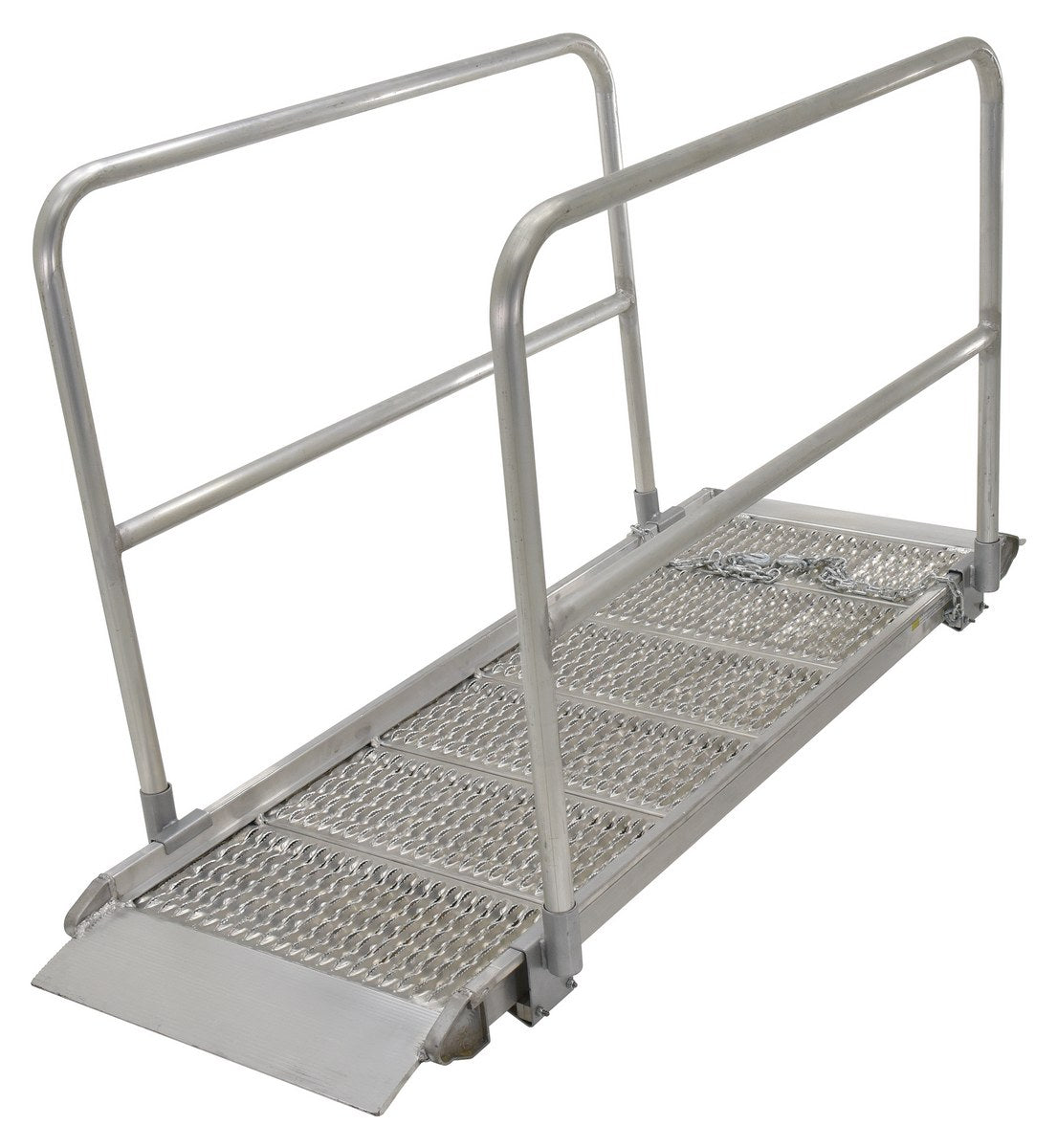

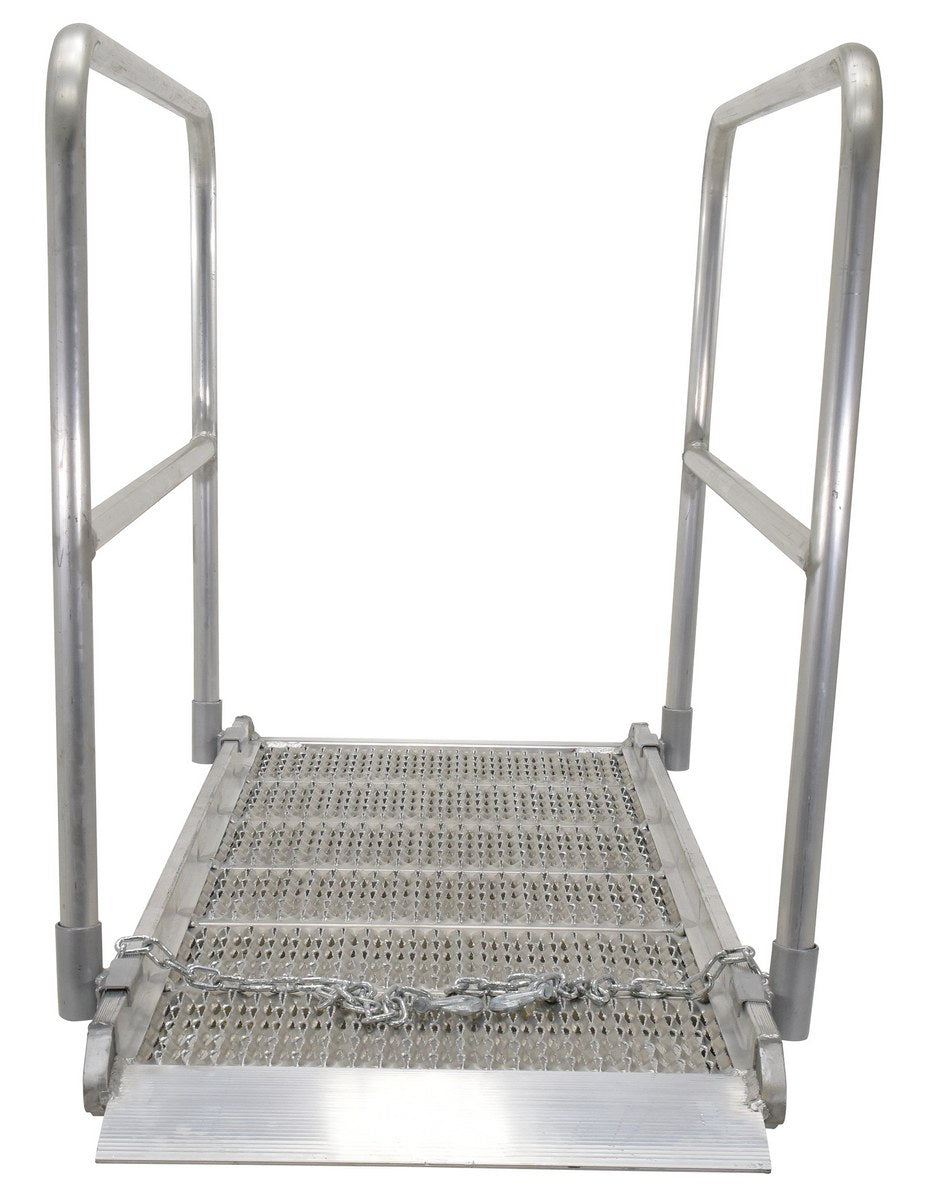

Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included. Handrails are included for both sides of the ramp.

Aluminum Grip-Strut Walk Ramps
Model	Image	PDF	Usable Length	4-Wheel Cart Capacity (lbs.)	2-Wheel Cart Capacity (lbs.)	Height Range	Wt. (lbs.)
AWR-G-28-6A			73-1/4"	2,800	2,000	6"-21"	41
AWR-G-28-7A			85"	2,800	1,800	6"-25"	59
AWR-G-28-8A			96-3/4"	2,500	1,650	6"-29"	61
AWR-G-28-9A			108-1/2"	2,500	1,600	6"-33"	63
AWR-G-28-10A			120-1/4"	2,200	1,500	6"-38"	68
AWR-G-28-12A			143-3/4"	1,900	1,400	6"-46"	77
AWR-G-28-14A			167-1/4"	1,600	1,200	6"-56"	89
AWR-G-28-16A			190-3/4"	1,000	1,000	6"-62"	122
AWR-G-38-6A			73-1/4"	2,800	2,000	6"-21	55
AWR-G-38-7A			85"	2,800	1,800	6"-25	59
AWR-G-38-8A			96-3/4"	2,500	1,650	6"-29"	66
AWR-G-38-9A			108-1/2"	2,500	1,600	6"-33"	73
AWR-G-38-10A			120-1/4"	2,200	1,500	6"-38"	80
AWR-G-38-12A			143-3/4"	1,900	1,400	6"-46"	94
AWR-G-38-14A			167-1/4"	1,600	1,200	6"-56"	123
AWR-G-38-16A			190-3/4"	1,000	1,000	6"-62"	142
Aluminum Grip-Strut Walk Ramps with Handrail
AWR-G-28-6A-HR			73-1/4"	2,800	2,000	6"-21"	41
AWR-G-28-7A-HR			85"	2,800	1,800	6"-25"	59
AWR-G-28-8A-HR			96-3/4"	2,500	1,650	6"-29"	61
AWR-G-28-9A-HR			108-1/2"	2,500	1,600	6"-33"	63
AWR-G-28-10A-HR			120-1/4"	2,200	1,500	6"- 38"	68
AWR-G-28-12A-HR			143-3/4"	1,900	1,400	6"-46"	77
AWR-G-28-14A-HR			167-1/4"	1,600	1,200	6"-56"	89
AWR-G-28-16A-HR			190-3/4"	1,000	1,000	6"-62"	122
AWR-G-38-6A-HR			73-1/4"	2,800	2,000	6"-21"	55
AWR-G-38-7A-HR			85"	2,800	1,800	6"-25"	59
AWR-G-38-8A-HR			96-3/4"	2,500	1,650	6"-29"	66
AWR-G-38-9A-HR			108-1/2"	2,500	1,600	6"-33"	73
AWR-G-38-10A-HR			120-1/4"	2,200	1,500	6"38"	80
AWR-G-38-12A-HR			143-3/4"	1,900	1,400	6"-46"	94
AWR-G-38-14A-HR			167-1/4"	1,600	1,200	6"-56"	123
AWR-G-38-16A-HR			190-3/4"	1,000	1,000	6"-62"	142
SPLIT RAMP STYLE
Model	Image	PDF	Overall Size (WxLxH)	4-Wheel Cart Capacity (lbs)	2-Wheel Cart Capacity (lbs)	Usable Width	Wt. (lbs)
AWR-G-18-ESR-12A			35-7/8"x143-3/4"x6-9/16"	1,800	1,400	33-3/8"	140
AWR-G-36-ESR-12A			35-7/8"x143-3/4"x6-9/16"	1,800	1,400	33-3/8"	140
AWR-G-18-ESR-12A-EXT			18-7/16"x143-3/4"x4-15/16"	1,800	1,400	16-11/16"	63

KEY:  = Approval Drawing --  = Warranty --  = Testing Certificate
