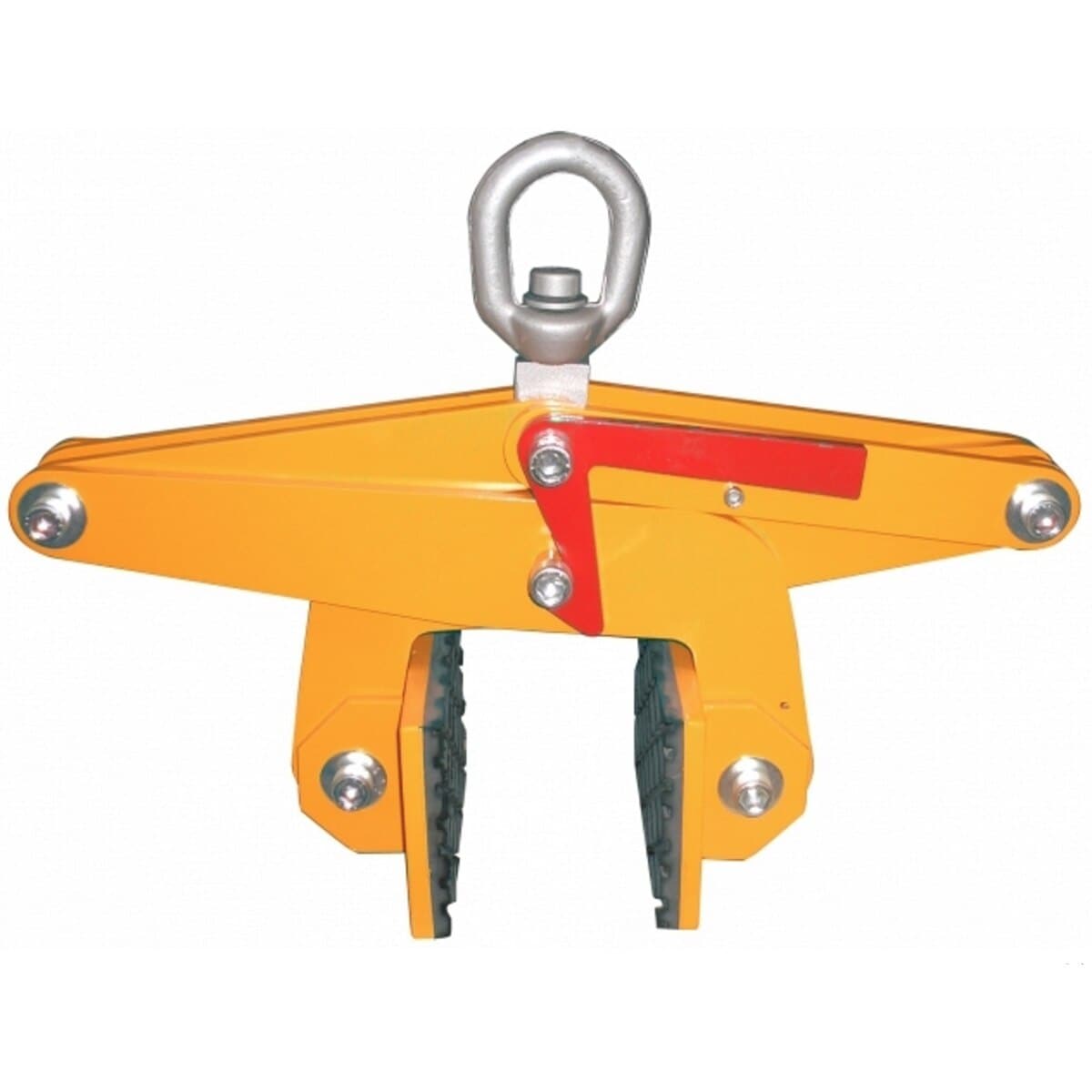

Abaco SC150 Scissor Clamp
SKU: SC150-B
ETA is the middle to the end of August
Scissor Clamp Lifting by Abaco Machines
Moving slabs of stone is made easy by using scissor clamp lifting. The Abaco 150 Scissor Clamp Lifter is trusted by stone fabrication shops, fabricators, slab yards, and stone distributors. The stone lifting clamp can be used to move slabs of granite, marble, limestone, sandstone, onyx, porcelain, engineered stone, natural stone, and almost any other type of slab that fits in its grip range.
Features of 150 Scissor Clamp:
- Auto lock for easy release
- Long lasting, fully vulcanized rubber pads
- All natural rubber provides a better grip
- Protective rubber across the jaws prevents chipping
- Swivel eye and bow shackle included
- Replacement pads available
Abaco Scissor Clamps Comparison Chart
|
Model |
||||||
|
Length In (mm) |
21 5/16 (542) |
21 1/4 (540) |
21 5/16 (542) |
23 1/4 (590) |
22 5/8 (575) |
28 1/8 (715) |
|
Width In (mm |
7 1/16 (180) |
7 1/16 (180) |
7 1/16 (180) |
9 13/16 (250) |
9 13/16 (250) |
7 1/16 (180) |
|
Height In (mm) |
15 3/4 (400) |
15 3/4 (400) |
15 3/4 (400) |
17 5/16 (440) |
20 1/2 (520) |
18 7/8 (480) |
|
Grip Range In (mm) |
(3/8 - 3 15/16) (10 ~ 100) |
(3/8 ~ 3 15/16) (10 ~100) |
(3/8 - 3 15/16) (10 - 100) |
(1 3/16 - 5 7/8) (30 - 150) |
(5 7/8 - 13 3/4) (150 - 350) |
(7 7/8 - 15 3/4) (200 - 400) |
|
Net Weight lbs (kg) |
46.2 (21) |
46.2 (21) |
46.2 (21) |
70.4 (32) |
125.4 (51) |
103.4 (38) |
|
W.L.L. lbs (kg) |
2860 (1300) |
2860 (1300)
|
2800 (1300) |
3300 (1500) |
3520 (1600) |
2420 (1100) |
