Aardwolf Portable Gantry Crane

Original price $4,990.19 - Original price $4,990.19
Original price
$4,990.19
$4,990.19 - $4,990.19
Current price $4,990.19
SKU: AGC-1000
Finance as low as $/mo

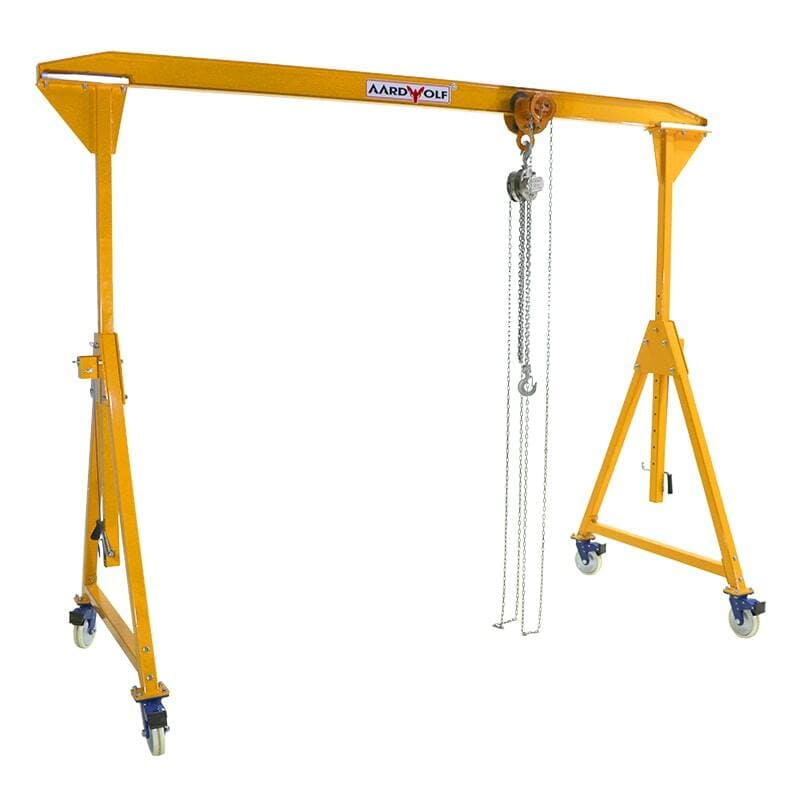

Aardwolf Portable Gantry Crane with adjustable height and span

Hoist are not included

Portable Gantry Crane AGC-1000

Product Code: AGC-1000

General

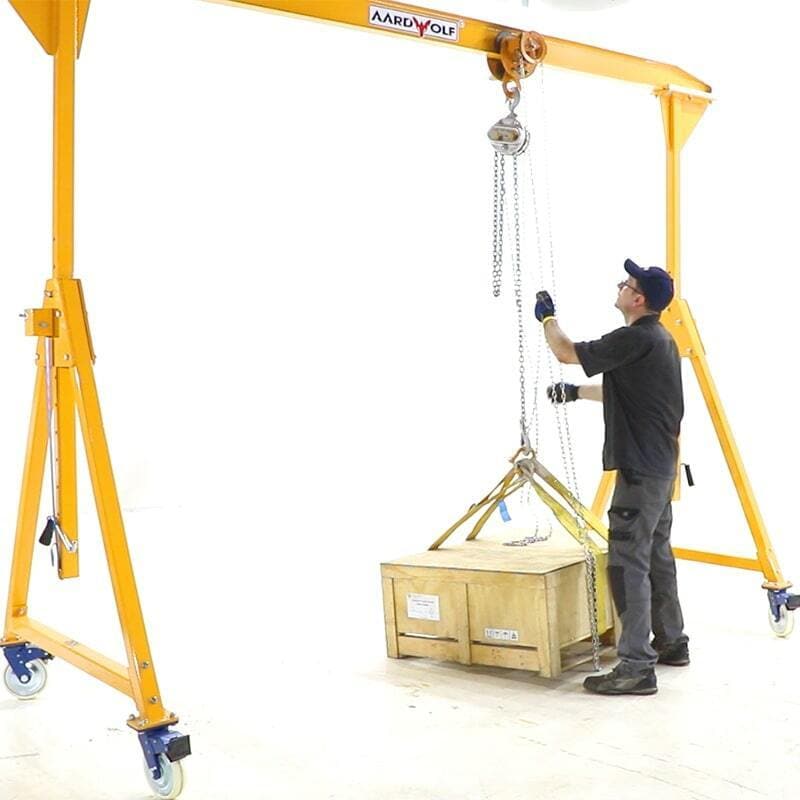

Made of aluminum, the Aardwolf Portable Gantry Crane is lightweight, portable and stable under load. No permanent installation is required. This device provides an economical lifting solution to lift materials inside the Portable Gantry Crane. This equipment can be used on construction sites as well as in factories. The Portable Gantry Crane has the ability to be adjusted in height, allowing users to use it for various purposes, such as transporting, lifting, lowering slab materials in different heavy-duty conditions. The height adjustment of the crane can be attained by using hand-wind handles supplied with the crane or by the use of a battery-powered drill.

Features

  • Portable: The Gantry Crane is able to reach all corners of the plant. Attached to lifting equipment, the crane is easy to lift heavy loads.

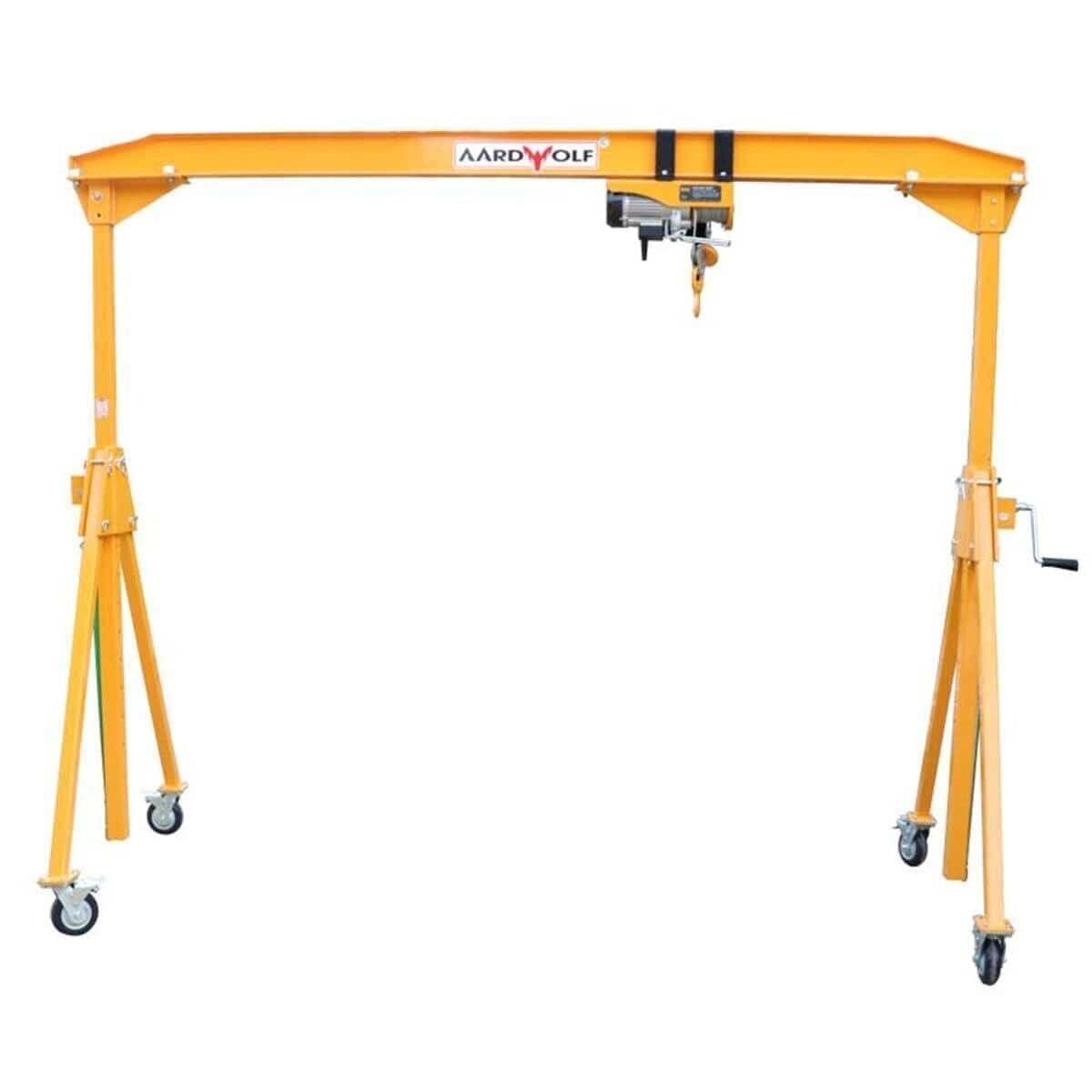

  • Adjustable: The height of the Gantry Crane is adjustable up to 3.1m. This gives operators flexibility in operation.
  • Versatile: Thanks to its ability to be easily and quickly assembled and disassembled, the Gantry Crane is easily transported or relocated, making it ideal for workflow changes.

Note: The price does not include an electric chain hoist with manual trolley.

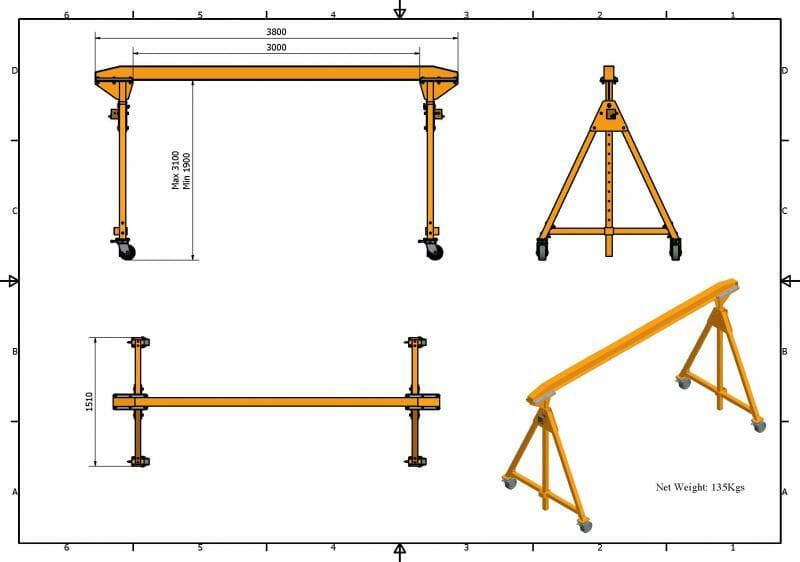

Specifications


Metric
(mm-kg)
Imperial
(inch-lb)
Maximum span 3100 122"
Working load limit 1000 2204
Net weight 190 419
Packaging dimensions

One pallet:3820x460x150

Two pallets:2560x390x90

150.4"x18"x5.9"

100.8"x15.4"x3.5"
