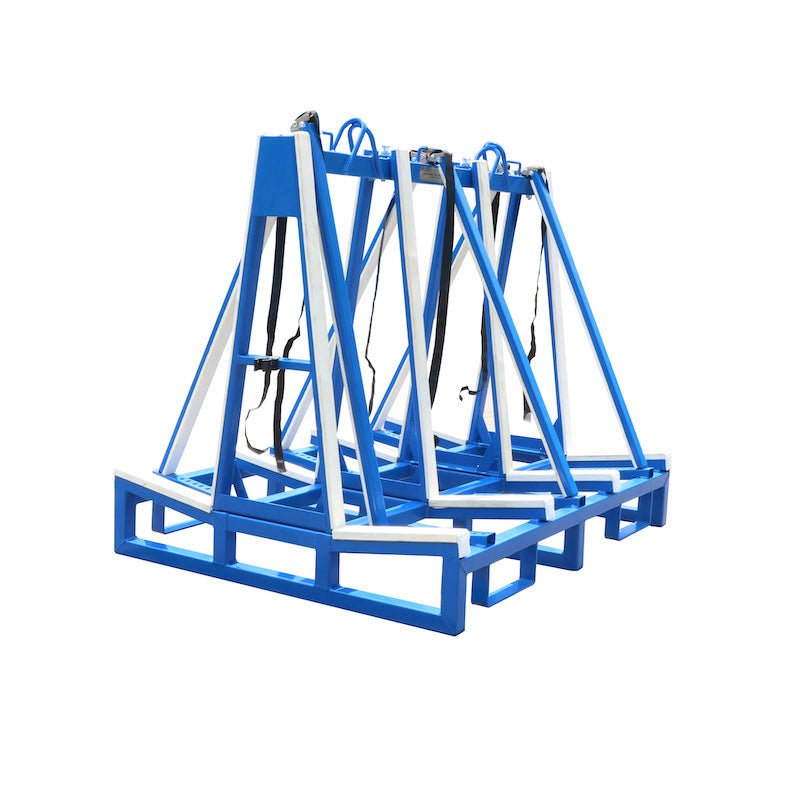

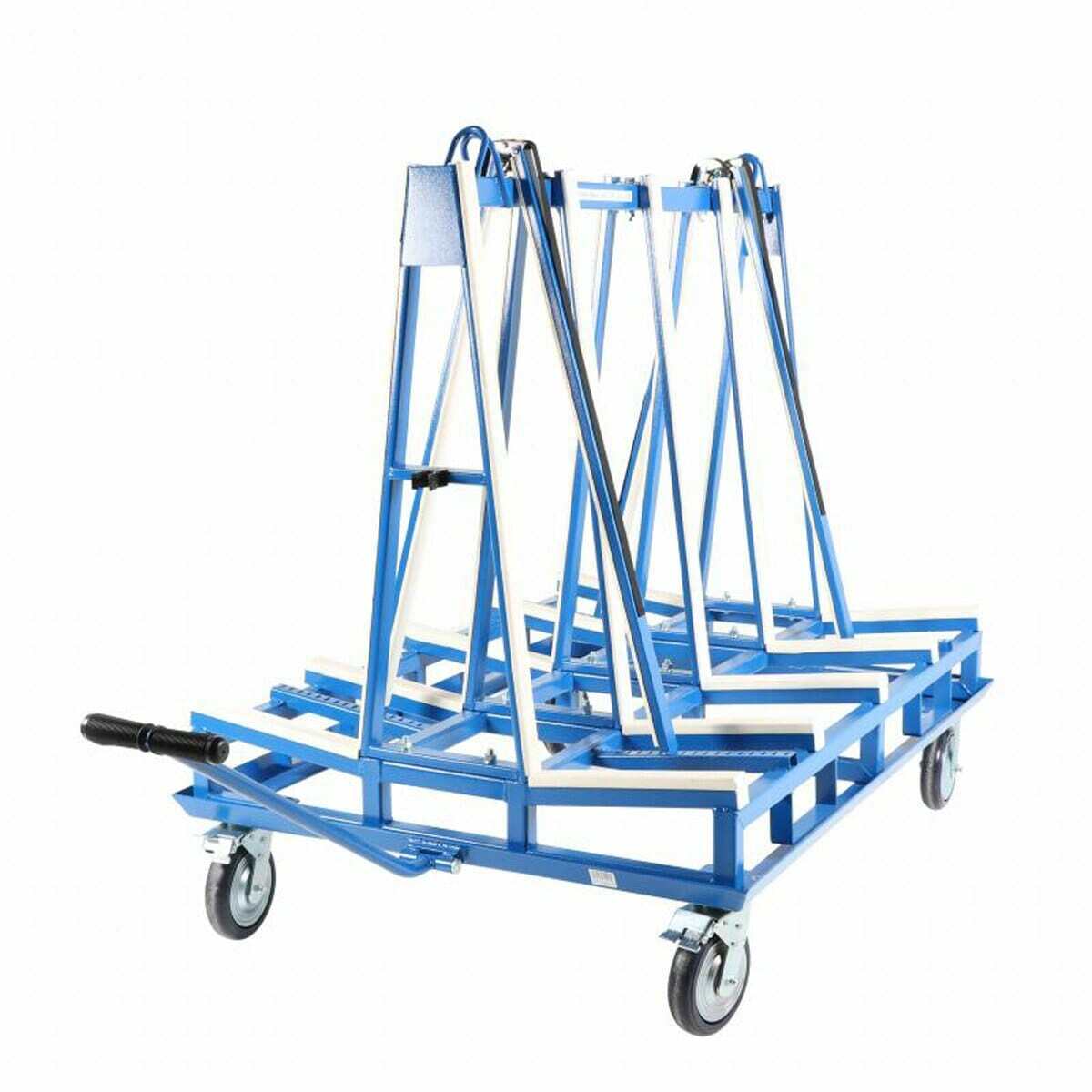

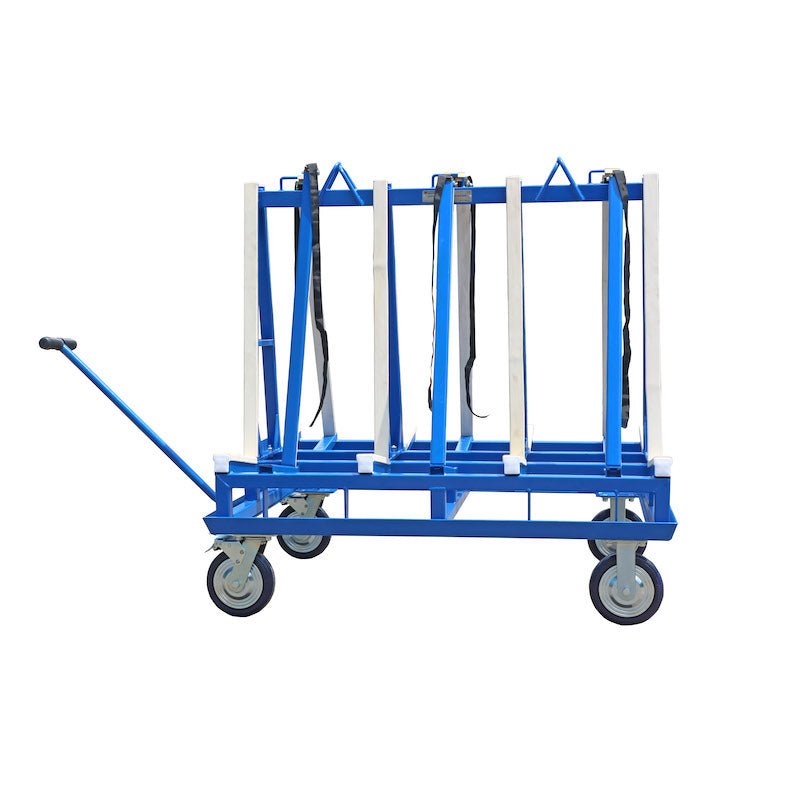

Aardwolf Demountable Frame - Mod DFF200
SKU: DFF200
For storing and transporting finished work. It is ideal for transporting and storing material within the factory or transporting material to building sites.
Often people like to have two A’ frames for one base. They will have one frame on their truck and one in the factory on the base. When the truck comes back from one job, they will remove the empty frame from the truck, place a full-frame on the truck and place the empty frame on the base ready to be reloaded. It makes sense. Frames can be loaded onto the truck with a forklift or crane.
Features
- Sturdy and safe structure for transporting materials
- Covered with a special rubber layer for protecting materials
- The frame has two hooking points to hook to an overhead crane
- Stick-out handle facilitates the transportation of materials

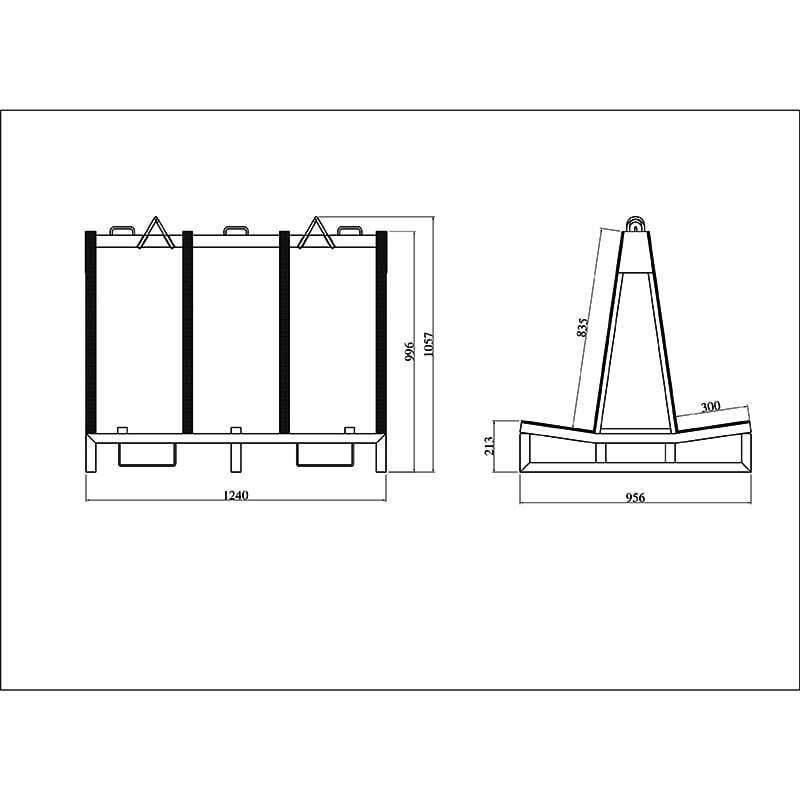

Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Width of slab storage base area on each side | 300 | 11.8" |
| Working load limit per side | 500 | 1102 |
| Total working load limit | 1000 | 2204 |
| Net weight | 102 | 225 |
| Gross weight | 103 | 227 |
| Packaging dimension | L.1300xW.1020xH.240 | L.51.2"xW.40.2"xH.9.4" |
