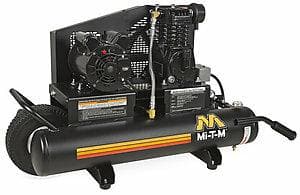

8-Gallon Single Stage Electric Air Compressor - AM1-PE15-08M
SKU: AM1-PE15-08M
The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns
Its portability makes it a great choice on many jobsites.
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor:Auto start/stop - continuous run optional · Thermal overload motor protection
Frame:Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire
Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Industrial grade pressure switch · 10-inch fly wheel · Start/stop control set at 95 to 125-PSI (Not on continuous run models)
Specifications
-
CFM @ 90 PSI
7.3
-
Horsepower/Motor
1.5 HP, 120V, 13.2A
-
Compressor
Single Stage, Cast Iron
-
Tank Size
8 gallon
-
Plug Type
NEMA 5-15P
Weights & Dimensions
-
Net Weight
170.00 lbs.
-
Shipping Weight
190.00 lbs.
-
Length
44.50 in.
-
Width
18.50 in.
-
Height
25.00 in.
