54A Jointer, 1HP 1PH 115/230V
SKU: PM9-1791279DXK

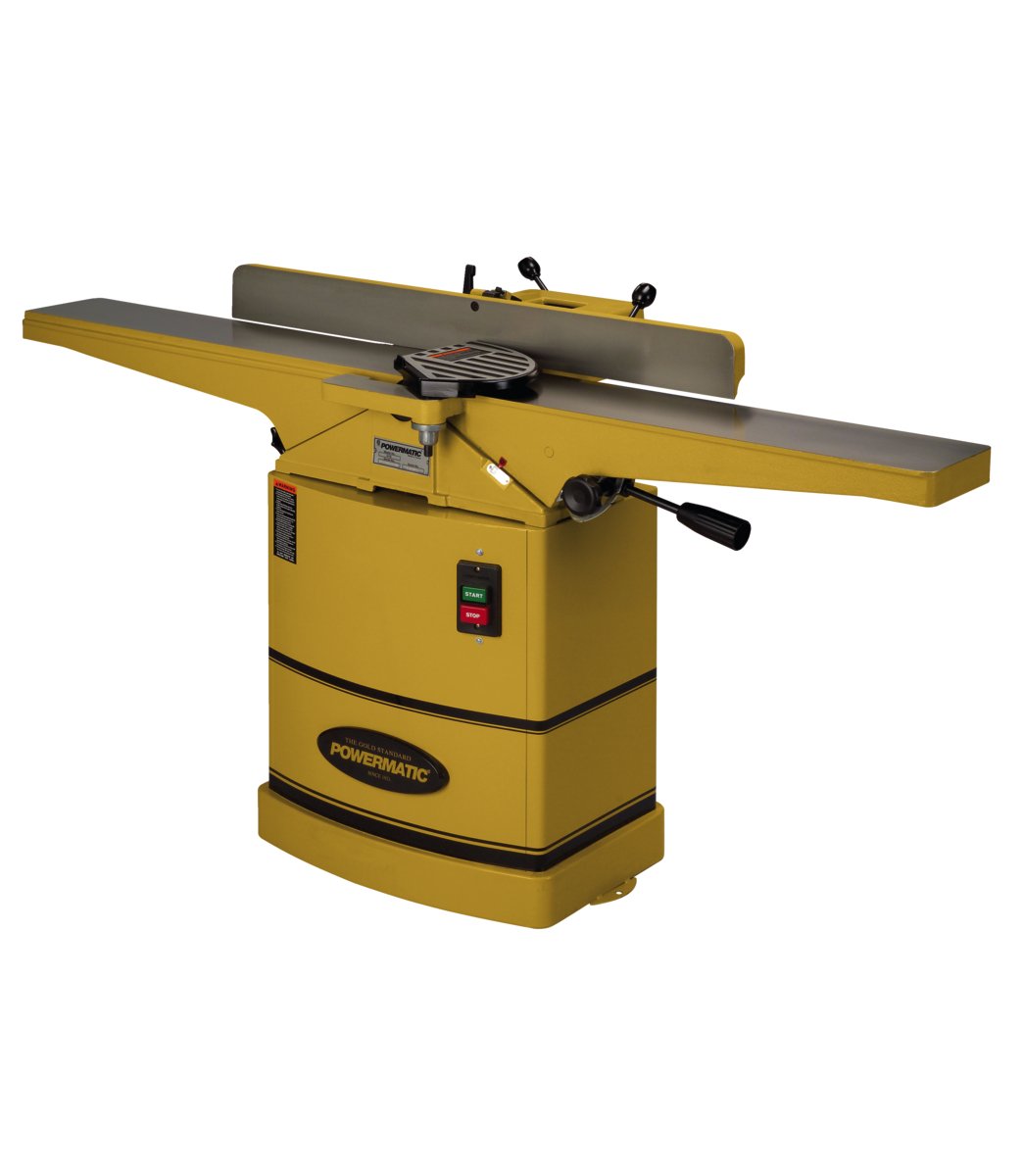

The 6" Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes.
Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
Features
- 66" long adjustable infeed and outfeed tables provide more working surface
- Built-in ledge for 1/2" rabbeting capacity
- Enlarged sheet metal stand provides a sturdy base

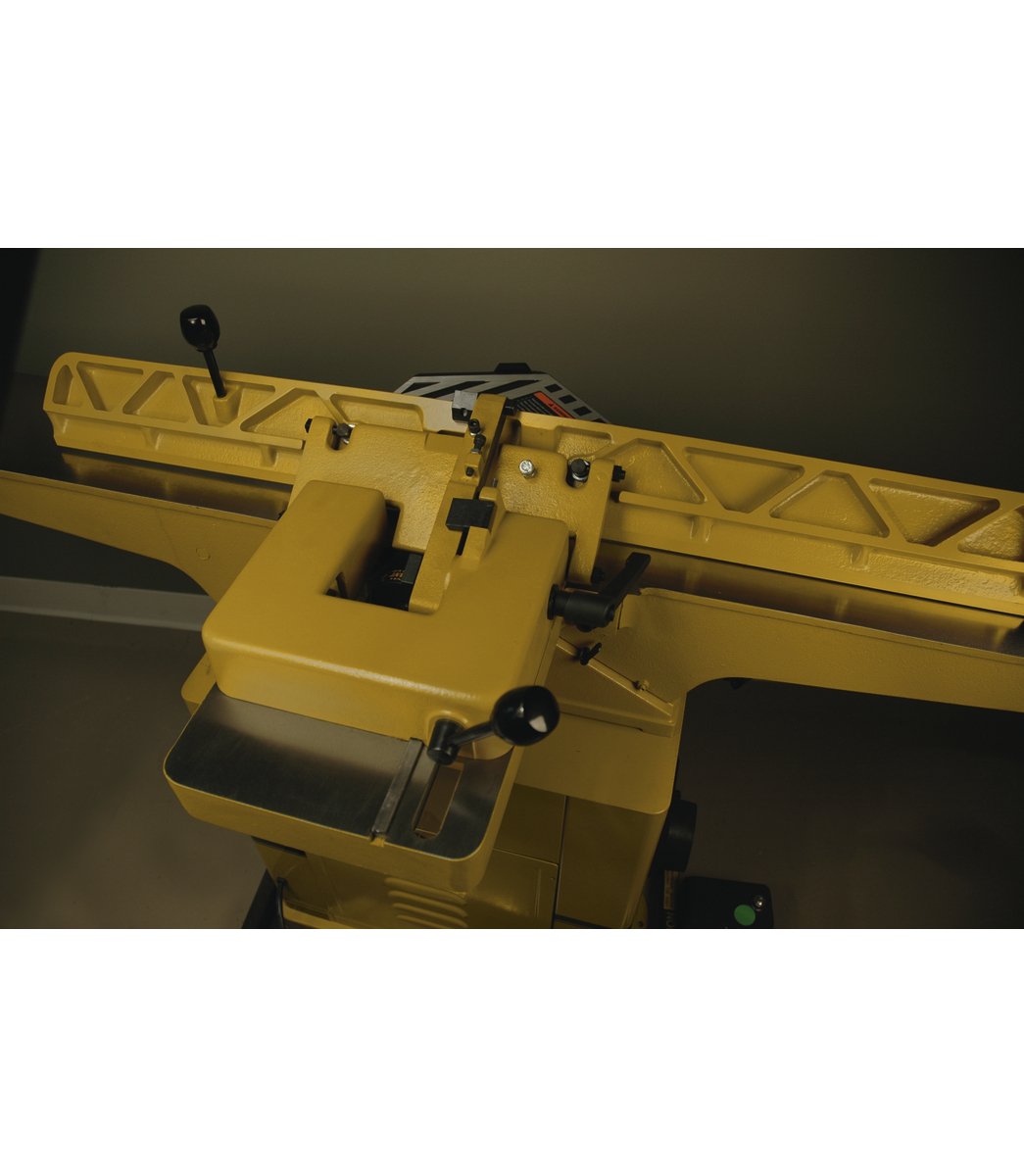

- Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
- Fence controls are center mounted for convenience
- Fine/quick adjustment lever on infeed table for precision cuts
- Push button switch is lockable to prevent accidental starting
- Cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead
Specifications
| Stock Number | 1791279DXK |
|---|---|
| Cuts Per Minute | 18,000 |
| Cutterhead Diameter (In.) | 2-1/2 |
| Cutterhead Speed (RPM) | 6000.0000 |
| Cutting Capacity (W x D) (In.) | 6 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 32-1/2 |
| Motor Amps | 13/6.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Number of Knives | 3 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Rabbeting Capacity (In.) | 1/2 |
| Type of Cutterhead | Helical Style |
