Stationary Electric Air Compressors

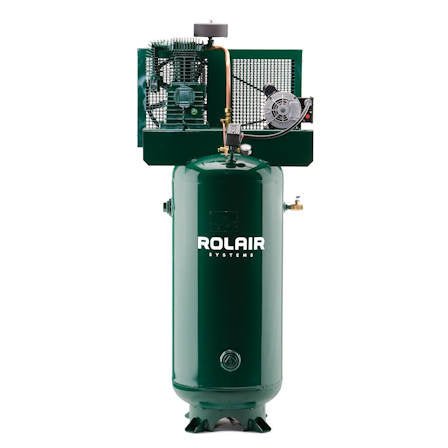

3 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model V3360K24 shown.

Optional Equipment: Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.

About The Pump

  • Two-Stage
  • Cast-Iron Cylinders
  • Aluminum Head and Crankcase for Faster Heat Dissipation
  • Ball Bearings
  • Splash Lubricated
  • Bearing Inserts on Connecting Rods
  • Swedish Lammellar Reed Valves
  • Oil Sight Gauge
  • Low RPMs to Ensure Long Life and Trouble-Free Performance

About The Motor

  • 1740 RPM
  • 60 Hz
  • Open Drip-Proof Motor

Standard Equipment

  • Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
  • Automatic Unloading Device for Loadless Starts
  • Heavy-Duty Brass Shut-Off Valve
  • Pressure Gauge, 0-300 PSI in 5 lb. Graduations
  • Safety Relief Valve - ASME Approved
  • Multiple V-Belt Drive
  • Intake Filter/Silencer with Replaceable Element
  • Totally Enclosed Steel Belt Guard

Specifications

HORSE POWER 3 HP
CFM DISPLACED 14.6 CFM @ 175 PSI
CFM DELIVERED 10.7 CFM @ 175 PSI
LUBRICATION TYPE Splash Lubrication
REED VALVE SYSTEM Yes (Standard)
NUMBER OF CYLINDERS 2
COUNTRY OF ORIGIN Compressor Origin.pdf



Additional Models

MODEL #

HP

PHASE

TANK SIZE

MOTOR RPM

CFM DISPLACED

CFM DELIVERED

H3330K24

3

Three

30 Gallons, Horizontal

1740

14.6 @ 175 PSI

10.7 @ 175 PSI

H3360K24

3

Three

60 Gallons, Horizontal

1740

14.6 @ 175 PSI

10.7 @ 175 PSI

V3360K24

3

Three

60 Gallons, Vertical

1740

14.6 @ 175 PSI

10.7 @ 175 PSI

V3380K24

3

Three

80 Gallons, Vertical

1740

14.6 @ 175 PSI

10.7 @ 175 PSI
