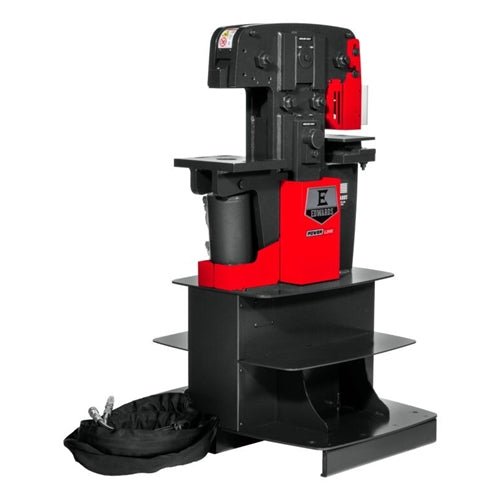

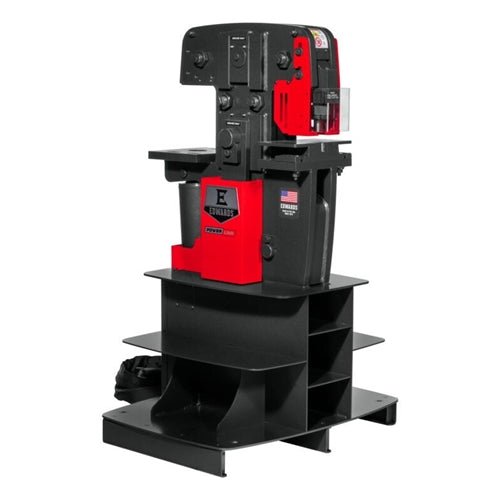

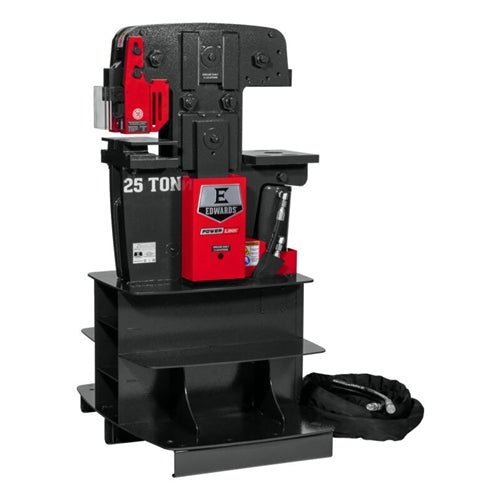

25 Ton Dual Station
SKU: ED9-HAT2500
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Product Features
- Two Available Workstations
- 9 interchangeable Attachments available to tailor the Ironworker to your needs
- 7 optional Accessories available to increase precision and efficiency
- Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrate jog control
- 20’ quick-connect hose for simple “plug & play” operation
- ANSI B11.5-1988(02) Compliant Guarding
- Durable, heavy-duty, Made In USA steel construction
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters with square, oblong, hex, metric, and custom shapes
PUNCH
Rating (tons) 25
Max Capacity (in.) 1 diam. in 5/16 mild steel
Work Height (in.) 36-3/4
Throat Depth (in.) 5-1/2
Stroke (in.) 1
OPEN STATION
Throat Depth (in.) 5-1/2
Work Height (in.) 34-3/4
GENERAL SPECIFICATIONS
Product Dimensions (.in) 25 x 34-1/2 x 51
Weight (lbs.) 836
Country of Manufacture USA
Warranty 1 Year Parts
