Rolair 1.5 - 3 Hp Single-Stage Air Compressor
SKU: H15130K17
Stationary Electric Air Compressors

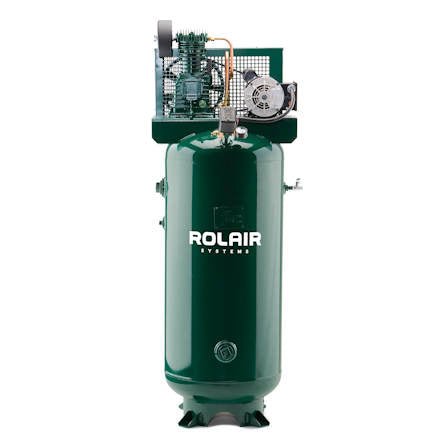

1.5 - 3 HP, single-stage electric stationary air compressors on a variety of tank configurations. Model V3160K18 shown.
Optional Equipment: Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.
About The Pump
- Single Stage
- Cast-Iron Cylinders
- Aluminum Head and Crankcase for Faster Heat Dissipation
- Ball Bearings
- Splash Lubricated
- Bearing Inserts on Connecting Rods
- Swedish Lamellar Reed Valves
- Oil Sight Gauge
- Low RPMs to Ensure Long Life and Trouble-Free Performance
About The Motor
- 1740 or 3450 RPM
- 60 Hz
- Open Drip-Proof Motor
- Single Phase Models are 230 Volt
- Three Phase Models Available in 208, 230, and 460 Volt
Standard Equipment
- Pressure Switch - Start/Stop Operation,110-135 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-200 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
Specifications
| HORSE POWER | 1.5 - 3 HP |
| CFM DISPLACED | 10.1 - 13.8 CFM @ 100 PSI |
| CFM DELIVERED | 6.9 - 11.9 CFM @ 100 PSI |
| LUBRICATION TYPE | Splash Lubrication |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
Additional Models
|
MODEL # |
HP |
PHASE |
TANK SIZE |
MOTOR RPM |
CFM DISPLACED |
CFM DELIVERED |
|
H15130K17 |
1.5 |
Single |
30 Gallons, Horizontal |
1755 |
10.1 @ 100 PSI |
6.9 @ 100 PSI |
|
V15130K17 |
1.5 |
Single |
30 Gallons, Vertical |
1755 |
10.1 @ 100 PSI |
6.9 @ 100 PSI |
|
H15160K17 |
1.5 |
Single |
60 Gallons, Horizontal |
1755 |
10.1 @ 100 PSI |
6.9 @ 100 PSI |
|
V15160K17 |
1.5 |
Single |
60 Gallons, Vertical |
1755 |
10.1 @ 100 PSI |
6.9 @ 100 PSI |
|
H2130K17 |
2 |
Single |
30 Gallons, Horizontal |
1740 |
12.5 @ 100 PSI |
8.4 @ 100 PSI |
|
V2130K17 |
2 |
Single |
30 Gallons, Vertical |
1740 |
12.5 @ 100 PSI |
8.4 @ 100 PSI |
|
H2160K17 |
2 |
Single |
60 Gallons, Horizontal |
1740 |
12.5 @ 100 PSI |
8.4 @ 100 PSI |
|
V2160K17 |
2 |
Single |
60 Gallons, Vertical |
1740 |
12.5 @ 100 PSI |
8.4 @ 100 PSI |
|
H3130K18 |
3 |
Single |
30 Gallons, Horizontal |
3450 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
V3130K18 |
3 |
Single |
30 Gallons, Vertical |
3450 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
H3160K18 |
3 |
Single |
60 Gallons, Horizontal |
3450 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
V3160K18 |
3 |
Single |
60 Gallons, Vertical |
3450 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
H3330K18 |
3 |
Three |
30 Gallons, Horizontal |
1740 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
V3330K18 |
3 |
Three |
30 Gallons, Vertical |
1740 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
H3360K18 |
3 |
Three |
60 Gallons, Horizontal |
1740 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
|
V3360K18 |
3 |
Three |
60 Gallons, Vertical |
1740 |
13.8 @ 100 PSI |
11.9 @ 100 PSI |
