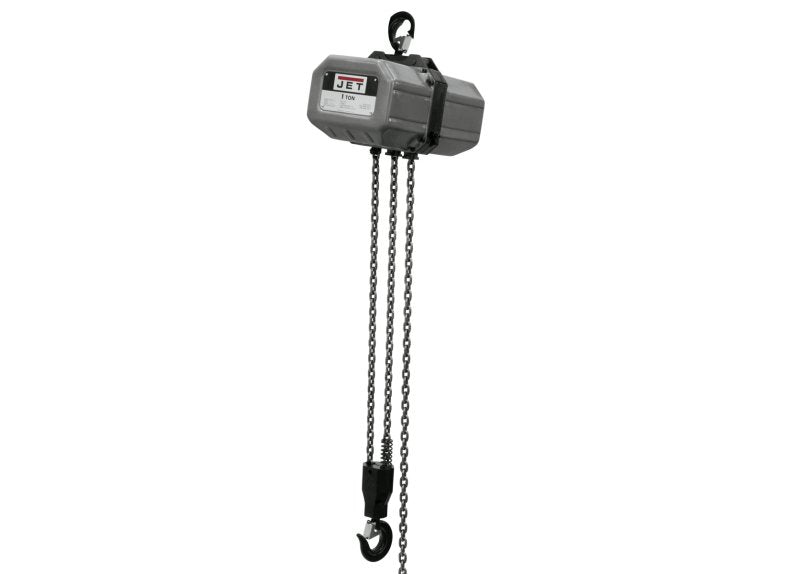

1-Ton Electric Chain Hoist 3-Phase 10' Lift | 1SS-3C-10
SKU: JT9-131000
They are available in single or three phase configurations to suit your electrical needs.
JET® SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available). Not rated or designed for outdoor use or wet environments.
Features
Specifications
| Stock Number | 131000 |
|---|---|
| Capacity (Lbs.) | 2200 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 24 |
| Load Capacity (Tons) | 1 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 18 |
| Motor (HP) | 2-1/7 HP, 460V, 3 Ph |
| Motor Phase | 3 |
| Overload Protection | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 161 |
| Headroom (In.) | 24-7/16 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 12 |
