Multiquip  |  SKU: TP24X

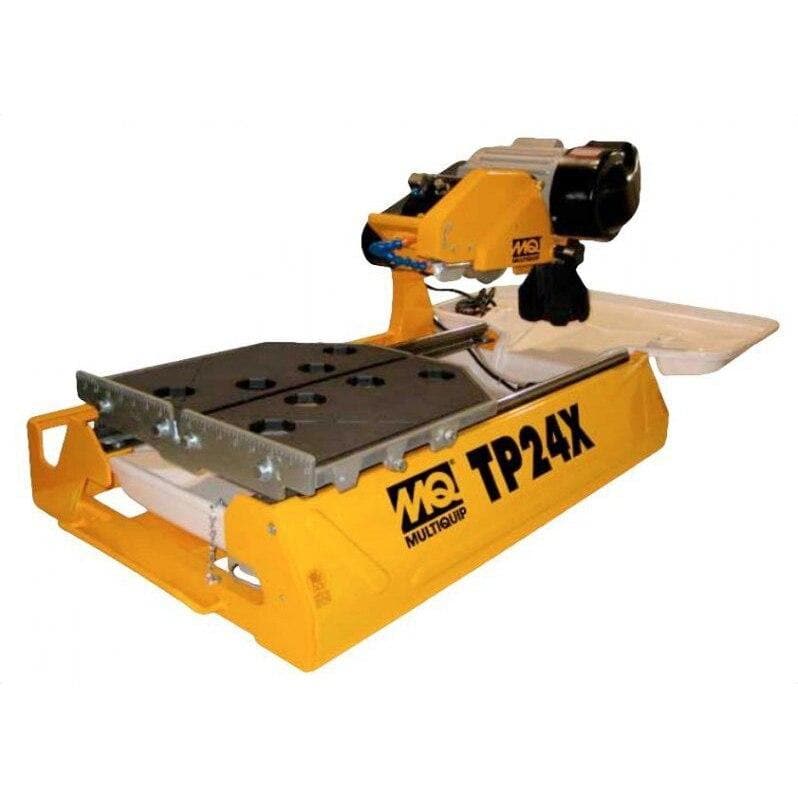

Multiquip TP24X Tile Saw

$1,61000
Shipping calculated at checkout.

Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Multiquip TP24X Wet Saw for Precision Cutting of Ceramic, Tile, Stone, and Masonry Materials

Robust design for the professional who handles large cuts on ceramic, stone or masonry materials. A sturdy precision steel frame and easy removable molded thermal water tray provide durability and longevity. An innovative water-cooled bearing assembly works in conjunction with the water pump to keep key bearing components running cooler.
  • Rugged steel frame design with handles for easy transport/storage.
  • Electric 115V/15A 60 Hz 1Ø induction motor.
  • UL/CSA approved with thermal overload and fan cover protection.
  • Sturdy ABS Water Tray.
  • Rugged die-cast aluminum table with heavy-duty injection molded rubber padding.
  • Industrial ball bearing rollers ensure smooth, precise cart movement.
  • Maintenance-free submersible water pump provides high volume water flow.
  • Heavy-cast aluminum blade guard evenly distributes water to the blade
  • Back splash tray included.
  • Premium 10-inch (254 mm) tile blade included.
  • Optional Saw Stand (TSSX) available.
  • 10 in. Blade Guard, 24 in. Straight, 18 in. Diagonal cut
Unit Specifications
Power Source 1 1/2 HP 115V/15A 60HZ
Blade Capacity 10 in
Blade RPM 3,450
Arbor Size 5/8 in
Drive System V-Belt
Cutting Depth 2 7/8 in
Straight Cut 24 in
Diagonal Cut 18 x 18 (Tile Size) in
Water Pump 115V 100GPH
Water Pan ABS
Cutting Jigs Provided

Dimensions & Weights
Overall Length 38 in 965 mm
Overall Width 23 in 584 mm
Overall Height 21 in 533 mm
Operating Weight 103 lb 47 kg

Notice: Features and equipment specifications are subject to change without notice.
