Core Drilling Equipment

Drill, Stands, and Complete Core Drill Rig Setups for drilling concrete, stone, and more

Diamond Tool Store offers core drills for construction companies of all sizes. Our diamond core drill rigs include name brands such as Husqvarna, Diamond Products, Golz, Norton, MK Diamond, Metabo, and Abaco. Our concrete core drilling equipment is designed to work with diamond core bits to core (remove cylinder of material) from concrete and stone. Diamond Tool Store carries a wide range of core drill stands, motors, and bits that are made to last and make the cut.

Core drill rigs, also known as core drilling rigs, are specialized machines used to extract cylindrical samples (cores) from various materials such as rock, soil, concrete, and asphalt. These rigs are essential in geological exploration, construction, and engineering for testing the material properties and analyzing subsurface conditions. Here are some key aspects of core drill rigs:

Components and Features

Drill Rig Frame: The structure that supports the drilling mechanism and other components. It can be mounted on trucks, trailers, or portable platforms.

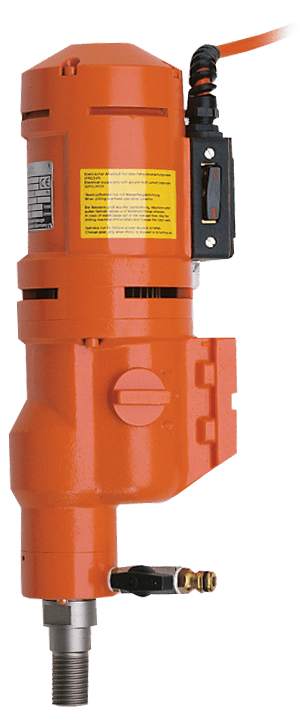

Drill Head: Houses the motor and drive mechanism that rotates the drill string and core barrel.
Core Barrel: A cylindrical tube that holds the core sample as it is being drilled. It comes in various lengths and diameters depending on the required sample size.
Drill String: A series of interconnected drill pipes that transmit rotational force from the drill head to the core barrel.
Drilling Fluid System: Circulates drilling fluid (water, mud, or air) to cool the drill bit, remove cuttings, and stabilize the borehole.
Power Source: Can be powered by diesel engines, electric motors, or hydraulics, depending on the rig type and application.
Control Panel: Allows the operator to control drilling parameters such as speed, pressure, and fluid flow.

Types of Core Drill Rigs

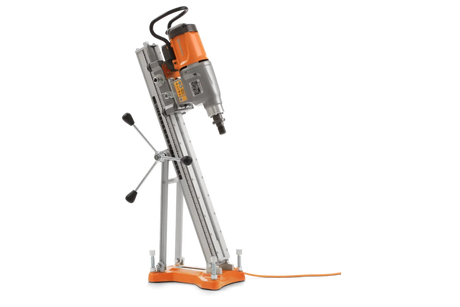

Portable Core Drill Rigs: Small, lightweight rigs that can be easily transported and set up. Ideal for shallow drilling and hard-to-reach locations.
Truck-Mounted Core Drill Rigs: Mounted on trucks or trailers, these rigs are highly mobile and suitable for a wide range of drilling depths and conditions.
Track-Mounted Core Drill Rigs: Equipped with tracks for enhanced mobility on rough terrain. Commonly used in remote or uneven sites.
Underground Core Drill Rigs: Designed for underground mining and tunneling operations. Compact and capable of drilling in confined spaces.

Applications

Geological Exploration: Extracting rock samples to study the composition, structure, and mineral content of the subsurface.
Construction and Engineering: Drilling core samples from soil, concrete, or asphalt to test material properties and inform design and construction practices.
Mining: Evaluating mineral deposits and determining the viability of mining projects.
Environmental Studies: Collecting soil and groundwater samples for environmental assessment and remediation projects.
Oil and Gas Exploration: Drilling exploratory wells to gather core samples from potential hydrocarbon reservoirs.

Advantages

Accurate Sampling: Provides intact core samples that retain the original structure and properties of the material.
Versatility: Can be used in various environments and for multiple purposes, including geological, environmental, and construction applications.
Data Collection: Enables detailed analysis of subsurface conditions, aiding in resource evaluation and project planning.

Considerations for Use

Site Preparation: Ensure the drilling site is accessible and prepared for the rig’s setup.
Drilling Depth and Diameter: Choose the appropriate rig and core barrel based on the required sample depth and diameter.
Drilling Fluid Management: Proper handling and disposal of drilling fluids to minimize environmental impact.
Core Recovery: Implement techniques to maximize core recovery and preserve sample integrity during extraction.

Safety Tips

PPE: Use appropriate personal protective equipment, including helmets, gloves, safety glasses, and hearing protection.
Training: Ensure operators are trained and experienced in using core drill rigs and handling drilling fluids.
Maintenance: Regularly maintain and inspect the rig and associated equipment to ensure safe and efficient operation.
Stability: Secure the rig to prevent tipping or shifting during drilling operations.

Core drill rigs are essential tools for obtaining precise subsurface samples, playing a critical role in various industries from geology and mining to construction and environmental science.
