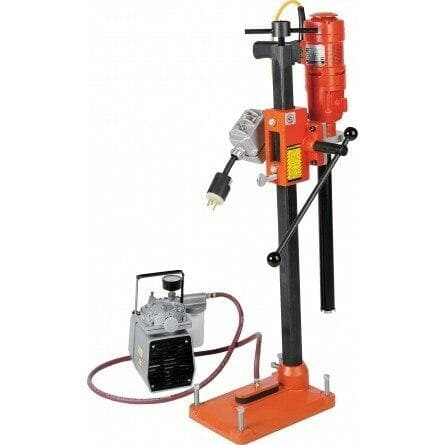

M-3 Light Weight Stair Rigs

6" Standard Bit Capacity, 3" (hand held)

Features & Benefits:

• Single switch outlet control panel with amp meter (except for CB700 models with LED amp meter)
• 1-1/2" square column (mast) with black oxidized finish
• Swivel base and mast can turn 360o for easy drilling on stairs
• 4 leveling screws on the base • Wheel kit on anchor models
• Light weight and economical
• Slide handle permits drilling in tight areas
• Compact Size for hard-to-reach drilling areas
• Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2x4 or other material)
• Weka models allow the motor to be unmounted and used hand-held

Engine/Motor Model	Motor/Engine Power	Engine/Motor Make	Motor RPM	Rig Type	Part Number	Catalog Number
DK12	14 amp, 115 volt	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4247405	01819
DK13	14 amp, 115 volt	Weka	580/1400/2900	Complete rig with add-on vacuum base and vacuum pump	4247406	87271
DK12	14 amp, 115 volt	Weka	580/1400/2900	Complete rig without vacuum pump	4247437	76919
DK12	14 amp, 115 volt	Weka	580/1400/2900	Anchor rig	4247001	01811
