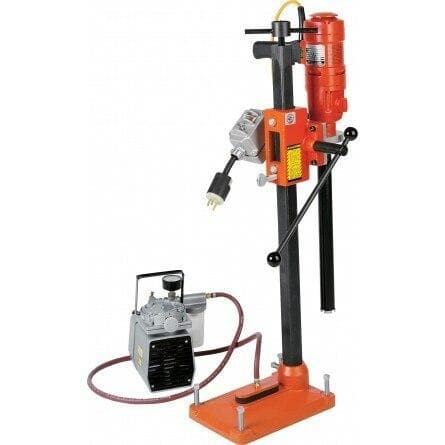

M-3 Light Weight Stair Rigs
SKU: 01819
M-3 Light Weight Stair Rigs
6" Standard Bit Capacity, 3" (hand held)
Allow You to Remove the Motor To Use in Hand-Held Applications
Allow You to Remove the Motor To Use in Hand-Held Applications
6" Standard Bit Capacity, 3" (hand held)
Features & Benefits:
- Single switch outlet control panel with amp meter (except for CB700 models with LED amp meter)
- 1-1/2" square column (mast) with black oxidized finish
- Swivel base and mast can turn 360o for easy drilling on stairs
- 4 leveling screws on the base • Wheel kit on anchor models
- Light weight and economical
- Slide handle permits drilling in tight areas
- Compact Size for hard-to-reach drilling areas
- Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2x4 or other material)
- Weka models allow the motor to be unmounted and used hand-held
Engine/Motor Model | Motor/Engine Power | Engine/Motor Make | Motor RPM | Rig Type | Part Number | Catalog Number |
---|---|---|---|---|---|---|
DK12 | 14 amp, 115 volt | Weka | 580/1400/2900 | Complete rig with add-on vacuum base and vacuum pump | 4247405 | 01819 |
DK13 | 14 amp, 115 volt | Weka | 580/1400/2900 | Complete rig with add-on vacuum base and vacuum pump | 4247406 | 87271 |
DK12 | 14 amp, 115 volt | Weka | 580/1400/2900 | Complete rig without vacuum pump | 4247437 | 76919 |
DK12 | 14 amp, 115 volt | Weka | 580/1400/2900 | Anchor rig | 4247001 | 01811 |
