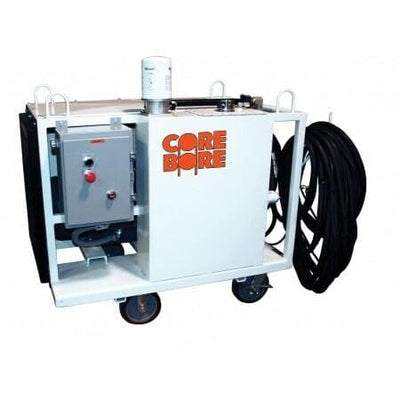

CB30EXL Electric Hydraulic Pump Unit

Electric Powered

  • Product Description
  • 30HP electric motor
  • Heavy duty frame design
  • Single lifting point
  • Large wheels for easy moving
  • Water-cooled

Specifications:

Hydraulic Flow: 0-20 gpm
Working Pressure: 2300 psi
Hydraulic Tank Capacity: 23 gallons
Flow Control: Fully adjustable
Hose: 3/4" x 60' length
Quick Disconnects: 3/4"
Dimensions: 53-1/2"L x 26-1/2"W x 39"H



Motor/Engine Power With Hose Part Number Catalog Number
30 HP 230V 3/4" x 60' hose 4250050A 04487
30 HP 460V 3/4" x 60' hose 4250050B 09534
30 HP 575V 3/4" x 60' hose 4250050C 04263
