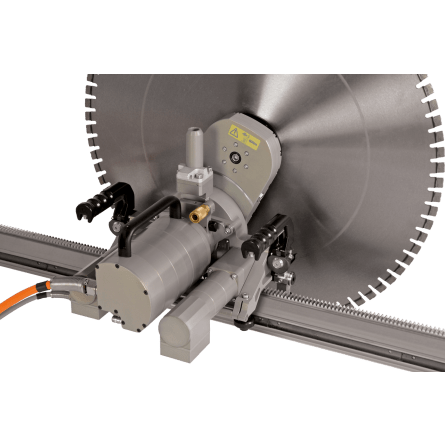

WSE1217 Wall Saw System
SKU: 41344
WSE1217 Wall Saw System
Features & Benefits:
- Significantly increased cutting performance thanks to innovative Tyrolit P2 Technology with permanent magnetic high cycle motor that runs at lower RPMs and allows for direct drive (no gear box)
- Get higher productivity and reduced service costs due to the maintenance-friendly design
- Optimize your cutting with the new automatic load sensing feed/travel mechanism and low RPM
- Lightweight and versatile
- The High Cycle Converter Can Also be Used to Power the WCE14 Wire Saw
WSE1217 Specifications:
BLADE
| Maximum cutting depth: | 22.5" |
| Maximum blade capacity: | 54" |
| Maximum starter blade size: | 32" |
| Blade mount: | Quick-release flange |
DESIGN
- Infinitely adjustable swivel arm rotates 360°
- 2 carrying handles with locking function
MOTOR
- Water cooled high frequency motor without gearbox
- Output at 32 amp 17 kW, 22.79 horsepower
POWER PACK/INVERTER INPUT
| Voltage: | 460 Volt |
| Frequency: | 50Hz/60Hz |
| Output Frequency: | 400 Hz |
WEIGHT
| Wall Saw WSE1217 including feed motors-without main drive blade motor: | 56 lbs. |
| Electric main blade motor only: | 36 lbs. |
| MINIMUM GENERATOR SIZE REQUIREMENT: | 30kW |
- Electric Power Pack and Radio Remote Control
- Part # 3401431, Cat # 42996 $35,255
- (Included with WSE1217 complete system)
- **Not Included with package: Part# 340255, Part# 3402551**
