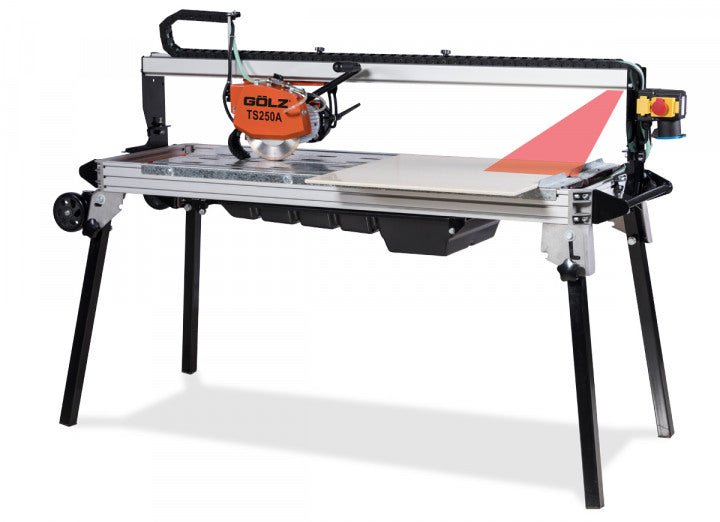

TS250A Professional Aluminum Tile Saw
SKU: TS250A
BladeØ 250 mm (10”) Cutting length 1300 mm (51”)
- Incl. Laser cutting device
- Cutting head adjustable up to 45° (Jolly cutting)
- Removable water tub, easy for cleaning
- Foldable legs
- Electric water pump with quick coupling, easy for changing the pump
- Removable cutting table, easy for cleaning
- Angle stop
- Tool-free cutting head interlocksystem
- Transport handle and wheels for easy moving and loading
- Ball bearing and retractable cutting head
Specifications
| Motor | Electric, 230V, 50Hz, IP54 | Electric, 115V, 50Hz, IP54 | |
| Power | 1,3 KW | ||
| Max. cutting depth | 65 mm(2,5”) | ||
| Max. blade size | 250 mm(10”) | ||
| Arbor hole | 5/8" |
||
| Cutting length | 1200 mm (1300 mm)/47” (51”) | ||
| Shaft speed | 2.800 min-1 | ||
| 45° miter-cut | Built-In | ||
| Water pump | S2, 230 V, 50 Hz, 55 Watt | ||
| Blade flange size ø | 60 mm | ||
| Transport wheels | yes | ||
| Cutting table (LxW) | 1300 × 490 mm | ||
| Dimensions (LxWxH) | 1640×540×1299 mm | ||
| Weight | 72 kg (158lbs) | ||
| Order-Nr. | 0289 250 1100 | 0289 250 1200 |
| Accessories | ||
| Side table (500×600mm) | 0289 250 9017 | |
| Spare water pump with connector plug | 0289 400 9002 | |
| T-Lock-System (Tile Locking System) | 0289 250 9018 | |
| Side tile support 1m/39,4” | 0289 250 9019 |
