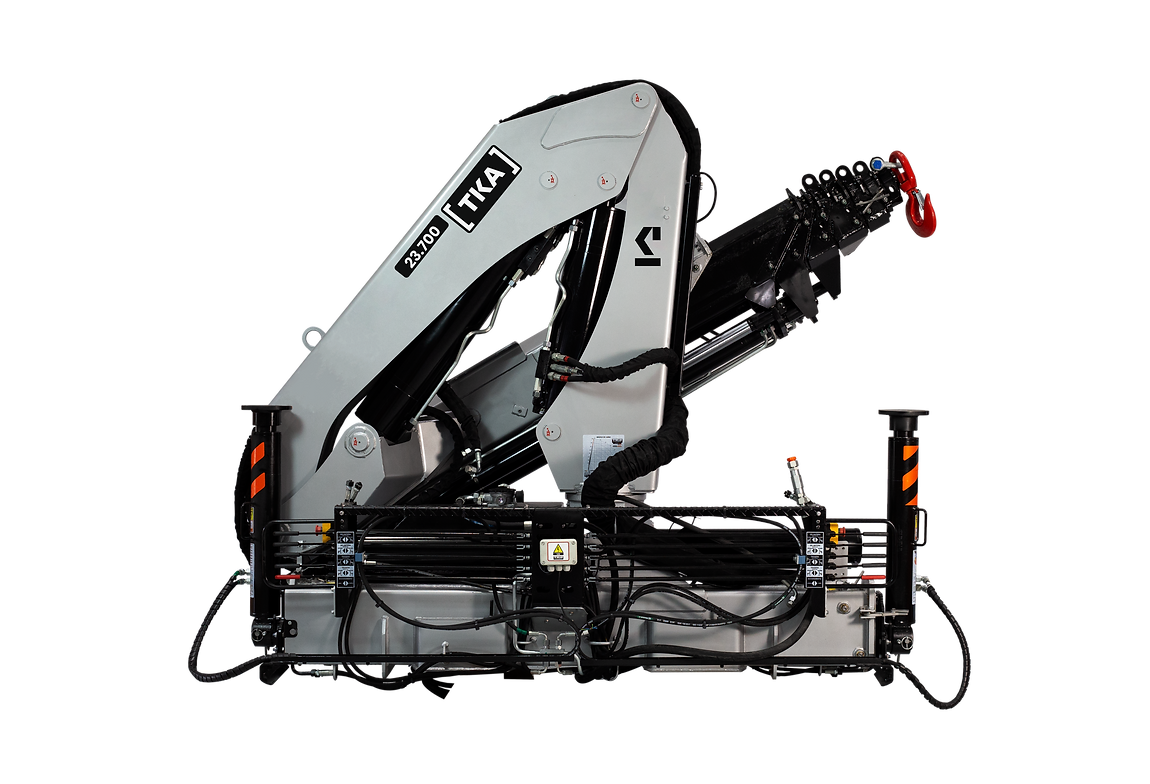

TKA Cranes 23.700 C EX 5 Hydraulic Knuckle Boom

SKU# TKA 23.700 C EX 5H0M
$69,76190
Shipping calculated at checkout.

Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Finance this product with NewLane Logo

Apply Now

Finance this product with PEAC Solutions Logo

Apply Now

Unsure which financing plan suits you? Discover your options here.

Technical specifications for this crane model are listed below.

Available Accessories

  • Gear Pump
  • Piston pump
  • Oil Radiator
  • Manual Pump (for basket safety use)
  • Emergency Stop for Cranes Without Remote Control
  • Electrical Load Limiter + Iclinometer + Load Limiter light indicator + load sound indication, for cranes with remote Control
  • Hydraulic Load Limiter
  • Remote Control with 06 leavers (4+2 extras) + emergency stop
  • Remote Control Scanreco With 06 leavers + emergency stop
  • Mining Kit (Remote Control. Emergency Stop. Load Limiter. Truck Inclinometer. Blocked work over truck cabine)
  • Remote control stabilizer drive kit for cranes with mining kit
  • Truck Inclinometer for Cranes Without Remote Control
  • Winch with 1.5 ton capacity with upper and lower pulleys
  • Fixed Rear Stabilizers 8.5ft
  • Rear stabilizer with 11.8ft manual opening
  • Rear stabilizer with 11.8ft opening
  • Drill or Winch hydraulic Outlet
  • Drill AND Winch hydraulic Outlet
Specification Metric Imperial
Max. Manual Vertical Reach 21,5 m 70.5 ft
Max. Hydraulic Vertical Reach 18,2 m 59.7 ft
Max. Manual Horizontal Reach 17,3 m 56.8 ft
Max. Hydraulic Horizontal Reach 14,0 m 45.9 ft
Stabilizer Spread (Front) 5,9 m 19.4 ft
Boom Elevation Angle 81° 81°
Max. Operating Pressure 275 bar 3,988 psi
Boom Slewing Angle 400° 400°
Slewing Torque 3,25 tf·m 23,515 lbf·ft
Dead Weight (3H0M / 4H0M) 2.660 kg / 2.800 kg 5,864 lbs / 6,173 lbs
Dead Weight (5H0M / 5H1M / 5H2M) 2.925 kg / 2.970 kg / 3.010 kg 6,448 lbs / 6,548 lbs / 6,636 lbs
Fitting Space Required 1,4 m 4.6 ft
Oil Tank Capacity 100 L 26.4 gal
Minimum GVW Required 16.000 kg 35,274 lbs
