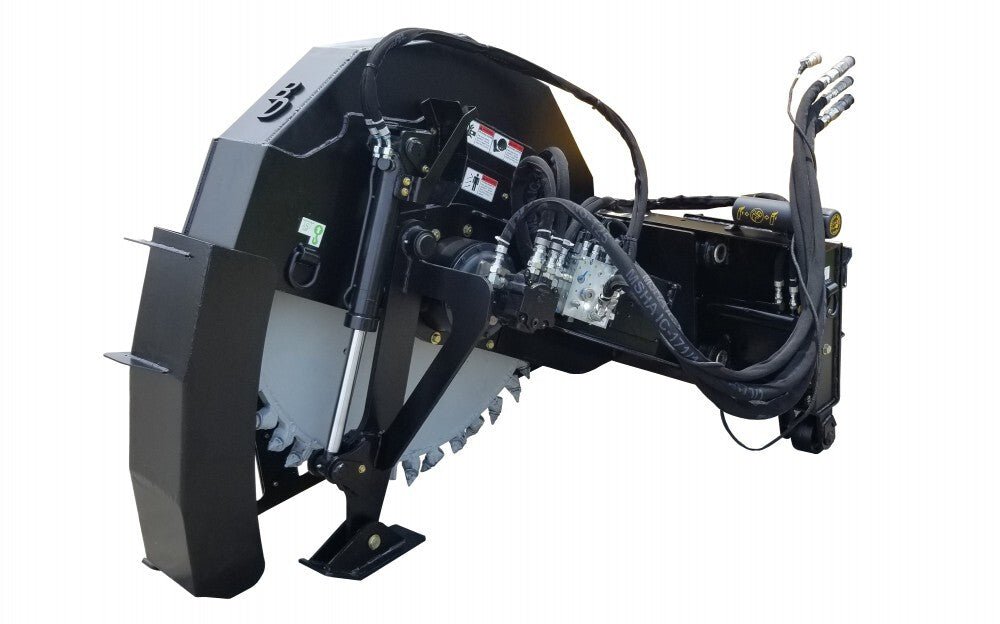

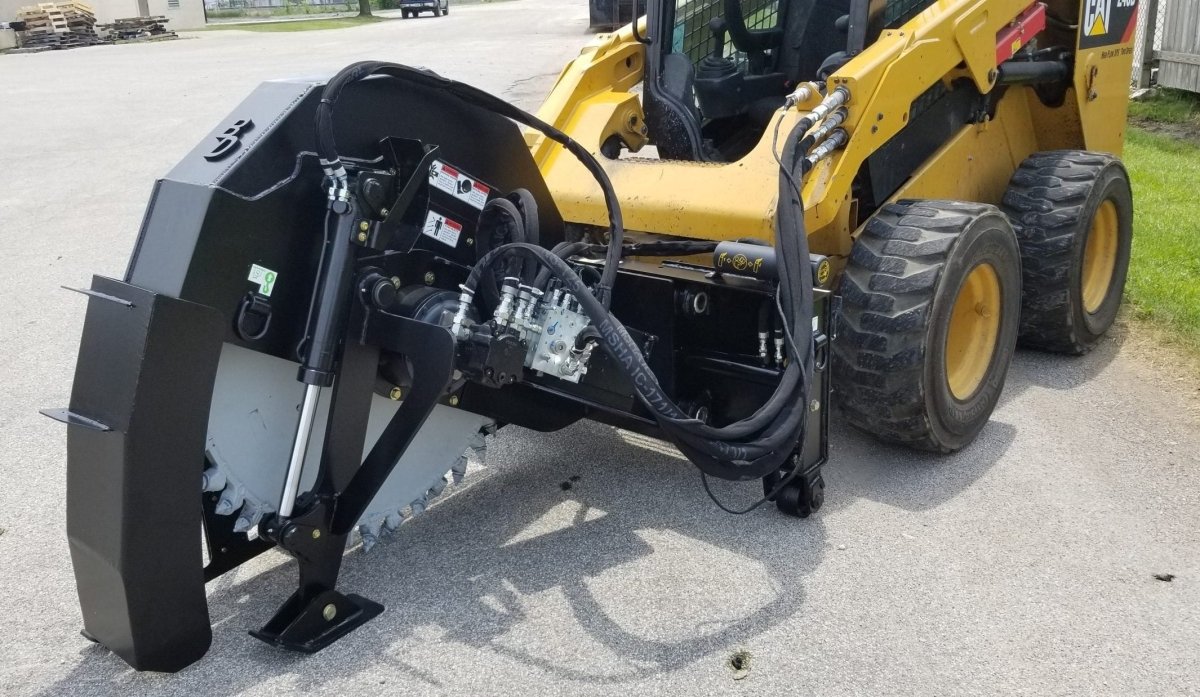

Skid Steer Road Saw
SKU: 161000-HP
Blue Diamond® high flow road saws offer high rates of production at a substantially lower cost than smaller, self-propelled wheel saws.
Our high flow skid steer road saws are offered in cutting depths up to 10- or 18-inches! All feature planetary reduction drives, which efficiently provide maximum cutting torque under load. All saws utilize a ground-engaging frame, which provides accurate depth of cut control. This means the frame is in contact with the ground during the cutting operation, and the cutting wheel moves up and down within this frame, giving the operator the ability to maintain control of the cut.
FEATURES INCLUDE:
- Hydraulic Cutting Depth: 10in Model = 0 to 10 inches; 18in Model = 0 to 18 inches
- Hydraulic Sideshift: 0 to 26 inches
- Available Cutting Wheels: 10in Model = 2.5 & 4.5 inch, 18in Model = 3.0, 4.5 & 6.0- inch
- Requires High Flow Hydraulics at a minimum of 30 GPM at 2,500 PSI
| PART NUMBER | MODEL | WEIGHT |
|---|---|---|
| 161000-HP | 10" Cut Depth, Road Saw (Req Cutting Wheel) | 1,200 lbs. |
| 161005-HP | 18" Cut Depth, Road Saw (Req Cutting Wheel) | 2,000 lbs. |
| 161505 | 10" Depth X 2.5"W Cutting Wheel | 127 lbs. |
| 161510 | 10" Depth X 4.5"W Cutting Wheel | 165 lbs. |
| 161530 | 18" Depth X 3"W Cutting Wheel | 372 lbs. |
| 161533 | 18" Depth X 4.5"W Cutting Wheel | 426 lbs. |
| 161535 | 18" Depth X 6"W Cutting Wheel | 481 lbs. |
| MODEL | MIN GPM/PSI | CUT WIDTH | CUT DEPTH | SIDESHIFT | MAX TORQUE | OVERALL HEIGHT | OVERALL WIDTH |
|---|---|---|---|---|---|---|---|
| 161000-HP | 27/2750 | 2.5", 4.5" | 0" - 10" | 26" | – | – | 66" |
| 161005-HP | 32/3000 | 3", 4.5", 6" | 0" - 18" | 26" | 4500 lb./ft | 60" | 66" |
