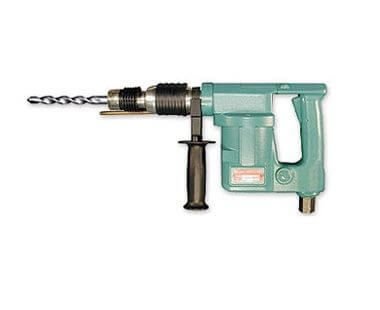

SDS Plus Pneumatic Rotary Hammer Drills 2 2404 0010
SKU: 2 2404 0010
1" BIT CAPACITY FOR CONCRETE AND MASONRY
- Safety clutch protects against overloading and jamming
- Hammer drill holes in concrete, brick and masonry
- Rotary drilling mode for straight drilling of steel and wood
Air SDS Plus - Hammer and Drill
Drill concrete anchor holes, through holes, piping and mechanical openings for construction and repair work. Switches to rotary drilling mode for steel and wood.
- Up to 1" dia. holes with Solid Carbide Tipped Bits
- Up to 3" dia. holes with Carbide Core Bits
- A special water flushing attachment is included for suppression of sparks and dust
- Holes cost less with SDS Bits
- Water hook-up at depth gauge to help protect against bit sparking
- Maintenance-free gearhead (permanent lubrication and sealed gears)
- Built-in oiler for air motor
Specs
| Blows/Minute (BPM) | 0-3000 |
|---|---|
| Drill Speed RPM | 0-625 |
| Power at 90 PSI | 0.7 HP |
| Tool System | SDS Plus |
| Air Consumption at 90 PSI | 21 CFM |
| Hole Capacity (Solid Bit - Concrete) | 1" dia. |
| Hole Capacity (Core Bit - Concrete) | 3" dia. |
| Twist Drill (Wood) | 3/4" dia. |
| Weight | 11 lbs. |
| ATEX Classification: | EX II 2Gc T6 |
| Dimensions | 16" x 8-1/2" x 4" |
