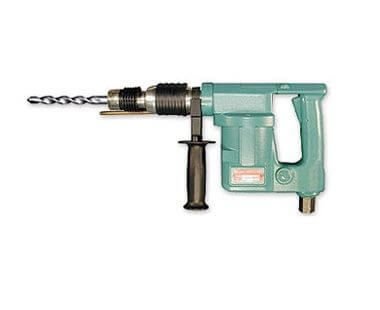

SDS Plus Pneumatic Rotary Hammer Drill 2 2404 0030
SKU: 2 2404 0030
3" BIT CAPACITY FOR CONCRETE AND MASONRY
Our Pneumatic Rotary Hammer Drills include the following features:
- Safety clutch protects against overloading and jamming
- Hammer drill holes in concrete, brick and masonry
- Rotary drilling mode for straight drilling of steel and wood
SDS Plus - Air Rotary Hammer Drill. Model 2 2404 0030 Designed for Underwater Use
Drill concrete anchor holes, through holes, piping and mechanical openings for construction and repair work. Switches to rotary drilling mode for steel and wood.
- Up to 1" dia. holes with Solid Carbide Tipped Bits
- Up to 3" dia. holes with Carbide Core Bits
- Holes cost less with SDS Bits
- Water hook-up at depth gauge to help protect against bit sparking
- Maintenance-free gearhead (permanent lubrication and sealed gears)
- Built-in oiler for air motor
Specs
| Blows/ Minute (BPM) | Drill Speed (RPM) | Power at 90 PSI | Air Consumption at 90 PSI | Tool System | Dimensions | Weight |
|---|---|---|---|---|---|---|
| 0-3000 | 0-625 | 0.7 HP | 21 CFM | SDS Plus | 16" x 8-1/2" x 4" | 11 lbs. |
| Solid Bit (Concrete) | Core Bit (Concrete) | Twist Drill (Wood) |
|---|---|---|
| 1" dia. | 3" dia. | 3/4" dia. |
| * Underwater model - Optional underwater air tool line conditioner to displace moisture. Developed to inhibit rust and corrosion of air motors. 1 quart/liter. |
