Pneumatic Drive Units

HIGH TORQUE AND SLOW SPEED DRIVE UNITS FOR SPECIAL DRIVING AND TAPPING APPLICATIONS, INCLUDING HOT TAPPING PIPE

High-Torque Drive Units

High torque and slow speed
Ideal for special driving and tapping applications, including hot tapping pipe

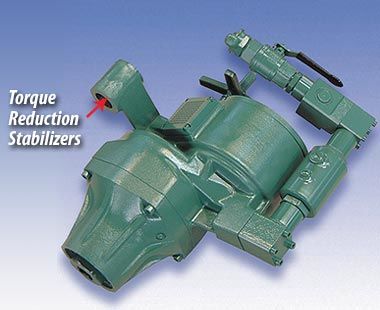

Integrated torque reaction stabilizers
Air Connection = 1" NPT      Hose ID = 1"

Model No.	Square Drive	Stall Torque at 90 PSI (ft-lbs.)	Free Speed (RPM)	Load Speed (RPM)	Power (HP)	CFM at 90 PS	Side to Center Distance (inches)	Side to Center Distance (inches)
2 2804 0010	1-1/8" F	1327	40	20	5	141	3.6	82
