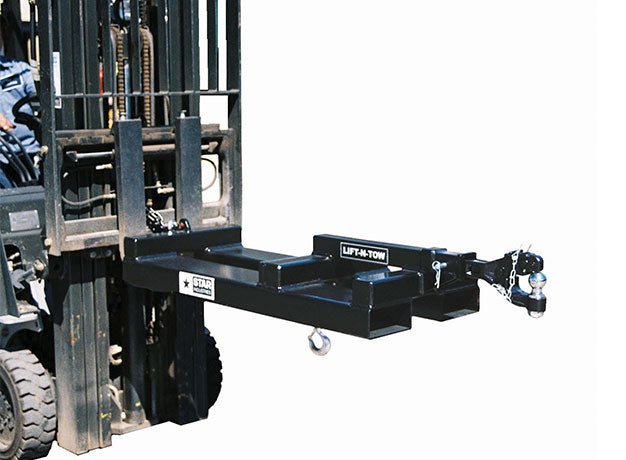

Lift-N-Tow
SKU: 1390B
Build to Order with an Extended (Multi-Week) Lead Time

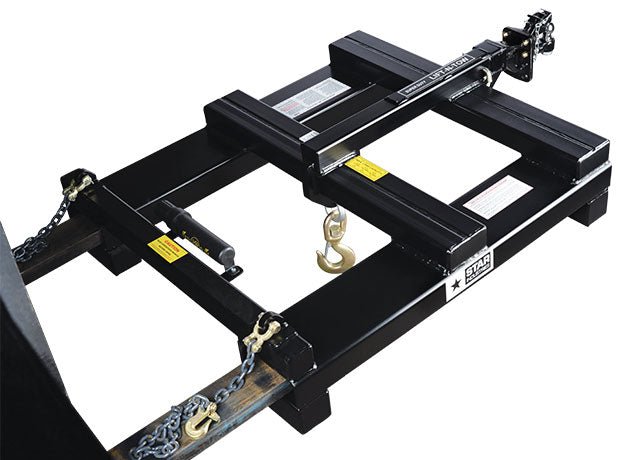

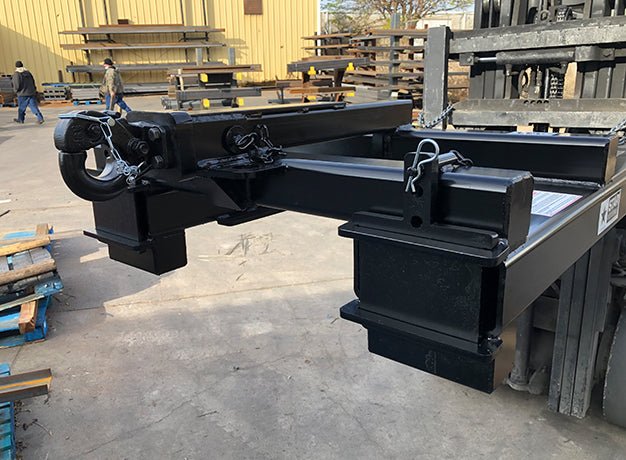

Safely lift, load & tow with your forklift

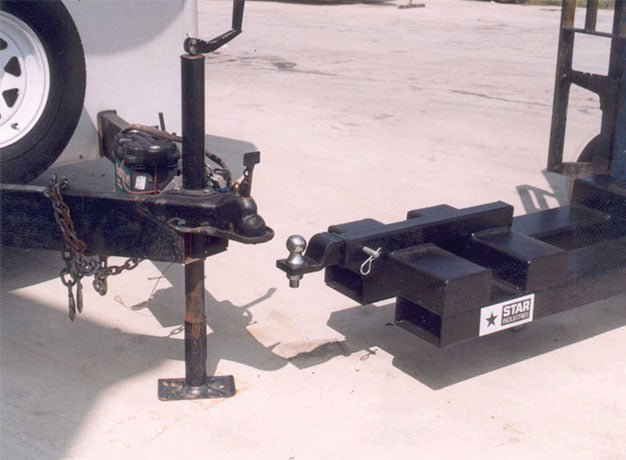

Don’t risk an OSHA citation. Star Industries Lift-N-Tow is the safe and easy way to lift, load and tow with your forklift. Simply slip over the forks and swap between ball, pintle and combination hitches to lift and tow all types of loads weighing up to a massive 10,000 lbs for the standard Lift-N-Tow, a massive 16,000 lbs towing weight for the Super Duty Lift-N-Tow and 30,000 lb with the Navy Lift-N-Tow.
Lift-N-Tow
- Universal ‘slip on forks’ style

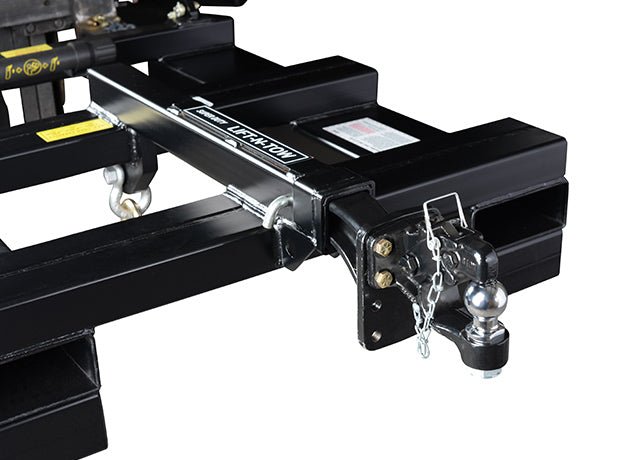

- Easily swap between ball, pintle and combination hitches
- Rugged heavy-duty construction for increased durability and long life

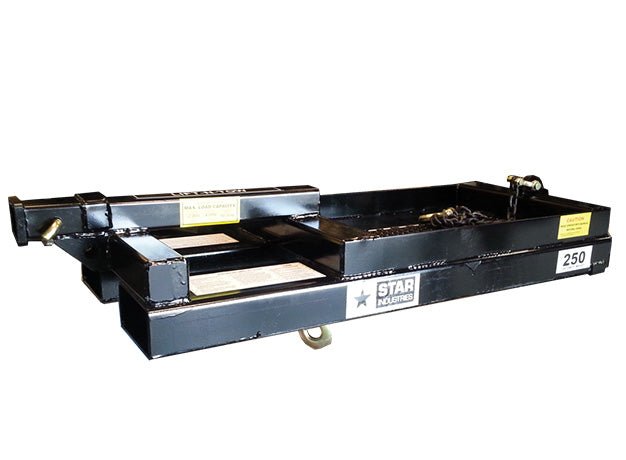

- Includes convenient tool tray on 1390B
| Model | Accepts forks | Max Lift Capacity on Swivel Hook | Max Lift Capacity on Receiver Jib | Max Gross Towing Weight | Weight (w/o Hitch Adaptor) | Fork Size |
Center-to-center of Fork Opening |
Pocket Ends | |
|---|---|---|---|---|---|---|---|---|---|
| Lift-N-Tow | 1390B | 6” w x 2 ¾” thick |
4,000 lbs | 2,000 lbs | 10,000 lbs | 220 lbs | 48” long x 6 ¾ x 3” ID | 13 ¼” | Open |
| Super Duty Lift-N-Tow | 1395B | 8” w x 2 ¾” thick |
10,000 lbs | 3,000 lbs | 16,000 lbs | 400 lbs | 48” long x 8 ¾ x 3” ID | 34 ¾” | Open |

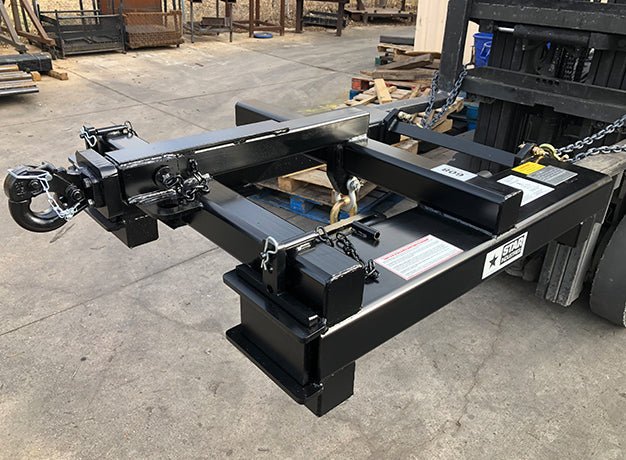

| Navy Lift-N-Tow | 1396C | 8″ w x 2 ¾” thick |
12,000 lb | 6,000 lbs | 30,000 lbs | 505 lbs | 48” long x 8 ¾ x 3” ID |
34 ¾” | Open |
Lift-N-Tow & Hitches sold separately.
Hitch Adapters
| Model | For Lift-N-Tow Model | Style of Adapter | Max Vertical Lift | Max Gross Towing Weight | Horizontal Center of Gravity | Weight (Adapter Only) |
|---|---|---|---|---|---|---|
| 1391 |
1390B |
2” Ball | 600 lbs | 10,000 lbs | 28” |
10 lbs |
| 1392 |
1390B |
Pintle | 2,000 lbs | 10,000 lbs | 29” |
15 lbs |
| 1393 |
1390B |
Combo | 2,000 lbs | 10,000 lbs | 30” |
20 lbs |
| 1394PH |
1395B |
Pintle | 3,000 lbs | 16,000 lbs | 29” |
21 lbs |
| 1394CH |
1395B |
Combo | 3,000 lbs | 16,000 lbs | 30” |
25 lbs |
Note: Pintle Hitch included with model 1396C Navy Lift-N-Tow

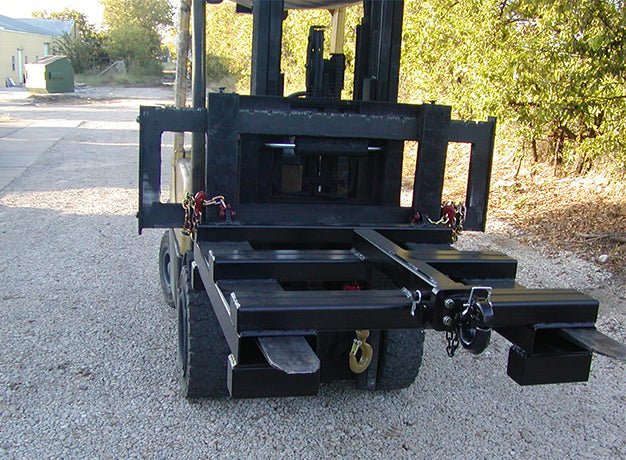

Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.
Hitches
A hitch is required for the Lift n Tow. Hitches sold separately - see specifications tab for more details.

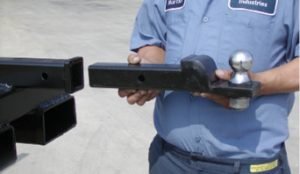

Adapter with 2" Ball Model 1391

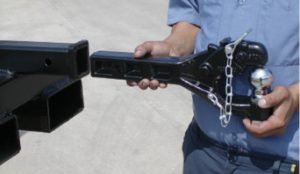

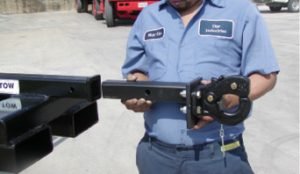

Adapter with Pintle Hitch Model 1392/1394PH
