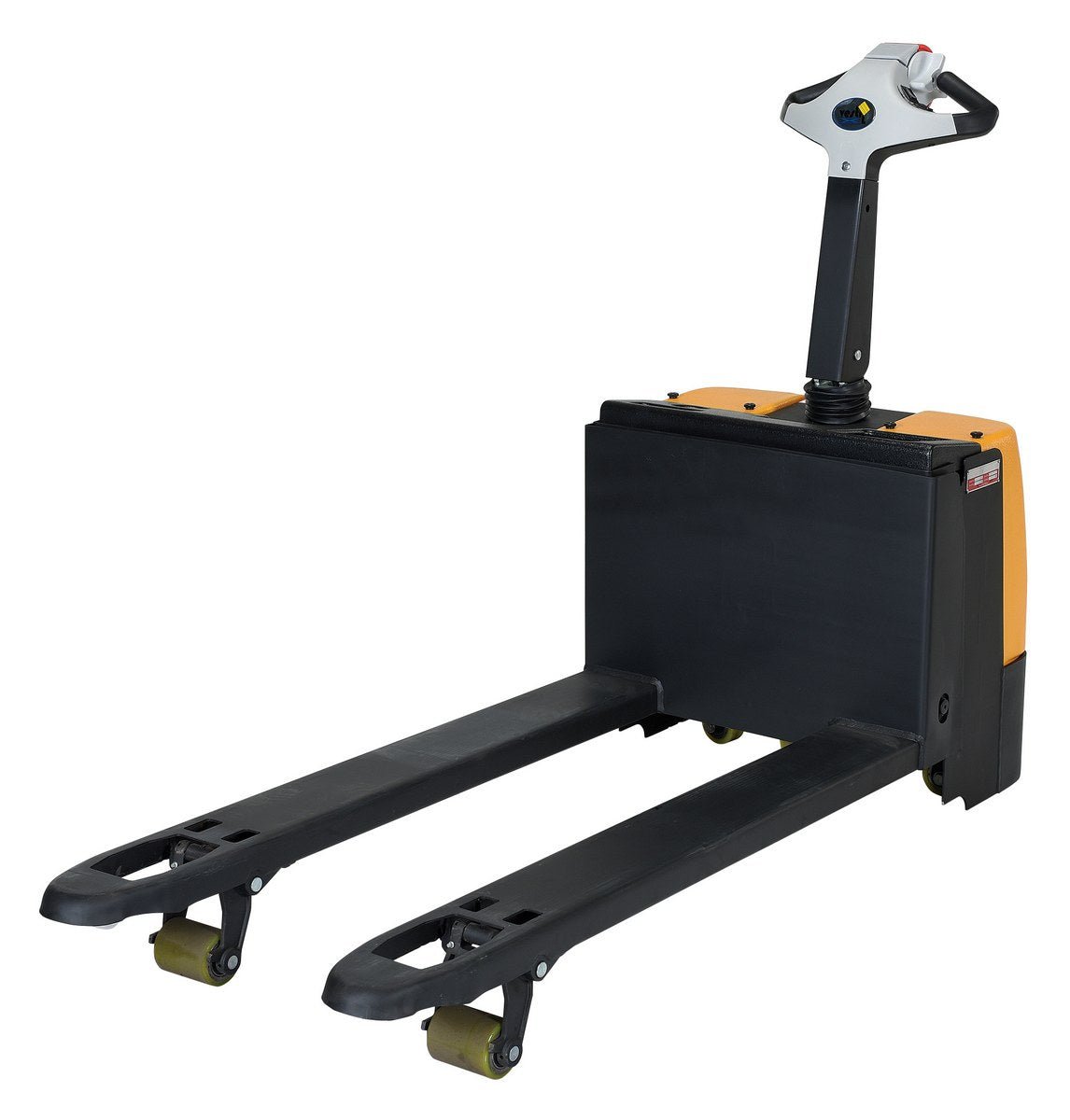

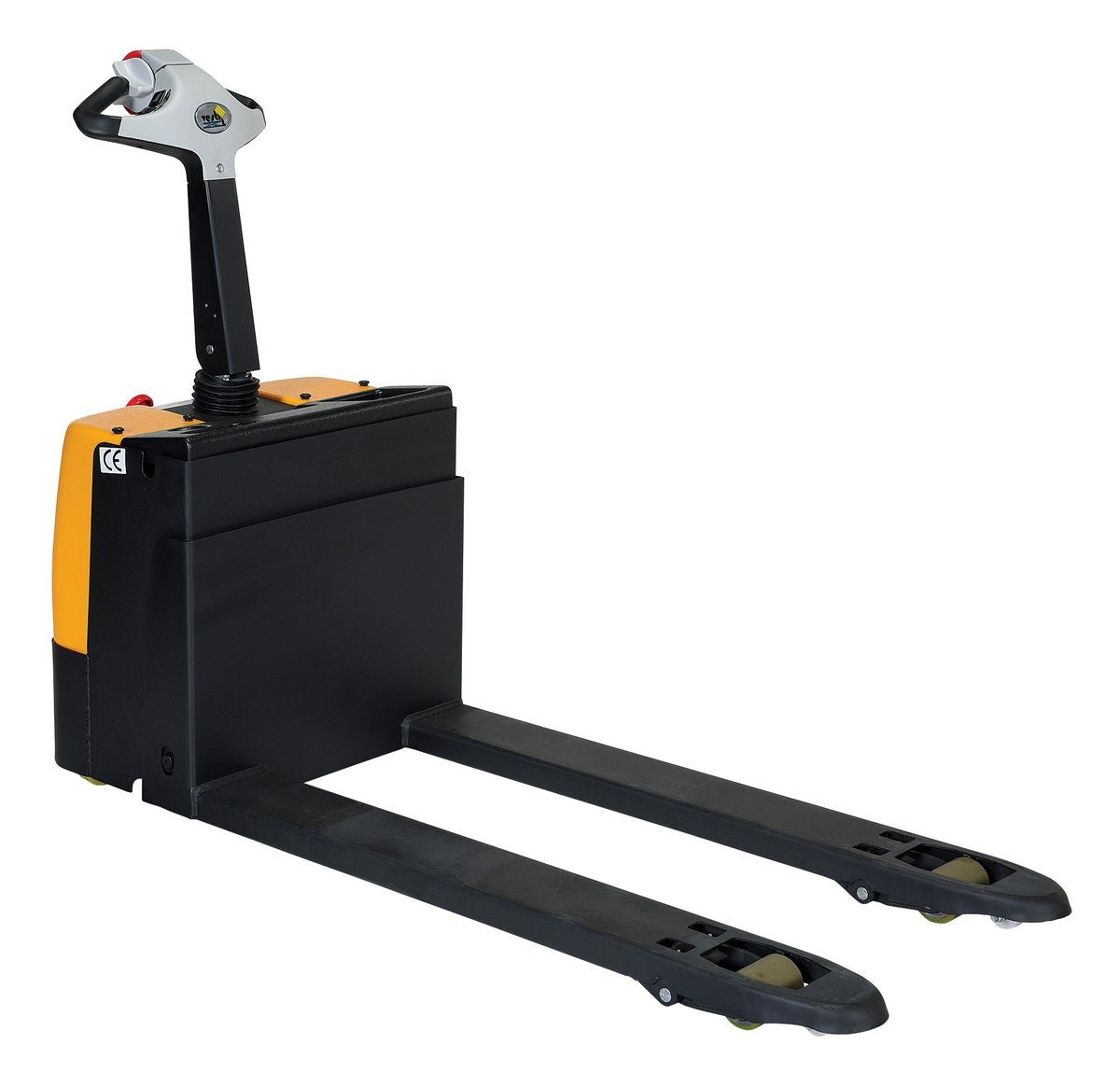

Fully Powered Electric Pallet Trucks

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button.

Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Fully Powered Electric Pallet Trucks with Lead Acid Batteries
Model	Image	PDF's	Overall Size (WxLxH)	Uniform Capacity (lbs)	Fork Size (WxL)	Service Range	Wt. (lbs)
EPT-2047-30			28-1/4"x64"x48"	3,300	20"x47"	3.2"to7.8"	740
EPT-2547-30			28-1/4"x 64"x 48"	3,300	25"x48"	3.1"to7.8"	726
EPT-2547-30-E			25"x 65"x 49"	3,000	25"x47"	3.1"to7.8"	568
EPT-2048-45			30-1/4"x76"x52"	4,500	20-1/2"x48"	3.4"to7.8"	1116
EPT-2748-45			30-1/4"x 76" x52"	4,500	27"x48"	3.2"to8.2"	1116
Below Items Includes Rider Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)
EPT-2048-45-RP			30"x80-3/4"x51"	4,500	20"x48"	3.4"to7.8"	1136
EPT-2748-45-RP			30"x80-3/4"x51"	4,500	27"x48"	3.4"to7.8"	1122
EPT-2796-45			30"x125"x51"	4,500	27"x96"	3.2"to8.2"	1562

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
