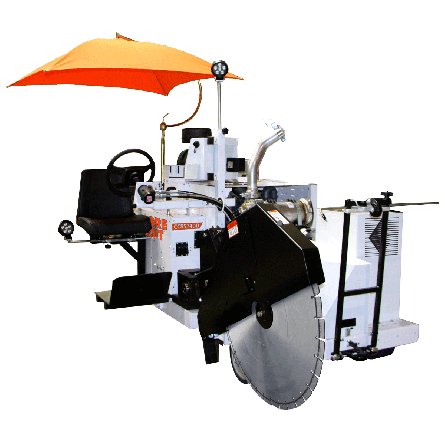

CC8574DD Rider Saw
SKU: 78895
CC8574DD Rider Saw
Features & Benefits of Diamond Products Ride on Concrete Saw:
- Redesigned frame for improved rigidity and strength
- Engine and hydraulic cooler work off of the engine-mounted fan
- Coolers located at the rear of the saw to reduce fouling
- Reservoir with clean out access
- Infinitely variable blade speed
- Programmable depth stops
- Updated rear drive motor with increased load capacity, higher top speed, integral parking brake
- Steering actuator for improved control
- Positive neutral lock for wheel drive
- Large diameter front and rear wheels for better traction
- Trailers itself up to a 12-degree incline
- Sauer-Danfoss & Parker blade drive hydraulic components
- Poclain & Parker wheel drive components
Digital Interface (7"):
- Engine and blade speed
- Engine and hydraulic fluid temperature
- Fuel level
- Hydraulic low level and blade over speed warning
| CC8574DD SPECIFICATIONS | |
| Max Depth of Cut w/ 14" Blade | 3-3/4" |
| Max Depth of Cut w/ 20" Blade | 6-3/4" |
| Max Depth of Cut w/ 26" Blade | 9-3/4" |
| Max Depth of Cut w/ 30" Blade | 11-3/4" |
| Max Depth of Cut w/ 36" Blade | 14-3/4" |
| Max Depth of Cut w/ 42" Blade | 16-3/4" |
| Max Depth of Cut w/ 48" Blade | 19-3/4" |
| Max Depth of Cut w/ 54" Blade | 22-3/4" |
| Max Depth of Cut w/ 60" Blade | 23-3/4" |
| Engine Model | Deutz 2.9 Turbo L4 Tier 4 Final |
| Blade Shaft Diameter | 2-1/2" |
| Arbor Size | 1" w/single drive pin |
| Blade Shaft Bearings | Precision ball |
| Blade Shaft Drive | Hydraulic motor |
| Blade Mounting | Right side |
| Blade Raise/Lower | Hydraulic, solenoid valve controlled |
| Transmission | Variable displacement hydraulic pump & motor |
| Air Filter | 8" Donaldson Alexin |
| Fuel Capacity | 9.5 gallons |
| Includes |
Hour Meter, Tachometer, Telescoping Front Pointer, Adjustable Depth Stop, Cup Holder, Quick Disconnect Blade Flanges |
| Blade Capacity | Power Source | Part Number | Catalog Number |
|---|---|---|---|
| 14" | Diesel | 5803300 | 78895 |
| 20" | Diesel | 5803301 | 78928 |
| 26" | Diesel | 5803302 | 78949 |
| 30" | Diesel | 5803303 | 78951 |
| 36" | Diesel | 5803304 | 78995 |
| 42" | Diesel | 5803305 | 78997 |
| 48" | Diesel | 5803306 | 79001 |
| 54" | Diesel | 5803307 | 79020 |
| 60" | Diesel | 5803308 | 79139 |
