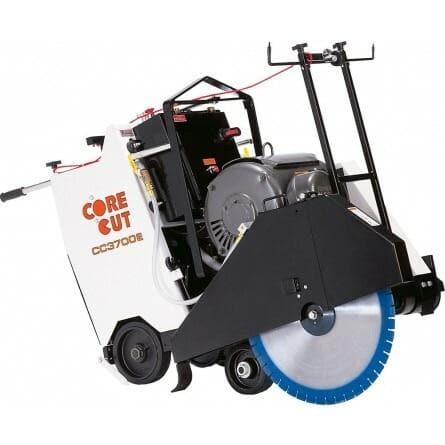

CC3700E Electric Walk Behind Saw
SKU: 14306
CC3700E Electric Walk Behind Saw Big Power That Fits Through a 30" Door Frame
14"-42" Blade Capacity
Electric Powered
Features & Benefits:
- Frame designed for higher torque from high horsepower engines
- Forward position motor for more weight at the blade and less on the operator
- Self propelled
- Single or three speed models
- Front pivot allows easy turning
- Multi-function control handle
Specifications:
| Maximum depth of cut with 14" blade: | 4-1/2" |
| Maximum depth of cut with 20" blade: | 7-1/2" |
| Maximum depth of cut with 26" blade: | 10-1/2" |
| Maximum depth of cut with 30" blade: | 11-3/4" |
| Maximum depth of cut with 36" blade: | 14-3/4" |
| Maximum depth of cut with 42" blade: | 17-1/4" |
| Blade shaft diameter: | 1-3/4" |
| Arbor size: | 1" with drive pin |
| Blade shaft drive: | 8 belt |
| Blade mounting: | Right or Left |
| Blade raise & lower: | Electro-hydraulic pump |
| Transmission: | Eaton Model 10 |
| Drive speed: | 0-200 feet/min |
| Blade Capacity | Motor/Engine Power | Engine/Motor Make | Power Source | Speeds | Part Number | Catalog Number |
|---|---|---|---|---|---|---|
| 14" | 25 HP, 230V-3PH | Leeson® | Electric | Single | 5800445A | 14306 |
| 30" | 25 HP, 230V-3PH | Leeson® | Electric | Single | 5800448A | 32087 |
| 26" | 25 HP, 460V-3PH | Leeson® | Electric | Single | 5800447B | 97597 |
| 14" | 25 HP, 460V-3PH | Leeson® | Electric | Single | 5800445B | 03765 |
| 14" | 25 HP, 575V-3PH | Leeson® | Electric | Single | 5800445C | 03781 |
| 26" | 25 HP, 230V-3PH | Leeson® | Electric | Single | 5800447A | 03782 |
| 26" | 25 HP, 575V-3PH | Leeson® | Electric | Single | 5800447C | 03783 |
| 30" | 25 HP, 460V-3PH | Leeson® | Electric | Single | 5800448B | 03797 |
| 30" | 25 HP, 575V-3PH | Leeson® | Electric | Single | 5800448C | 03805 |
| 36" | 25 HP, 460V-3PH | Leeson® | Electric | Single | 5800449B | 03811 |
| 36" | 25 HP, 575V-3PH | Leeson® | Electric | Single | 5800449C | 03829 |
| 36" | 25 HP, 230V-3PH | Leeson® | Electric | Single | 5800449A | 07716 |
| 20" | 25 HP, 230V-3PH | Leeson® | Electric | Single | 5800446A | 07869 |
| 20" | 25 HP, 460V-3PH | Leeson® | Electric | Single | 5800446B | 07870 |
| 20" | 20 HP, 575V-3PH | Leeson® | Electric | Single | 5800446C | 07878 |
| 36" | 40 HP, 460V-3PH | Baldor® | Electric | Single | 5800439A | 10497 |
| 14" | 30 HP, 460V - 3PH | Baldor® | Electric | Single | 5800381A | 14300 |
| 30" | 30 HP, 460V - 3PH | Baldor® | Electric | Single | 5800384A | 15225 |
| 30" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801089A | 42266 |
| 36" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801090A | 44357 |
| 26" | 30HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801082A | 44435 |
| 14" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801080B | 45114 |
| 20" | 30 HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801081A | 45115 |
| 20" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801081B | 45117 |
| 26" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801082B | 45118 |
| 30" | 30 HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801083A | 45119 |
| 30" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801083B | 45123 |
| 36" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801084B | 45125 |
| 42" | 30 HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801085A | 45126 |
| 42" | 30 HP, 575V - 3PH | Baldor® | Electric | 3-Speed | 5801085B | 45127 |
| 14" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801086A | 45128 |
| 14" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801086B | 45129 |
| 20" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801087A | 45130 |
| 20" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801087B | 45131 |
| 26" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801088A | 45134 |
| 26" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801088B | 45135 |
| 30" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801089B | 45137 |
| 36" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801090B | 45138 |
| 42" | 40 HP, 460V-3PH | Baldor® | Electric | 3-Speed | 5801091A | 45141 |
| 42" | 40 HP, 575V-3PH | Baldor® | Electric | 3-Speed | 5801091B | 45143 |
| 20" | 40 HP, 460V-3PH | Baldor® | Electric | Single | 5800436A | 50871 |
| 36" | 30HP, 460V - 3PH | Baldor® | Electric | Single | 5800385A | 60786 |
| 26" | 40 HP, 460V-3PH | Baldor® | Electric | Single | 5800437A | 97350 |
| 20" | 30 HP, 460V - 3PH | Baldor® | Electric | Single | 5800382A | 97788 |
| 30" | 40 HP, 460V-3PH | Baldor® | Electric | Single | 5800438A | 99107 |
| 26" | 30 HP, 460V - 3PH | Baldor® | Electric | Single | 5800383A | 99455 |
| 36" | 30 HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801084A | 45124 |
| 14" | 30 HP, 460V - 3PH | Baldor® | Electric | 3-Speed | 5801080A | 45113 |
