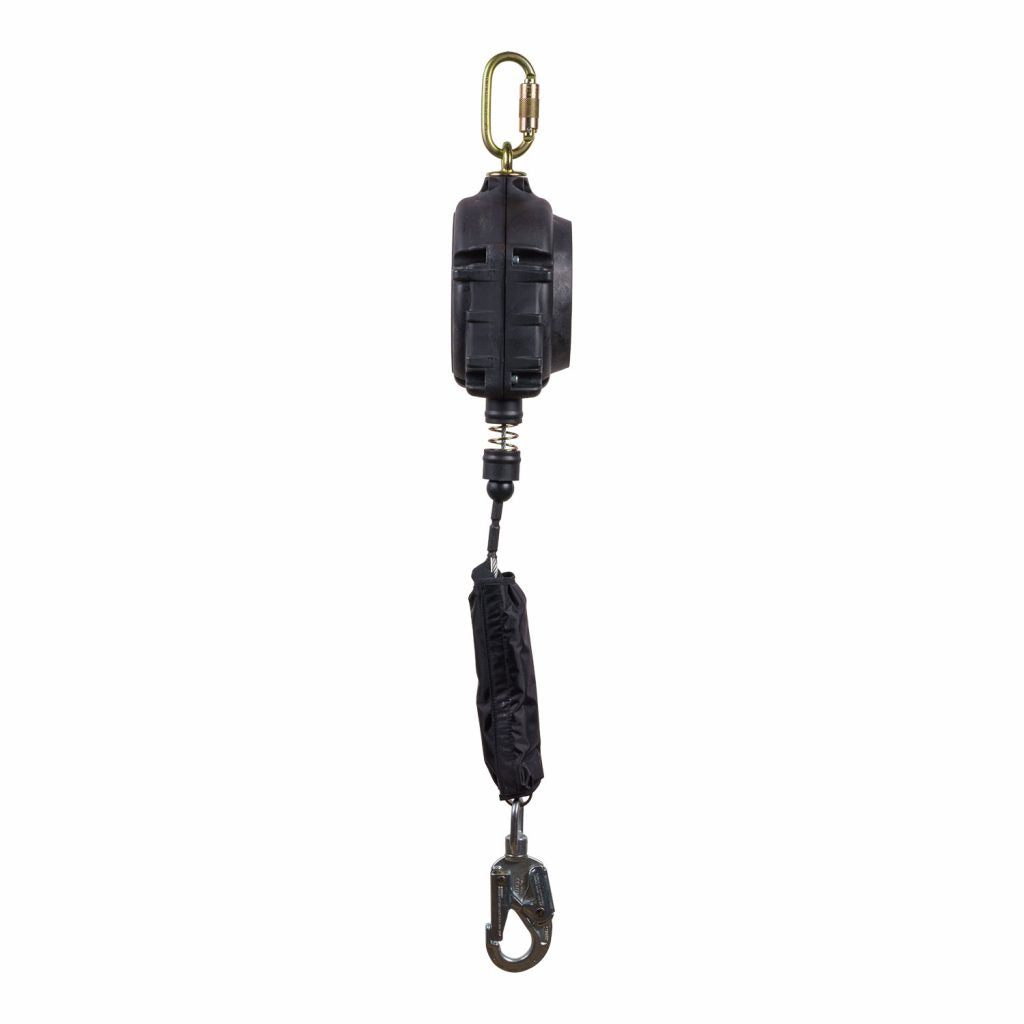

BEAST EDGE™ Series 30' Leading Edge SRL with 3/4" Load Indicating Hook

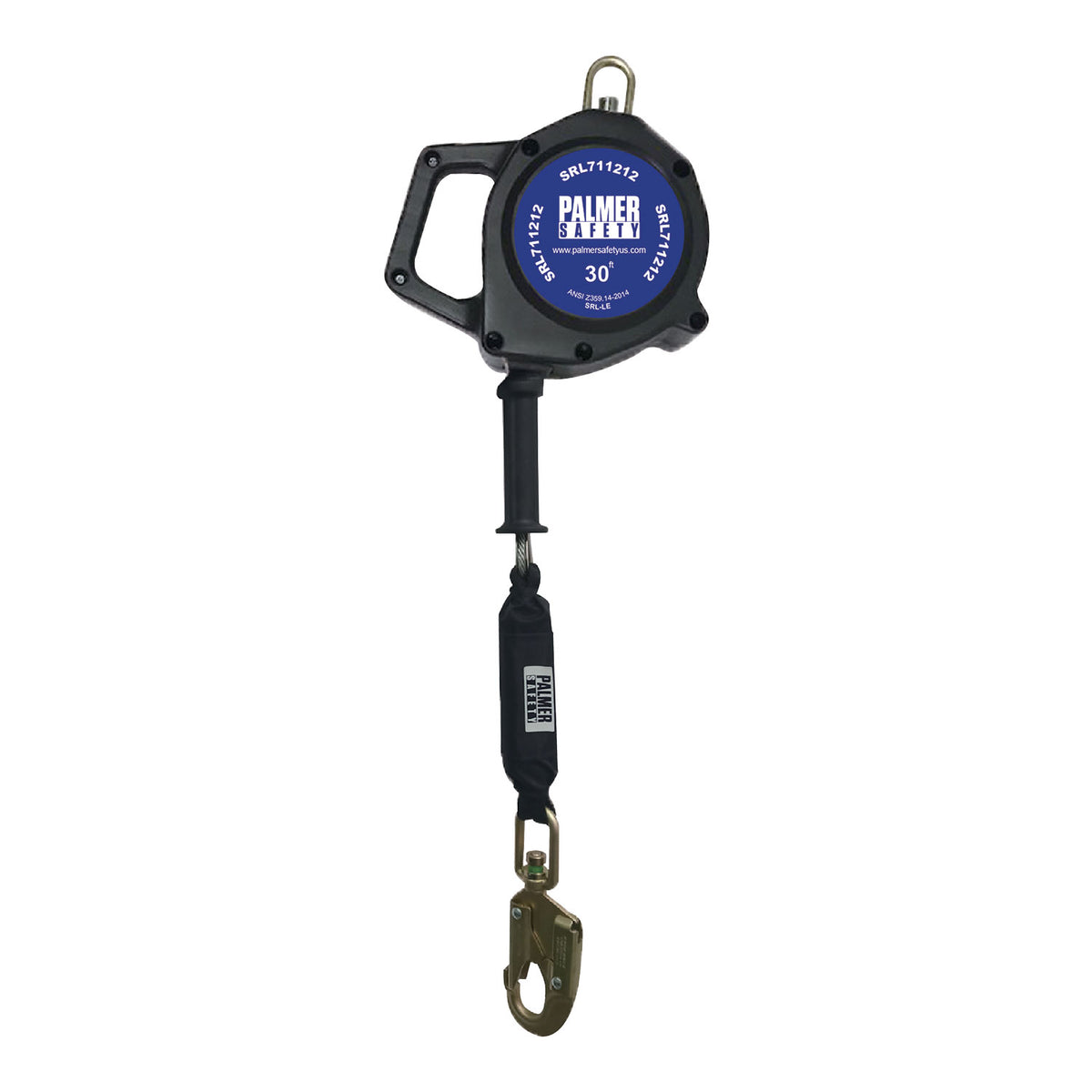

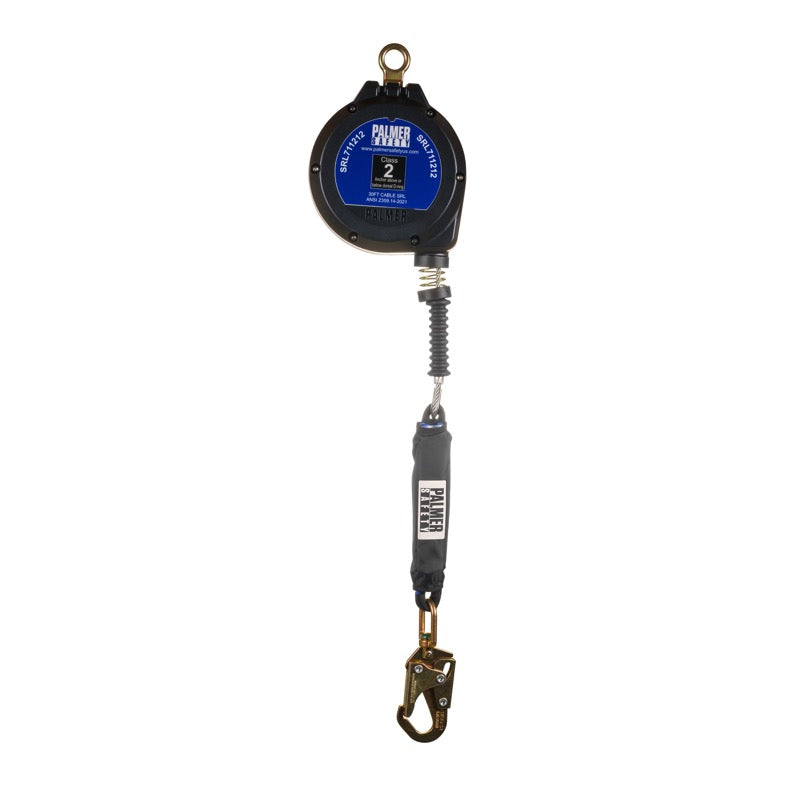

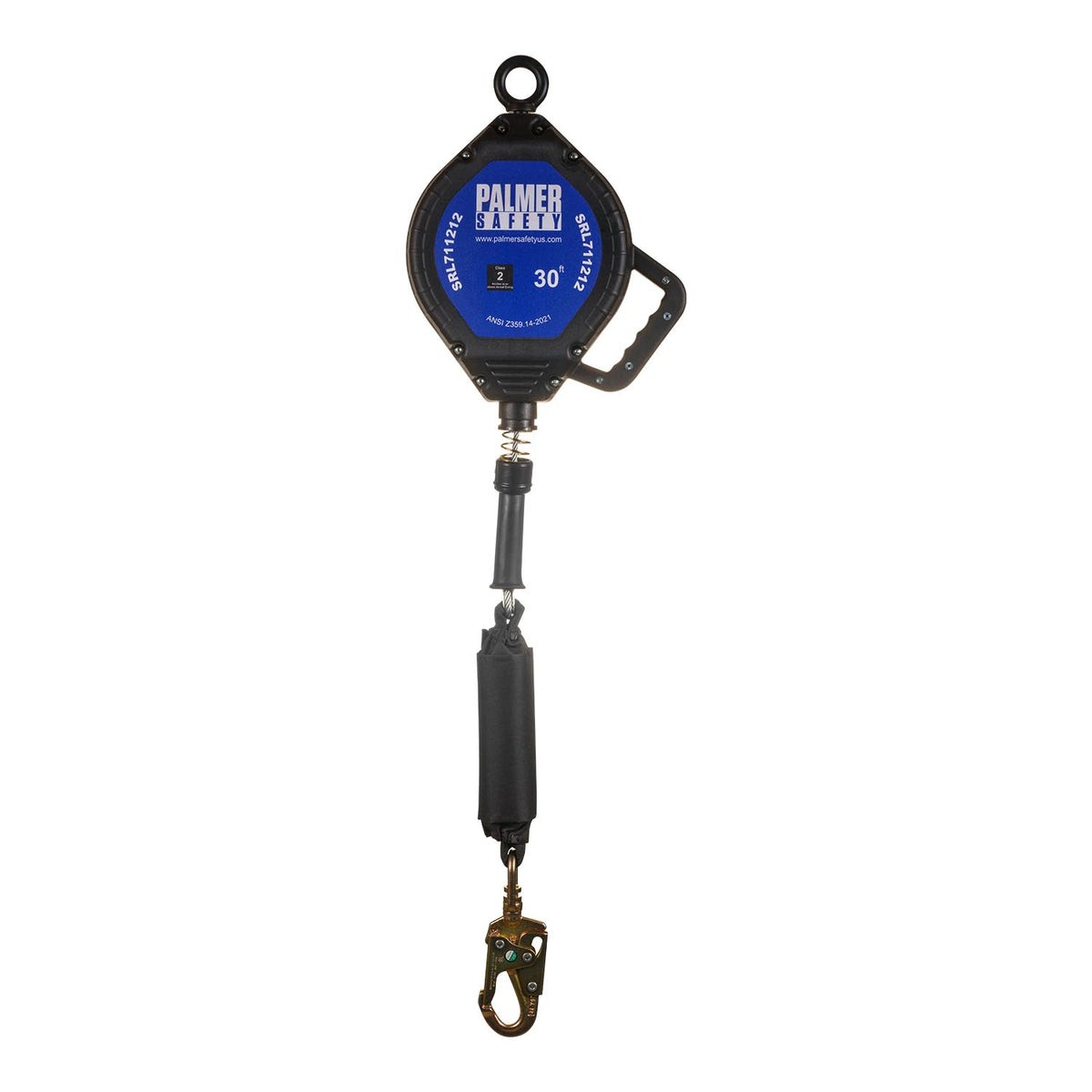

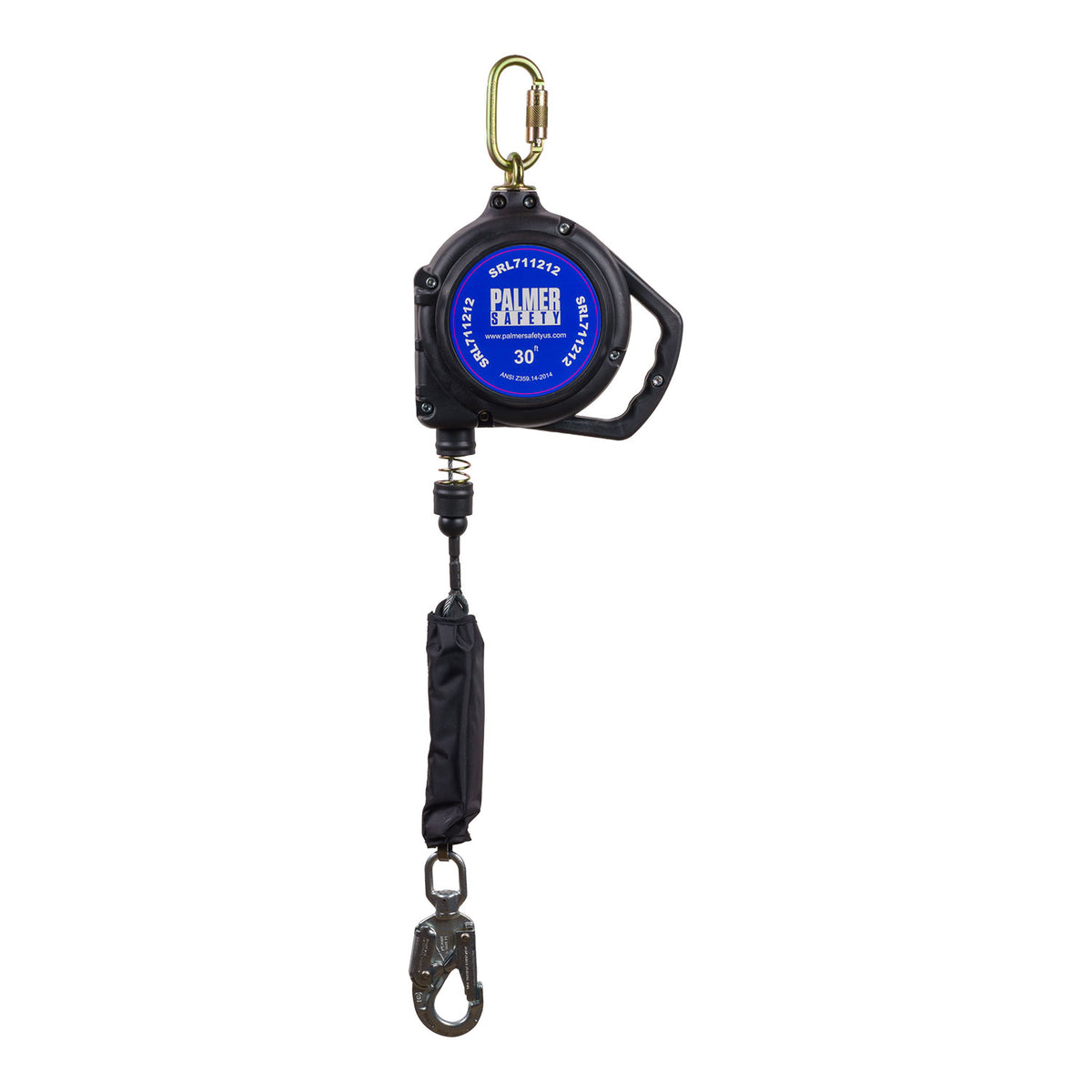

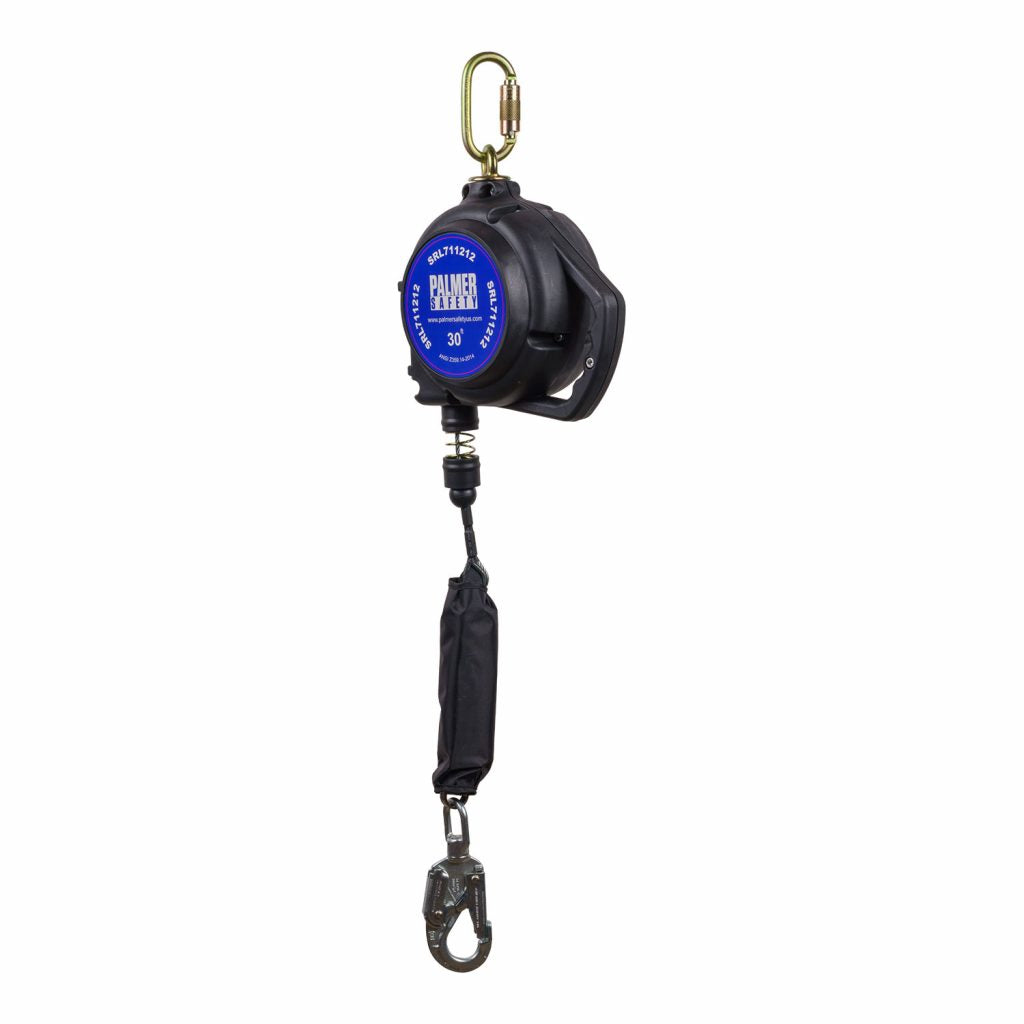

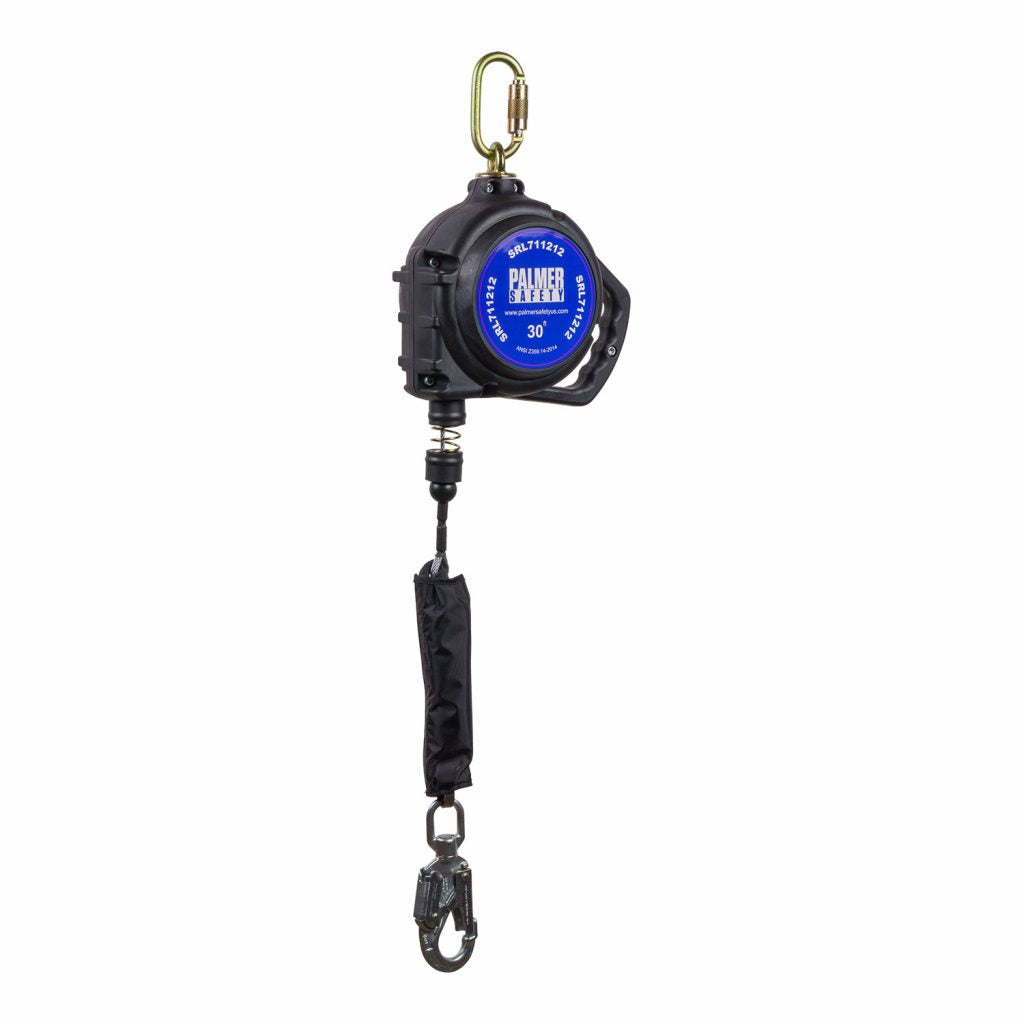

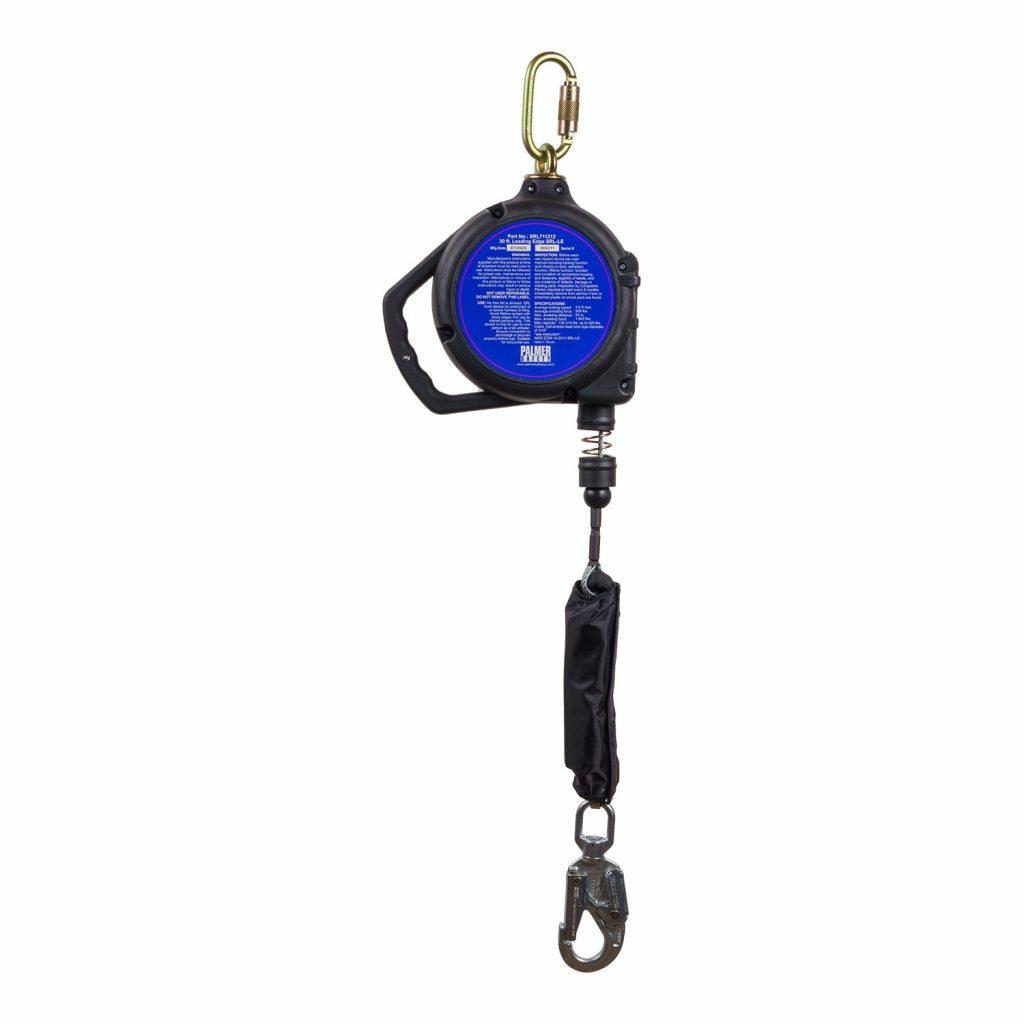

BEAST EDGE™ Series 33' Leading Edge SRL with 3/4" Load Indicating Hook — Built for Sharp Edge Fall Protection

The BEAST EDGE™ Series Self-Retracting Lifeline (SRL) is a 33-foot, galvanized steel wire rope retractable designed specifically for leading edge and sharp edge applications where standard SRLs are not rated for use. Housed in a durable composite swivel-top enclosure, this unit is engineered for contractors and trades professionals working on structural steel, roofing, concrete formwork, and other environments where the lifeline may contact an unprotected edge during a fall event. The 3/4" load indicating hook provides a clear visual confirmation of load engagement, and a 1/2" carabiner is included for connection to a full body harness dorsal D-ring. With a minimum breaking strength of 3,000 lbs and compliance with ANSI Z359.14-2021 Class 2, this SRL meets the most current industry standard for leading edge self-retracting lifelines.

Technical Specifications

Unlike standard overhead SRLs, the BEAST EDGE™ is specifically rated for leading edge use under ANSI Z359.14-2021 Class 2, meaning it has been tested to arrest a fall where the lifeline contacts an unprotected structural edge — a scenario that can cause catastrophic failure in non-LE-rated units. The swivel-top composite housing reduces torsional stress on the anchorage connection and allows the unit to track worker movement more naturally than fixed-eye designs. The included 1/2" carabiner and load indicating hook provide a complete, ready-to-deploy connection system without requiring additional hardware purchases.

Key Features & Benefits

Leading Edge / Sharp Edge Rated

This SRL is specifically engineered and tested for applications where the lifeline may contact an unprotected or sharp structural edge during a fall event. Standard SRLs are not designed for this scenario and can fail catastrophically under edge loading — the BEAST EDGE™ Class 2 rating under ANSI Z359.14-2021 confirms it has been validated for these conditions.

3/4" Load Indicating Hook

The load indicating hook provides a visible indicator when the hook has been subjected to a load, giving supervisors and users a clear signal that the device may have been involved in a fall event and should be removed from service. This feature supports compliance with the requirement to remove fall-arrested equipment immediately after a fall incident.

Swivel-Top Composite Housing

The swivel anchorage eye allows the SRL to rotate freely as the worker moves, reducing twisting forces on the anchorage point and preventing the lifeline from binding or kinking during normal work movement. The composite housing is lightweight relative to steel alternatives, reducing fatigue during overhead installation and repositioning.

Galvanized Steel Wire Rope Lifeline

The 7x19 galvanized steel wire rope construction provides superior resistance to abrasion and edge contact compared to webbing-based SRLs, making it the appropriate choice for structural steel, concrete, and roofing environments where the lifeline may drag across rough or sharp surfaces. Galvanized construction also provides corrosion resistance for outdoor and exposed jobsite conditions.

1/2" Carabiner Included

A 1/2" carabiner is included with the unit, providing a ready-to-use connection point to the dorsal D-ring of a full body harness without requiring a separate purchase. This ensures system compatibility and reduces the risk of using non-rated connecting hardware in the field.

ANSI Z359.14-2021 Class 2 Compliance

Compliance with the current ANSI Z359.14-2021 standard at Class 2 confirms this unit meets or exceeds the most up-to-date industry requirements for self-retracting lifelines used in leading edge applications. This is the standard referenced by OSHA for SRL performance and is required documentation for many general contractor safety programs.

Common Applications

Structural Steel Erection

Workers connecting beams, columns, and decking on structural steel frames frequently encounter unprotected edges where a standard SRL lifeline could be cut or weakened during a fall — the BEAST EDGE™ leading edge rating makes it the appropriate choice for these conditions.

Roofing and Roof Edge Work

Roofers working near eaves, parapets, and roof edges require a leading edge-rated SRL to ensure the lifeline can withstand contact with the roof edge during a fall arrest event. The 33-foot cable length provides adequate range of movement across typical residential and commercial roof spans.

Concrete Formwork and Decking

Concrete deck and formwork installation exposes workers to open edges and rough concrete surfaces that can damage non-LE-rated lifelines. The galvanized steel wire rope construction resists abrasion from concrete and rebar contact.

General Construction at Unprotected Edges

Any task performed within 6 feet of an unprotected floor or roof edge where conventional guardrails or safety nets are not feasible requires a personal fall arrest system — the BEAST EDGE™ provides the leading edge capability required for these exposures.

Mobile Horizontal Lifeline Systems

Per the product manual, the SRL can be used in a mobile manner traveling on a steel cable, rope, or fixed rail between anchorage connectors, making it suitable for use with horizontal lifeline systems on bridges, tanks, and large roof structures. Horizontal systems must be designed and installed under the supervision of a qualified engineer.

Compatible Materials

• Structural steel (beams, columns, decking)
• Concrete and concrete formwork
• Wood framing and roof decking
• Metal roofing panels
• Rebar and cross members (for anchorage connection via large throat snap hook)
• Fixed horizontal lifeline rails and cables

Product Documents

• Tech Sheet (Current)
• Instruction Manual — Class 2 SRL
• ANSI SRL Leading Edge Blocks Manual
• Declaration of Conformance
• Dual Leg SRL Converter Installation Guide
• Tech Sheet (v1)
• Tech Sheet (v2)
• Tech Sheet (Patent Version)

Application Instructions

Pre-Use Inspection

1. Inspect the SRL before each use for defects, damage, or deterioration. Remove from service immediately if any defect is found.
2. Verify the manufacturer's label is legible. If the label is missing or illegible, remove the unit from service.
3. Record the serial number in the inspection and maintenance log.
4. Confirm the load indicating hook shows no prior load indication. If the hook indicates a prior load event, remove from service.

Anchorage Selection and Connection

1. Select an anchorage point capable of supporting a minimum of 5,000 lbs (or 3,600 lbs with certification by a qualified person).
2. Position the anchorage point directly overhead of the work area to minimize swing fall hazard. Do not work above the anchorage point.
3. Connect the swivel-top eye of the SRL to the approved anchorage connector.
4. Connect the 1/2" carabiner (included) or the 3/4" load indicating snap hook to the dorsal D-ring of a full body harness. Use only self-locking snap hooks and carabiners as required by ANSI and OSHA.
5. Verify all connectors are fully engaged and locked before beginning work.

During Use

1. Avoid slack in the lifeline. Do not lengthen the SRL by connecting additional lanyards or snap hooks directly to the retractable.
2. Work as directly below the anchorage point as possible to minimize swing fall exposure.
3. Ensure a minimum of 6 feet of clear fall clearance below the working level at all times when the SRL is attached directly overhead.
4. Do not use the device at or below foot level — this increases free fall distance beyond OSHA allowable limits.
5. Protect the lifeline from contact with welding slag, hot sparks, and open flames. Inspect after any such exposure.
6. Use caution around electrical hazards — moisture in the lifeline may provide a path for electrical current.

Post-Use and Storage

1. If the SRL has been subjected to a fall arrest, remove it from service immediately and contact your distributor or Palmer Safety regarding replacement.
2. Clean the unit of all dirt, corrosives, and contaminants after use. Use mild soap and water if wiping alone is insufficient. Rinse, wipe, and hang to dry.
3. Store in a location away from heat, direct light, excessive moisture, oil, chemicals, and other degrading elements.
4. Formal inspection by a competent person must be performed at least annually, with more frequent inspections required in corrosive or high-exposure environments.

Safety Data Summary

Hazard Information

• Swing falls can cause serious injury or death — always work as directly below the anchorage point as possible.
• Electrical hazard: moisture absorbed by the lifeline may provide a path for electrical current; use caution near high-voltage power lines.
• Chemical and heat damage may not be visually detectable — replace the lifeline periodically when working in corrosive or high-temperature environments.
• Locking mechanism engagement may be impaired in confined spaces, on low-pitched roofs where sliding (rather than falling) occurs, or where obstructed falls are possible.
• Equipment subjected to a fall arrest must be removed from service immediately.
• Do not use for towing, hoisting, or any purpose other than personal fall arrest.

Personal Protective Equipment

• Full body harness required when using this SRL as part of a personal fall arrest system.
• Use only self-locking snap hooks and carabiners rated to a minimum of 5,000 lbs (22 kN).
• Heat-resistant materials recommended when working near welding, metal cutting, or similar activities.

Safe Handling

• Do not alter or repair the equipment — repairs must be performed only by the manufacturer or entities authorized in writing by the manufacturer.
• Pregnant women and minors must not use this equipment.
• Users with health conditions that may affect their ability to withstand fall arrest forces should consult a physician before use.
• User combined weight (person, clothing, tools) must be between 90 lbs minimum and 420 lbs maximum.
• Only one person may be connected to the SRL at a time.
• A rescue plan must be in place and the means to implement it must be at hand before beginning work at height.
• Do not expose to caustic chemicals, ammonia, sewage, fertilizers, seawater, or other corrosive environments without increasing inspection frequency.
• Do not use natural fiber materials (manila, cotton) as part of the fall protection system.

Frequently Asked Questions

Q: What makes this SRL different from a standard overhead SRL?
A: The BEAST EDGE™ is rated for leading edge and sharp edge applications under ANSI Z359.14-2021 Class 2. Standard overhead SRLs are not tested or rated for scenarios where the lifeline contacts an unprotected structural edge during a fall — using a non-LE-rated SRL in these conditions can result in lifeline failure during a fall arrest event.

Q: What anchorage strength is required for this SRL?
A: The anchorage must sustain a minimum of 5,000 lbs without certification by a qualified person, or a minimum of 3,600 lbs with certification by a qualified person. When multiple personal fall arrest systems are attached to the same structure, these requirements must be multiplied by the number of systems attached.

Q: What is the maximum user weight capacity?
A: The SRL is rated for a combined weight (person, clothing, tools, and equipment) of 90 lbs minimum and 420 lbs maximum. Only one person may be connected at a time.

Q: What should I do if the SRL has been involved in a fall arrest?
A: Remove the unit from service immediately after any fall arrest event. Contact your distributor or Palmer Safety directly regarding their replacement policies for components involved in a fall incident. Do not return the unit to service.

Q: How often does this SRL need to be formally inspected?
A: A formal inspection by a competent person (other than the user) is required at least annually per OSHA 1910.66, OSHA 1926.502, and ANSI Z359.14. More frequent inspections are required in corrosive, chemical, or high-exposure environments. The user must also inspect the unit before each use.

Q: Can this SRL be used with a horizontal lifeline system?
A: Yes — per the product manual, the SRL can be used in a mobile manner traveling on a steel cable, rope, or fixed rail between anchorage connectors. Horizontal systems must be designed and installed under the supervision of a qualified engineer, and all components must be confirmed compatible before use.
