BEAST EDGE Series 12' Leading Edge SRL with 2-1/4" Steel Rebar Hook

BEAST EDGE™ Series 12' Leading Edge SRL with 2-1/4" Steel Rebar Hook — Class 2 Fall Protection for Sharp Edge Applications

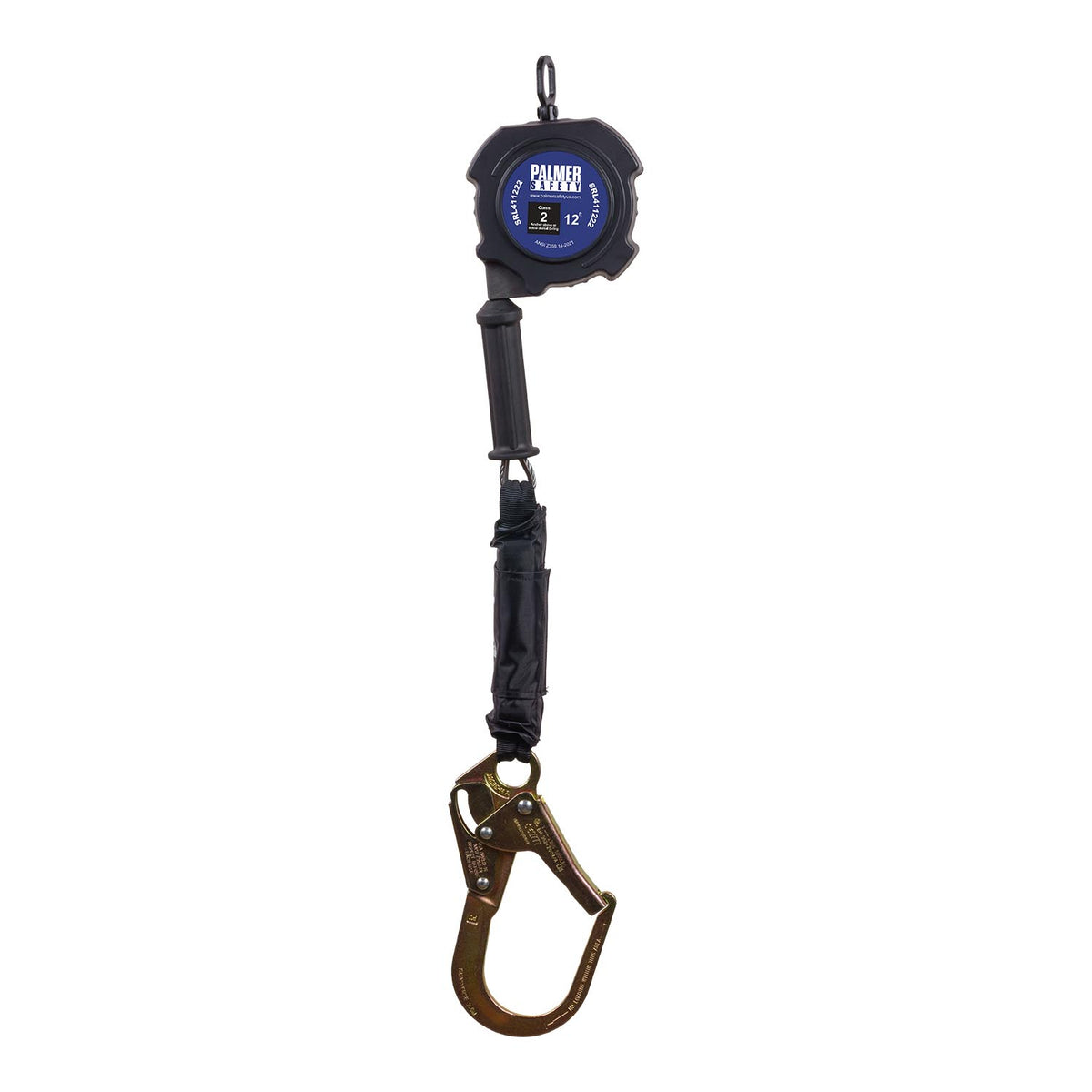

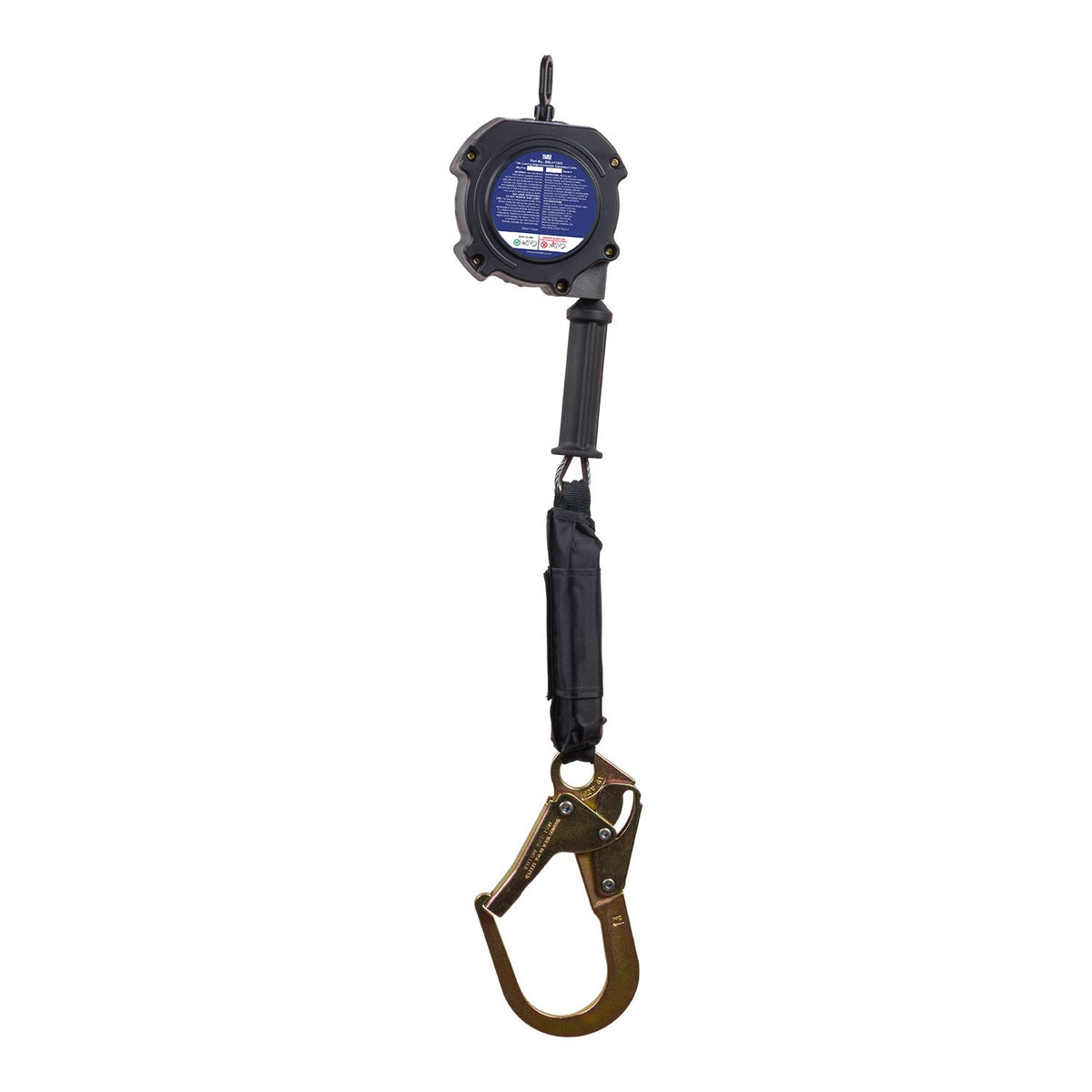

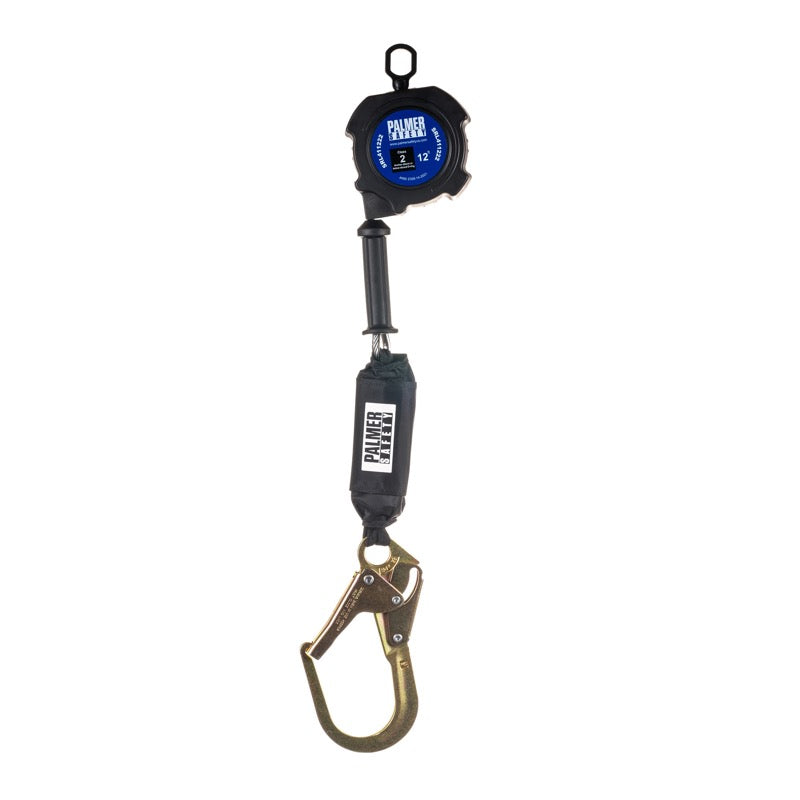

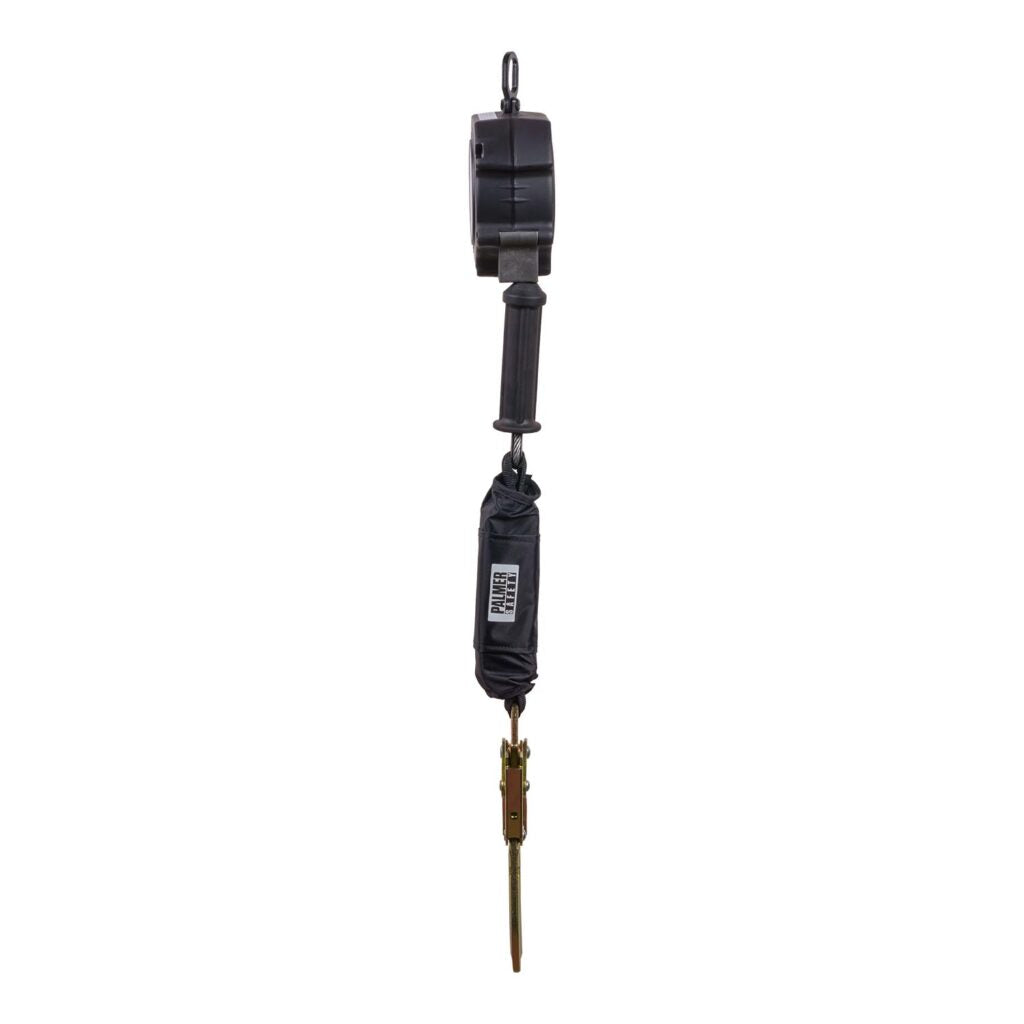

The Palmer Safety BEAST EDGE™ SRL411222 is a 12-foot, Class 2 Self-Retracting Lifeline engineered specifically for leading edge and sharp edge fall protection applications. Designed for contractors and trades professionals working on structural steel, concrete decks, and rebar-intensive environments, this SRL features a 7/32" galvanized steel wire rope cable and a 2-1/4" steel rebar hook for secure anchorage to rebar and structural members. The compact composite housing keeps the unit lightweight at under 6 lbs., while the quick-activating speed-sensing brake system delivers reliable arrest performance that meets or exceeds ANSI Z359.14-2021 Class 2 requirements.

Technical Specifications

Unlike standard SRLs that are prohibited from sharp edge use, the BEAST EDGE™ SRL411222 is purpose-built for leading edge applications where the lifeline may contact a structural edge during a fall event. The galvanized steel wire rope cable and steel rebar hook provide durability and compatibility in rebar-heavy environments that would compromise webbing-based alternatives.

Key Features & Benefits

Leading Edge Rated Cable

The 7/32" galvanized steel wire rope is rated for leading edge and sharp edge applications, making this SRL suitable for use where the lifeline may contact a structural edge during a fall. This is a critical distinction from standard SRLs, which are not approved for such conditions.

Quick-Activating Speed-Sensing Brake System

The speed-sensing brake engages rapidly upon detecting a fall, limiting the arrest distance to a maximum of 42 inches. This minimizes fall distance and reduces shock loading to the worker's body.

2-1/4" Steel Rebar Hook

The included steel rebar hook is designed for direct connection to rebar and structural cross members, eliminating the need for additional anchorage hardware in rebar-intensive work environments. The large throat opening is specifically designed for fixed structural elements.

Compact Composite Housing

The black composite plastic housing is engineered to be extremely compact and lightweight, keeping the total unit weight under 6 lbs. This reduces fatigue during extended use and makes the unit easier to reposition on the job site.

Stainless Steel and Corrosion-Resistant Components

Internal and external components are constructed from stainless steel and corrosion-resistant materials, extending service life in outdoor and harsh construction environments. The galvanized steel cable further resists corrosion from moisture and environmental exposure.

Swivel Top Anchorage

The swivel eye anchorage allows the housing to rotate freely as the worker moves, reducing cable twist and tangling during normal work activity. This supports full freedom of movement across the 12-foot working radius.

1/2" Carabiner Included

A 1/2" carabiner is included with the unit for connecting the SRL to the worker's full body harness dorsal D-ring, providing a complete connection solution out of the box.

Common Applications

Structural Steel Erection

The steel rebar hook and leading edge-rated cable make this SRL well-suited for ironworkers and structural steel erectors connecting to rebar, beams, and cross members at elevation.

Concrete Deck and Slab Work

Workers placing rebar, forming, or finishing concrete decks can anchor directly to rebar grids using the 2-1/4" rebar hook, with the leading-edge cable providing protection at slab edges.

Leading Edge and Unprotected Edge Work

Designed specifically for leading edge applications where the lifeline may contact a structural edge during a fall, this SRL is appropriate for work at unprotected floor or roof edges where standard SRLs are not permitted.

Overhead Anchorage — Stationary Use

The SRL can be mounted to an approved fixed overhead anchorage connector, extending as the user moves away and retracting as the user returns, providing continuous fall protection across the full 12-foot working radius.

Mobile Use on Horizontal Lifeline or Rail Systems

The SRL may be used in a mobile manner traveling along a steel cable, rope, or fixed rail between anchorage connectors, provided all HLL or rail system applications are under the supervision of a Qualified Person.

Compatible Materials

• Rebar and structural steel cross members (via 2-1/4" steel rebar hook)
• Rigid and flexible horizontal lifeline (HLL) systems
• Fixed rail anchorage systems
• Approved fixed overhead anchorage connectors
• Full body harness dorsal D-rings (via included 1/2" carabiner)

Product Documents

• Tech Sheet – SRL411222
• Instruction Manual – Class 2 Self Retracting Lifeline
• Declaration of Conformance – SRL411222
• ANSI SRL Leading Edge Manual
• Dual Leg SRD Converter Quick Installation Guide

Application Instructions

Before Each Use

1. Inspect the SRL for defects, damage, or deterioration. Remove from service immediately if any are found.
2. Verify the manufacturer's label is legible and present. If missing or illegible, remove from service.
3. Confirm all connectors are self-closing and self-locking and capable of supporting a minimum of 5,000 lbs.
4. Confirm system compatibility — ensure all components of the personal fall arrest system (PFAS) are compatible before use.

Connecting the SRL — Overhead Anchorage (Stationary)

1. Attach the swivel top of the SRL to an approved fixed overhead anchorage connector using the 2-1/4" steel rebar hook or compatible connector.
2. Visually confirm the connector is fully engaged to the anchor point — avoid false engagement.
3. Connect the included 1/2" carabiner to the dorsal D-ring of the worker's full body harness.
4. Confirm the carabiner gate is fully closed and locked before beginning work.
5. Do not connect two or more connectors to a single D-ring. Do not connect connectors to each other.

Connecting the SRL — Mobile Use on HLL or Rail

1. Ensure all HLL or rail system installation and use is under the supervision of a Qualified Person.
2. Attach the SRL to the HLL or rail system per the HLL/rail manufacturer's instructions.
3. Connect the free end to the worker's dorsal D-ring via the included carabiner.
4. Confirm all connections are fully engaged before beginning travel along the line.

Fall Clearance Calculation

1. Calculate minimum fall clearance for direct overhead use: Deceleration Distance (A) = 2 ft. + D-ring Shift and Harness Stretch (B) = 1 ft. + Safety Factor (C) = 2 ft. = Minimum Fall Clearance Required (D) = 5 ft.
2. If working laterally away from the anchorage point, calculate additional swing fall clearance using Chart 1 (Swing Fall Additional Fall Clearance with Overhead Anchorage) in the instruction manual.
3. Ensure sufficient clearance exists between the worker and the nearest lower level or obstruction before beginning work.

After a Fall Event

1. Remove the SRL from service immediately if it has been subjected to the force of a fall arrest.
2. Contact your distributor or Palmer Safety regarding replacement policies for components involved in a fall incident.
3. Do not return the SRL to service until it has been inspected and cleared by the manufacturer or an authorized representative.

Maintenance, Cleaning, and Storage

1. Clean the SRL of all dirt, corrosives, and contaminants after each use. Wipe clean or use mild soap and water if needed.
2. Rinse, wipe, and hang to dry completely before storage.
3. Store in a location away from heat, light, excessive moisture, oil, chemicals, or other degrading elements.
4. Repairs must be performed only by a Palmer Safety representative or an entity authorized in writing by Palmer Safety.
5. Formal inspections by a Competent or Qualified Person must be conducted at least semi-annually. Record the date of first inspection and serial number in the owner's Inspection Log.

Safety Data Summary

Hazard Information

• Equipment subjected to a fall arrest must be removed from service immediately — continued use after a fall event may result in serious injury or death.
• Swing falls — where the anchorage is not directly above the fall point — significantly increase required fall clearance and may cause serious injury or death upon striking an object.
• Electrical hazard: moisture absorbed by the wire rope lifeline may provide a path for electrical current; use caution near high-voltage power lines.
• Chemical and heat hazard: exposure to acid, caustic chemicals, elevated temperatures, welding slag, or hot sparks can damage the SRL. Chemical damage may be difficult to detect.
• Corrosion hazard: prolonged exposure to ammonia, sewage, fertilizers, seawater, or other corrosive environments requires more frequent inspection and servicing.
• Locking speed hazard: obstructed falls, confined spaces, or low-pitched roofs where a worker may slide rather than fall can limit the speed at which the locking mechanism engages.
• Pregnant women and minors must not use this equipment.
• Consult a physician if there is any reason to doubt a user's ability to safely withstand fall arrest forces.

Personal Protective Equipment

• Full body harness required as part of the complete personal fall arrest system (PFAS)
• Use heat-resistant materials when working near welding, metal cutting, or similar activities to protect the SRL

Safe Handling

• Do not alter the equipment in any way; repairs must be performed only by the manufacturer or authorized entities.
• Do not use the SRL for towing or hoisting.
• Do not expose to chemicals that may have a harmful effect on the materials used to construct the unit.
• Do not use around moving machinery or electrical hazards without appropriate precautions.
• Never use natural fiber materials (manila, cotton, etc.) as part of the fall protection system.
• Protect all synthetic materials from slag, hot sparks, open flames, or other heat sources.
• A rescue plan and the means to implement it must be in place before using this equipment.
• Remove any obstructions, debris, or recognized hazards from the work area before use.
• Only one person may be connected to the SRL at a time.

Frequently Asked Questions

Q: Is the SRL411222 approved for use at leading edges and sharp edges?
A: Yes. The BEAST EDGE™ SRL411222 is specifically designed and rated for leading edge and sharp edge applications. However, the manual cautions users to avoid extremely sharp edges such as sheared metals, abrasive disk-cut metals, or flame-cut metals, as well as very abrasive concrete or stone edges that may abrade the lifeline or energy absorber during a fall.

Q: What is the maximum and minimum user weight capacity?
A: The SRL is rated for users with a combined weight (person, clothing, and tools) of 130 lbs. minimum and 310 lbs. maximum. No more than one person may be connected at a time.

Q: What is the maximum arrest distance for this SRL?
A: The maximum arrest distance is 42 inches, with a maximum arresting force of 1,800 lbs. and an average arresting force of 1,350 lbs., per the ANSI/ASSP Z359.14-2021 Class 2 specification table.

Q: What is the minimum fall clearance required when using this SRL with overhead anchorage?
A: For direct overhead use, the minimum fall clearance required is 5 feet (2 ft. deceleration distance + 1 ft. D-ring shift and harness stretch + 2 ft. safety factor). Additional clearance must be calculated if the worker is operating laterally away from the anchorage point due to swing fall risk — refer to Chart 1 in the instruction manual.

Q: Can this SRL be used on a horizontal lifeline or rail system?
A: Yes. The SRL411222 may be used in a mobile manner traveling along a steel cable, rope, or fixed rail between anchorage connectors. All HLL or rail system applications, installation, and use must be under the supervision of a Qualified Person.

Q: What should be done if the SRL is involved in a fall arrest?
A: The SRL must be removed from service immediately after being subjected to the force of a fall arrest. Contact your distributor or Palmer Safety directly regarding their replacement policies for components involved in a fall incident. Do not return the unit to service without manufacturer authorization.

Q: How often must the SRL be formally inspected?
A: Formal inspections must be conducted by a Competent or Qualified Person at least semi-annually. In addition, the user must inspect the equipment before each use for defects, damage, or deterioration. The date of first inspection and the serial number must be recorded in the owner's Inspection Log.
