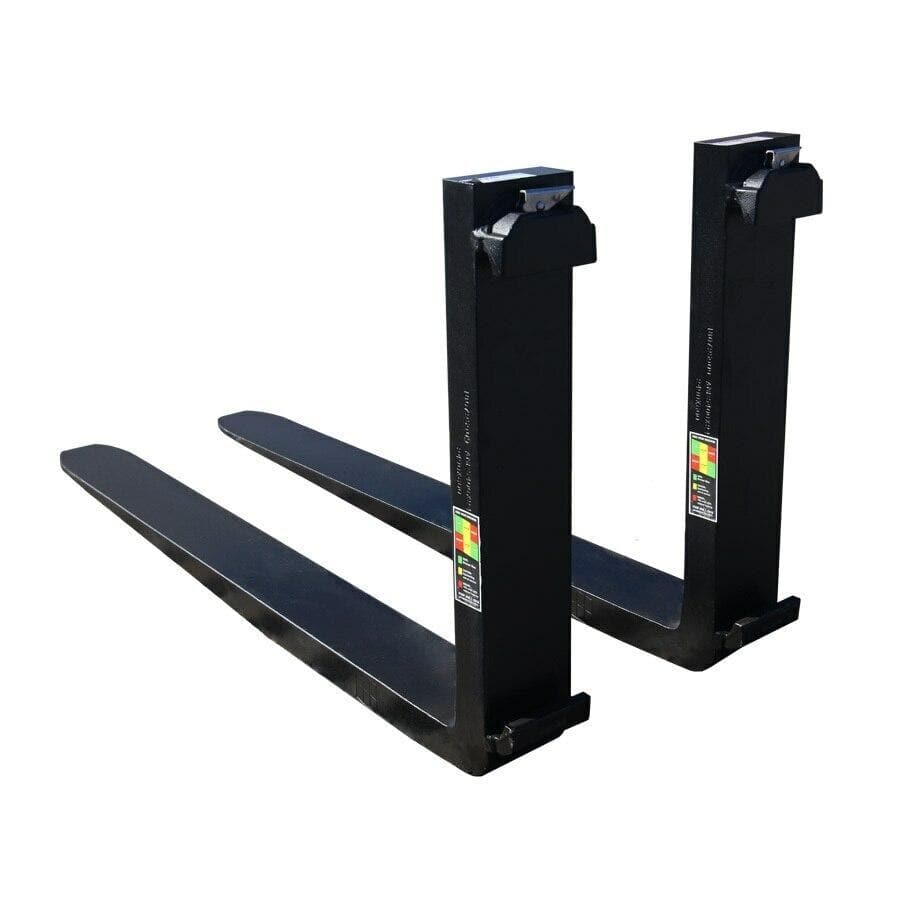

Standard ITA Forklift Forks

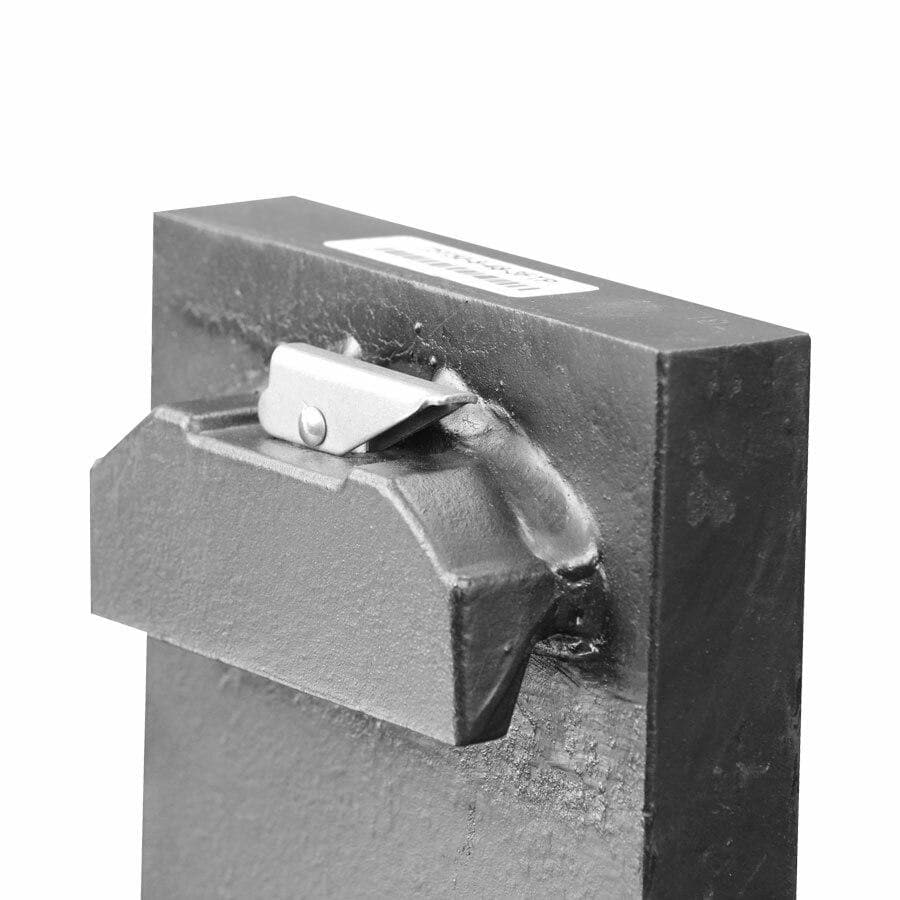

Standard ITA Forklift Forks are the most common forklift forks among the material handling industries. ITA clips make it easy to position and secure forks directly to a frame or carriage. All forks meet or exceed all ISO 2330 Standards and ANSI/ITSDF B56.11.4 Standards as provided by the Industrial Truck Association.
Features
- Available in Class II, III, and IV
- Matte black finish
- Capacity rated at load center for true accuracy
- Made from a high strength boron-carbon steel
- Fully heat treated to better absorb impact
- Custom modifications available upon request
Standard ITA Classes | II, III, IV, V | |
Styles | Standard Taper | |
Widths | ||
Inches | Millimeters | |
1″ to 16″ | 25 to 406 mm | |
Thicknesses | ||
Inches | Millimeters | |
1″ to 6″ | 25 to 152 mm | |
Lengths | ||
Inches | Millimeters | |
Up to 192″ | Up to 548.64 mm | |
Capacities per pair at 24” (60.96 cm) load center; 3:1 safety factor |
900lb. To 308,400 lb. | 408 kg. To 142,130 ks. |
List
Product # | Length | Width | Thickness | Class | Capacity |
73150-4-32-2 | 32 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
73175-4-36-2 | 36 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73150-4-36-2 | 36 inches | 4 inches | 1.5 inches | ITA Class II | 3000 lb |
73125-4-36-2 | 36 inches | 4 inches | 1.25 inches | ITA Class II | 3000 lb |
73175-5-36-2 | 36 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73175-5-36-3 | 36 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73150-5-36-2 | 36 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
732-6-36-3 | 36 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
73150-4-40-2 | 40 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
73175-5-40-2 | 40 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
751-3-42-2 | 42 inches | 3 inches | 1 inch | ITA Class II | 1500 lb |
751-4-42-2 | 42 inches | 4 inches | 1 inch | ITA Class II | 2100 lb |
73175-4-42-2 | 42 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73175-4-42-3 | 42 inches | 4 inches | 1.75 inches | ITA Class III | 6000 lb |
73150-4-42-2 | 42 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
73125-4-42-2 | 42 inches | 4 inches | 1.25 inches | ITA Class II | 3000 lb |
732-5-42-3 | 42 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73175-5-42-3 | 42 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73175-5-42-2 | 42 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73150-5-42-2 | 42 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
732-6-42-3 | 42 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-4-48-3 | 48 inches | 4 inches | 2 inches | ITA Class III | 8000 lb |
732-4-48-2 | 48 inches | 4 inches | 2 inches | ITA Class II | 8000 lb |
73175-4-48-2 | 48 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73175-4-48-3 | 48 inches | 4 inches | 1.75 inches | ITA Class III | 6000 lb |
73150-4-48-2 | 48 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
73125-4-48-2 | 48 inches | 4 inches | 1.25 inches | ITA Class II | 3000 lb |
732-5-48-3 | 48 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73175-5-48-2 | 48 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73175-5-48-3 | 48 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73150-5-48-2 | 48 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
73250-6-48-4 | 48 inches | 6 inches | 2.5 inches | ITA Class IV | 21000 lb |
732-6-48-3 | 48 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-4-54-3 | 54 inches | 4 inches | 2 inches | ITA Class III | 8000 lb |
73175-4-54-2 | 54 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73150-4-54-2 | 54 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
732-5-54-3 | 54 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73175-5-54-2 | 54 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73175-5-54-3 | 54 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73150-5-54-2 | 54 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
732-6-54-3 | 54 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-4-60-3 | 60 inches | 4 inches | 2 inches | ITA Class III | 8000 lb |
73175-4-60-2 | 60 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73175-4-60-3 | 60 inches | 4 inches | 1.75 inches | ITA Class III | 6000 lb |
73150-4-60-2 | 60 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
732-5-60-3 | 60 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73175-5-60-2 | 60 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73175-5-60-3 | 60 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73150-5-60-2 | 60 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
73250-6-60-4 | 60 inches | 6 inches | 2.5 inches | ITA Class IV | 21000 lb |
732-6-60-3 | 60 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-6-60-4 | 60 inches | 6 inches | 2 inches | ITA Class IV | 12500 lb |
732-4-72-3 | 72 inches | 4 inches | 2 inches | ITA Class III | 8000 lb |
732-4-72-2 | 72 inches | 4 inches | 2 inches | ITA Class II | 8000 lb |
73175-4-72-3 | 72 inches | 4 inches | 1.75 inches | ITA Class III | 6000 lb |
73175-4-72-2 | 72 inches | 4 inches | 1.75 inches | ITA Class II | 6000 lb |
73150-4-72-2 | 72 inches | 4 inches | 1.5 inches | ITA Class II | 5200 lb |
732-5-72-3 | 72 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73175-5-72-2 | 72 inches | 5 inches | 1.75 inches | ITA Class II | 8000 lb |
73175-5-72-3 | 72 inches | 5 inches | 1.75 inches | ITA Class III | 8000 lb |
73150-5-72-2 | 72 inches | 5 inches | 1.5 inches | ITA Class II | 6400 lb |
73250-6-72-4 | 72 inches | 6 inches | 2.5 inches | ITA Class IV | 21000 lb |
732-6-72-3 | 72 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-6-72-4 | 72 inches | 6 inches | 2 inches | ITA Class IV | 12500 lb |
732-5-84-3 | 84 inches | 5 inches | 2 inches | ITA Class III | 10800 lb |
732-4-96-2 | 96 inches | 4 inches | 2 inches | ITA Class II | 8000 lb |
732-4-96-3 | 96 inches | 4 inches | 2 inches | ITA Class III | 8000 lb |
732-5-96-3 | 96 inches | 5 inches | 2 inches | ITA Class III | 10000 lb |
73250-6-96-4 | 96 inches | 6 inches | 2.5 inches | ITA Class IV | 21000 lb |
732-6-96-3 | 96 inches | 6 inches | 2 inches | ITA Class III | 12500 lb |
732-6-96-4 | 96 inches | 6 inches | 2 inches | ITA Class IV | 12500 lb |
