Granite A Frame for designed especially to go onto a truck

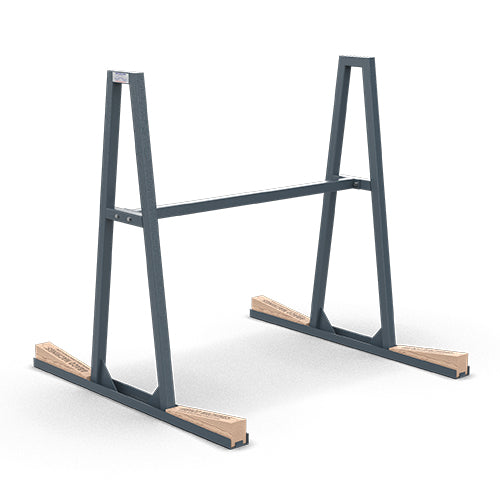

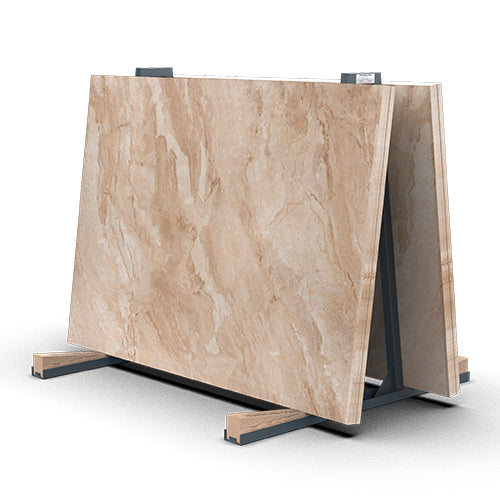

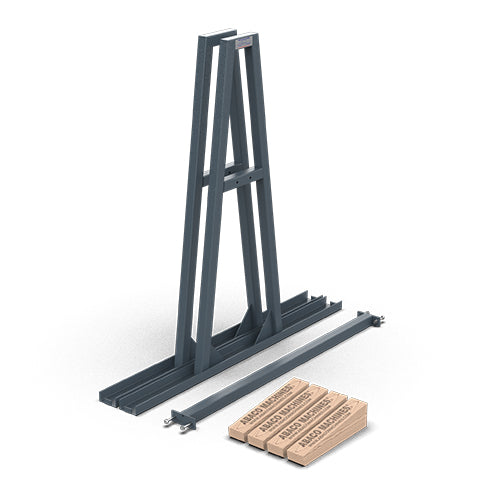

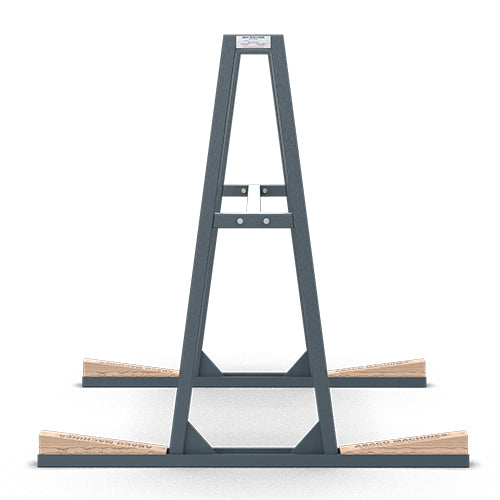

The Abaco Truck A-Frame is constructed from two Standard A-Frames joined by a cross bar, extending the overall length to five feet. This design provides storage capacity of 16,500 pounds (7500kg) per side. It comes with angled timber blocks to protect materials and is designed for picking up slabs and moving them from one factory to another.

  • SQUARE STEEL TUBING: 2 x 2 x 1/8 inches (50 x 50 x 3mm)
  • STRENGTHENING PLATE : 5 7/8 x 5 7/8 x 1/4 inches (150 x 150 x 6mm)
  • INCLUDES TIMBER BLOCKS TO PROTECT MATERIAL AND IMPROVE STABILITY: 18 x 1/8 x 4 3/8 inches(460 x 80 x 110mm)

Model Number

Length

inches (mm)

Width

Inches (mm)

Height

Inches (mm)

Net Weight

Pounds (kg)

W.L.L

Pounds (kg)

TAF060

60 (1524)

60 (1524)

60 (1524)

132 (60)

16,500 (7500) Per Side

33,000 (11,000) Per Pair
