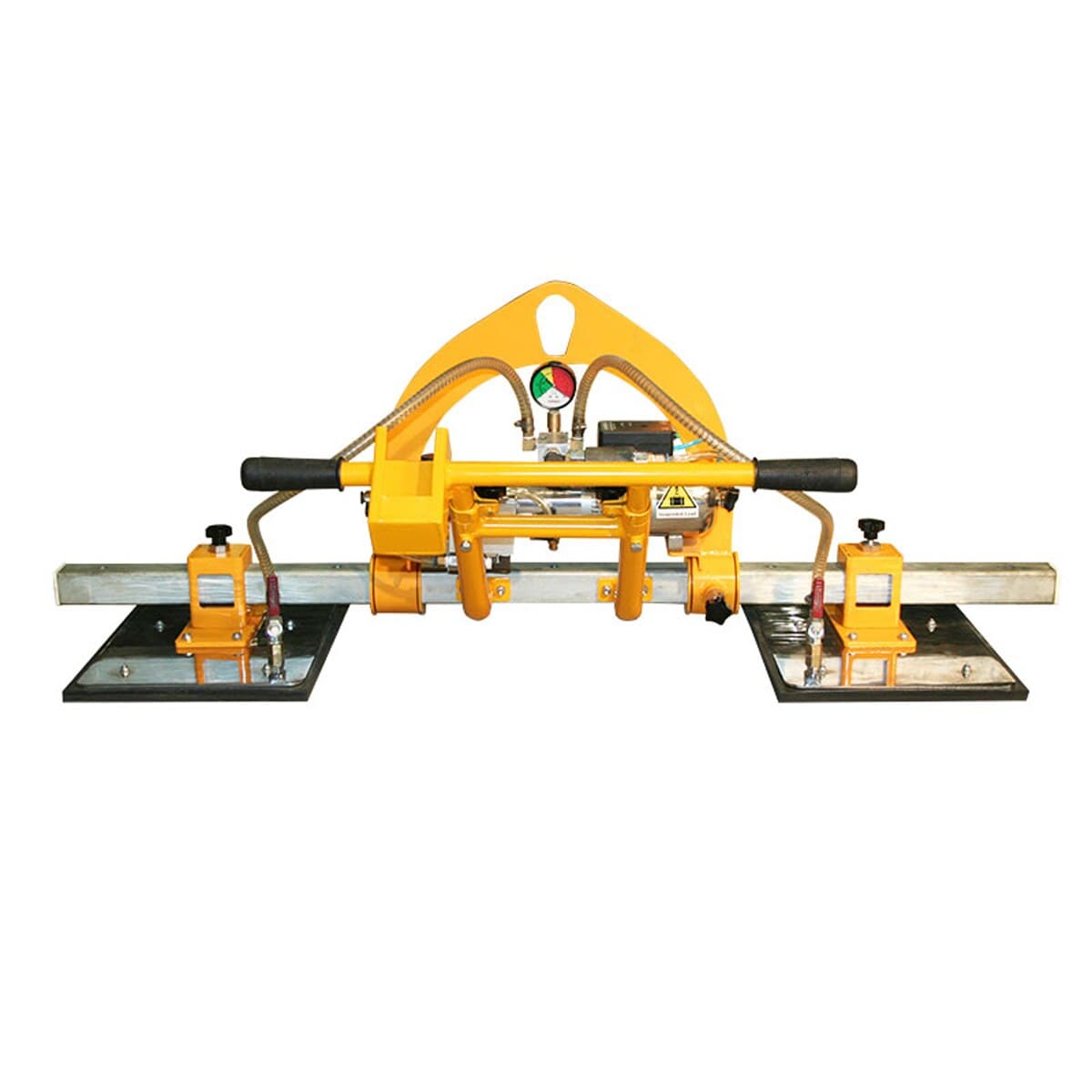

Aardwolf Vacuum Lifter AVLM2-500kg

Original price $2,090.00 - Original price $2,090.00
Original price
$2,090.00
$2,090.00 - $2,090.00
Current price $2,090.00
SKU: AVLM2

Vacuum Lifter for lifting smooth or rough marble and granite slabs, with work load capacity of over 1,100 pounds!

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. The Granite Lifter featurers a rugged construction with the ability to lift and tilt materials. Vacuum Lifters are powered by compressed air.

Stone Lifting Equipment Features:

  • Metal structure tilting from 0 to 90° manually
  • Suction pad can be rotated 90° to change configuration (geometry)
  • Compressed air operated vacuum pump at a pressure of 6-7 Bars.
  • Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump
  • Acoustic and visual alarm system by a rechargeable battery
  • Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads

Specifications:

Number of Pads 2

Pad Dimensions 19.7x11.8

Working Load Limit 1102 lbs

Net Weight 115

Gross Weight 176.4

Package Dims 58.1x13.8x32.3
