Aardwolf Lifter 50 Type A Auto Lock

Original price $882.00 - Original price $882.00
Original price
$882.00
$882.00 - $882.00
Current price $882.00
SKU: AL50A

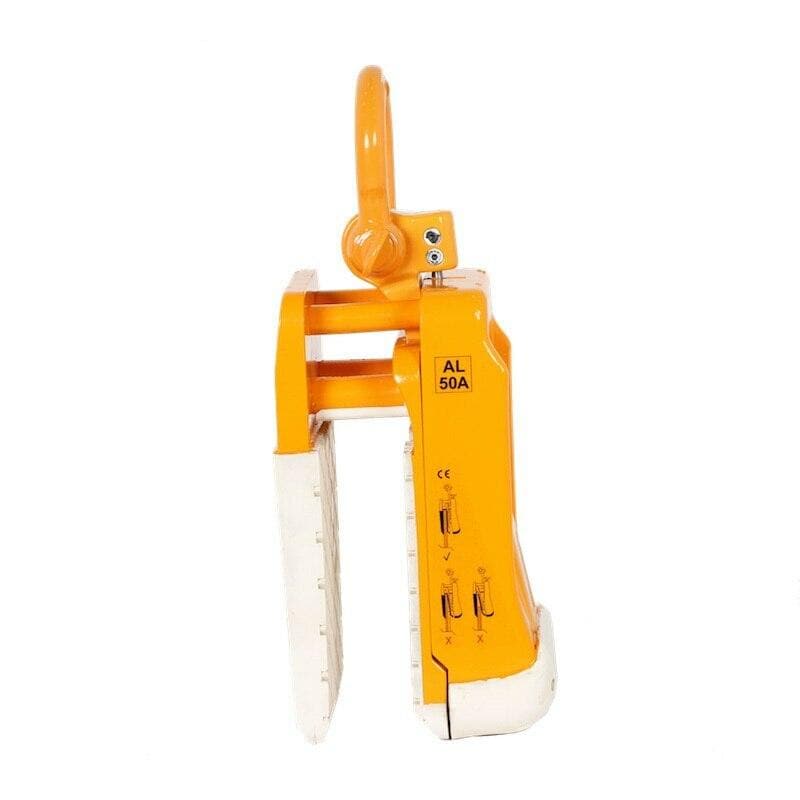

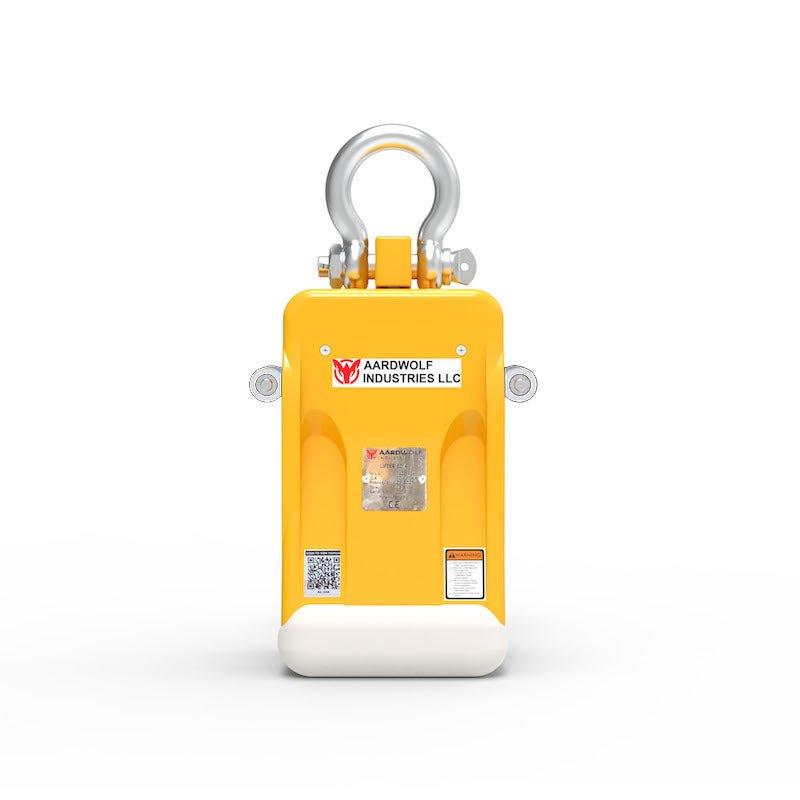

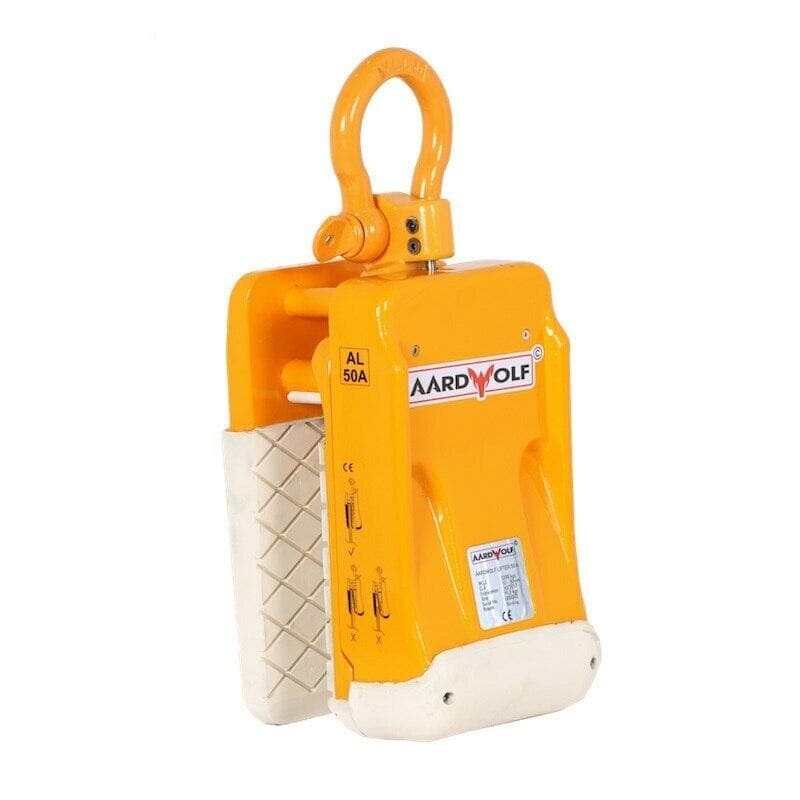

Aardwolf Slab Lifter Automatic AL50A

Aardwolf offers a new version of its patented Aardwolf Slab Lifters. The new Aardwolf Slab Lifter Automatic AL50A has an integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set down. In many situations this makes moving and handling of slabs safer and more convenient.

Features

  • Size: Being of a compact construction, the Aardwolf Slab Lifter Automatic AL50A allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
  • Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
  • Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
  • Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter Automatic AL50A has a force-multiplying factor of approximately 2.5 to 1.

Specifications:

Model Grip Range Working Load Limit Net Weight Gross Weight Packing Dimensions
Lifter 30 Wide 0.2'' - 1'' 2646 45 47 17.3''x6.3x14.2''
Lifter 50 0.4'' - 2'' 2646 42 44 15''x8.3''x9''
Lifter 50-B 0.4'' - 2'' 2646 53 55 22.8''x7.3''x12.2''
Lifter 60 0.6'' - 2'' 2646 55 57 16.5''x9''x9.8''
Lifter 75 1'' - 3'' 2646 55 57 16.5''x9''x9.8''
Lifter 50 (Auto) 0.4'' - 2'' 2646 42 44' 15''x8.3''x9''
Lifter 60 (Auto) 0.6'' - 2'' 2646 55 57 16.5''x9''x9.8''
Lifter 75(Auto) 1'' - 3'' 2646 55 57 16.5''x9''x9.8''
