3520C Lathe, 2HP, 1PH, 220V
SKU# PM9-1353001
Couldn't load pickup availability
Safe & Secure Payments.

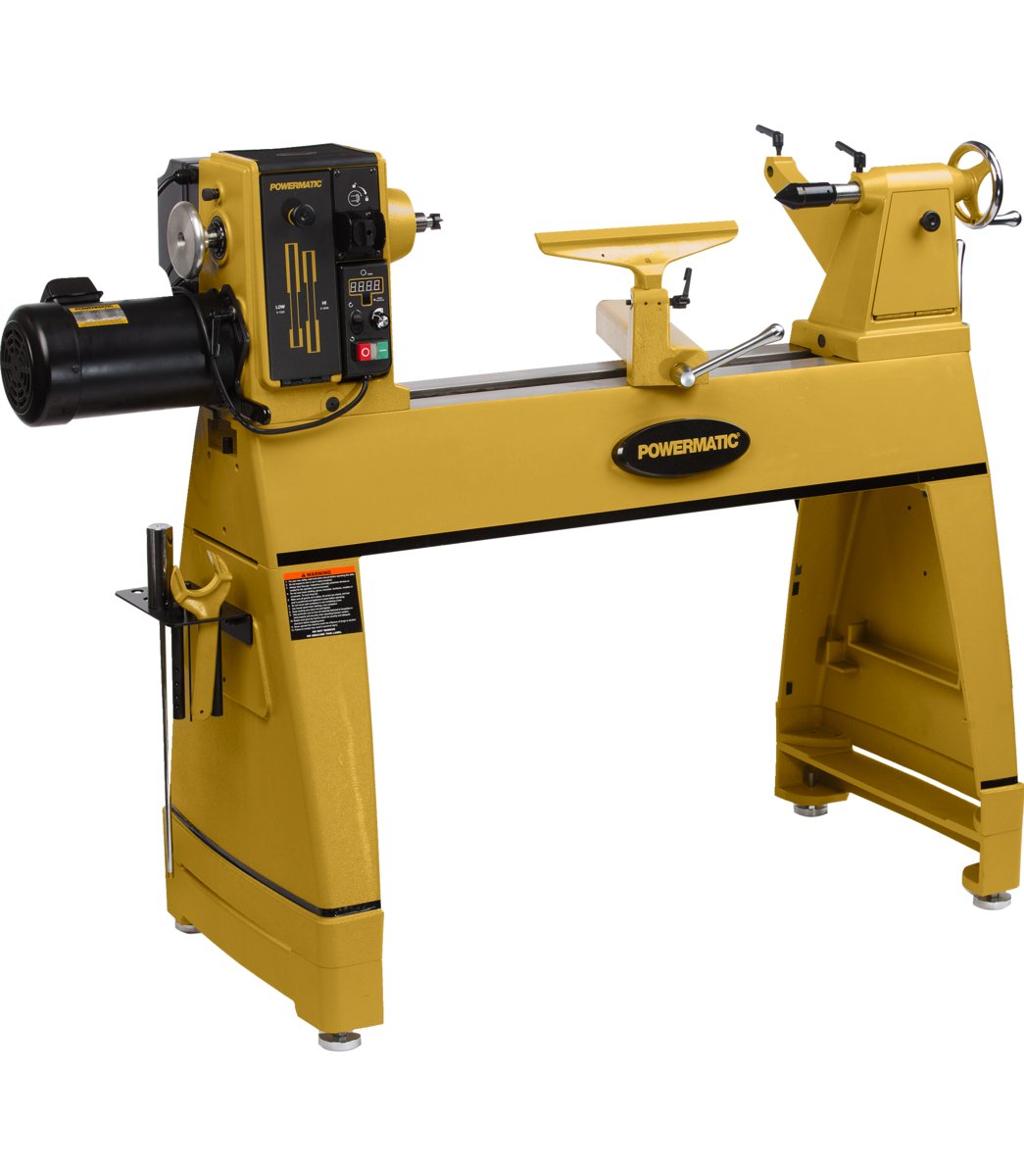

3520C Lathe, 2HP, 1PH, 220V
The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features.

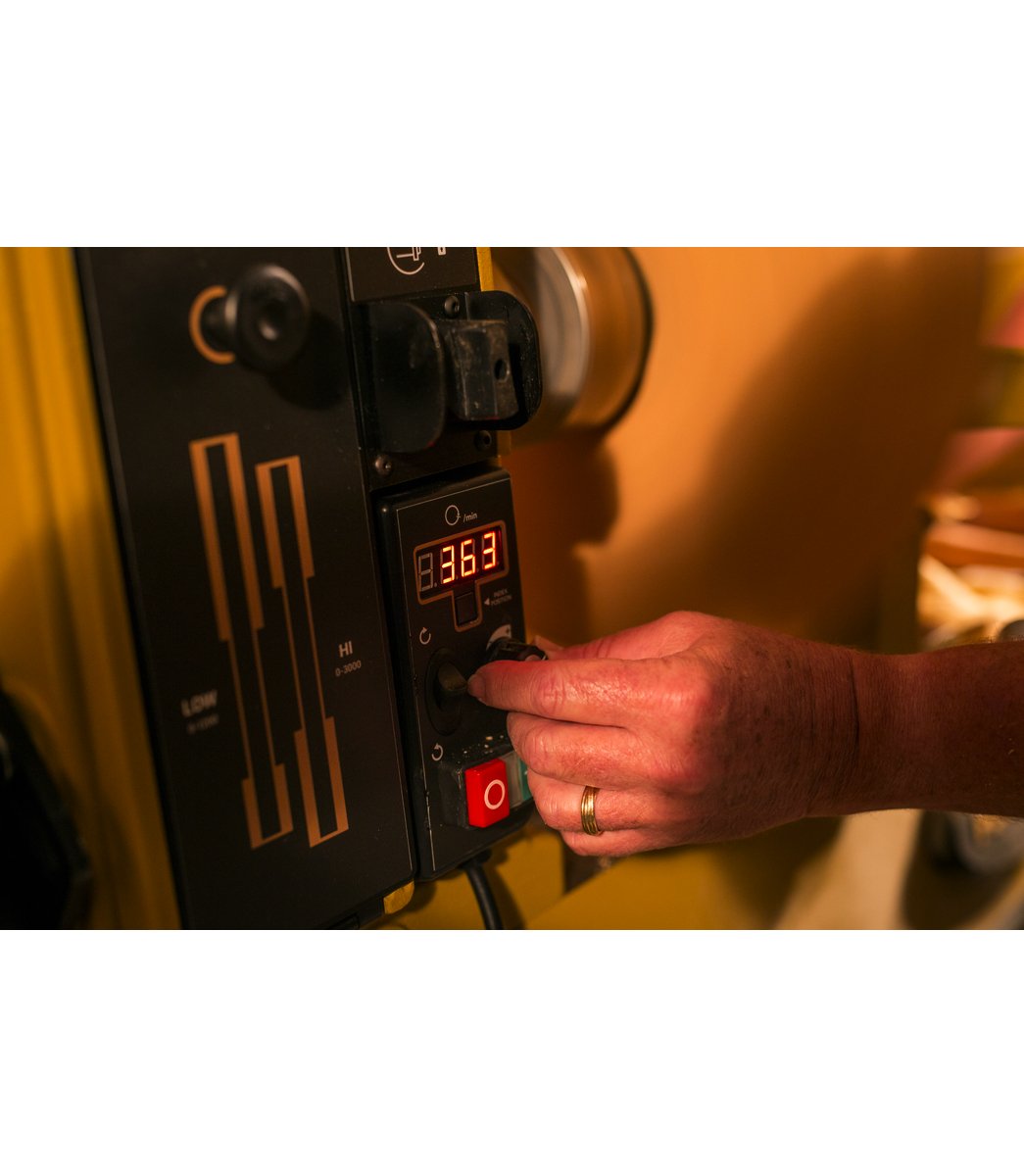

The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.
Features
Specifications
| Stock Number | 1353001 |
|---|---|
| Bed Construction | Cast Iron |
| Gross Weight (Lbs) | 770 |
| Motor Amps | 20 |
| Motor (HP) | 2.0 |
| Motor Phase | 3 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 220V Single Phase |
| Net Weight (Lbs.) | 726 |
| Overall Dimensions (L x W x H) (In.) | 69-1/2 x 36-1/2 x 47 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Swing Over Bed (In.) | 20 |
| Weight (Lbs.) | 726 |
