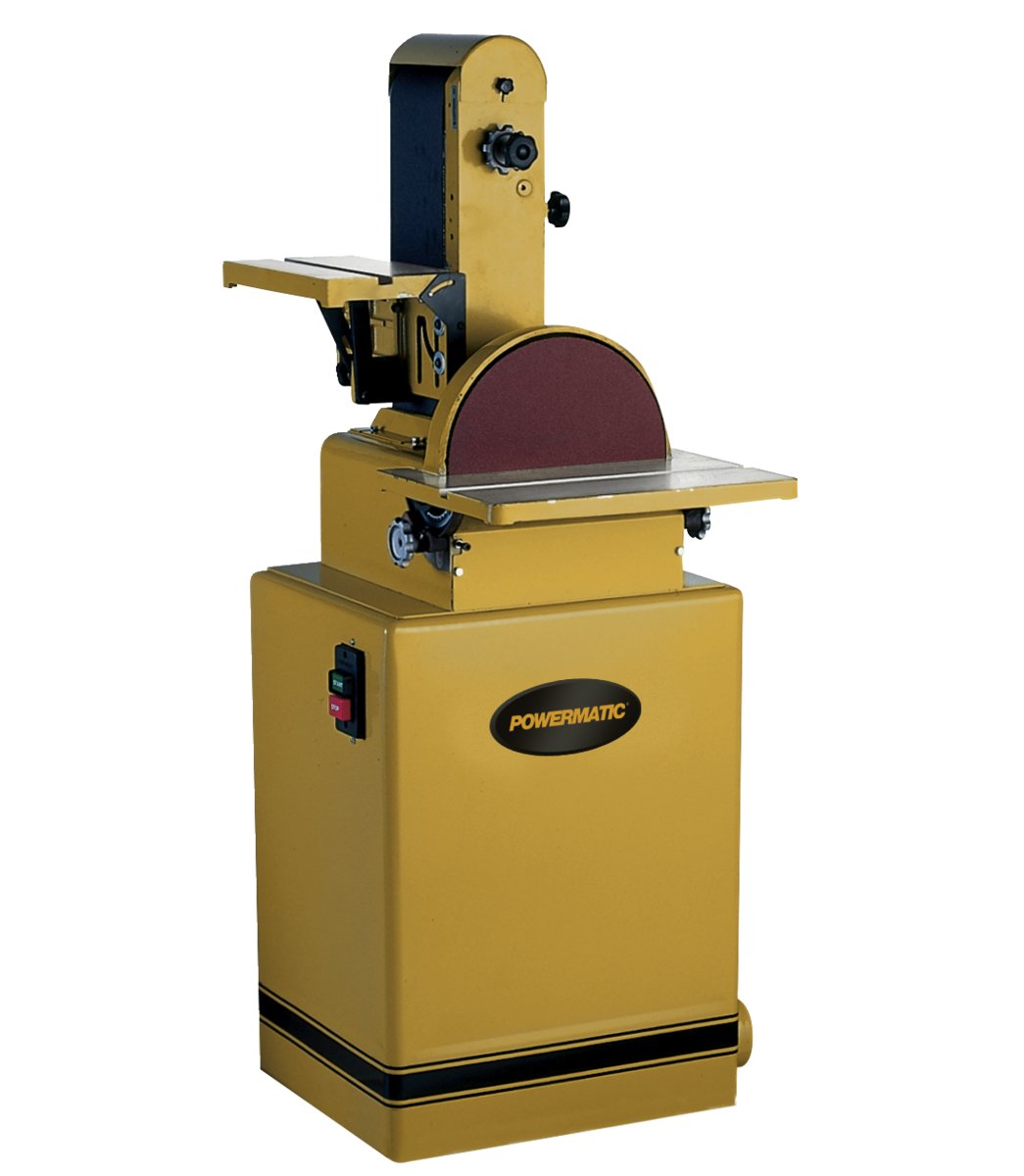

31A Belt/Disc Sander, 2HP 3PH 230/460V
SKU: PM9-1791292K
Loaded with features, the 31A Sander from Powermatic can tackle the most demanding tasks. Full cast iron construction is great for heavy woodworking.

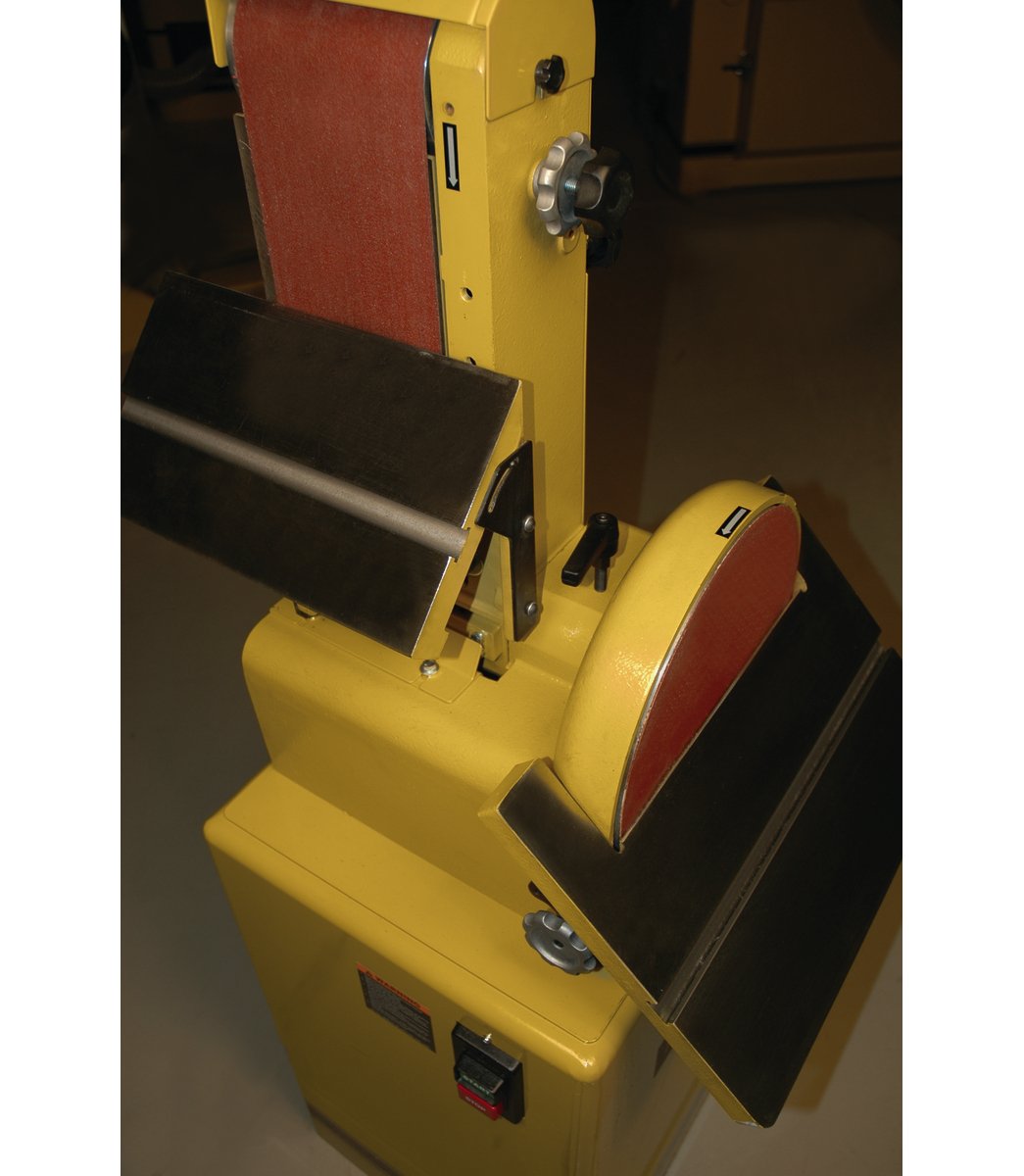

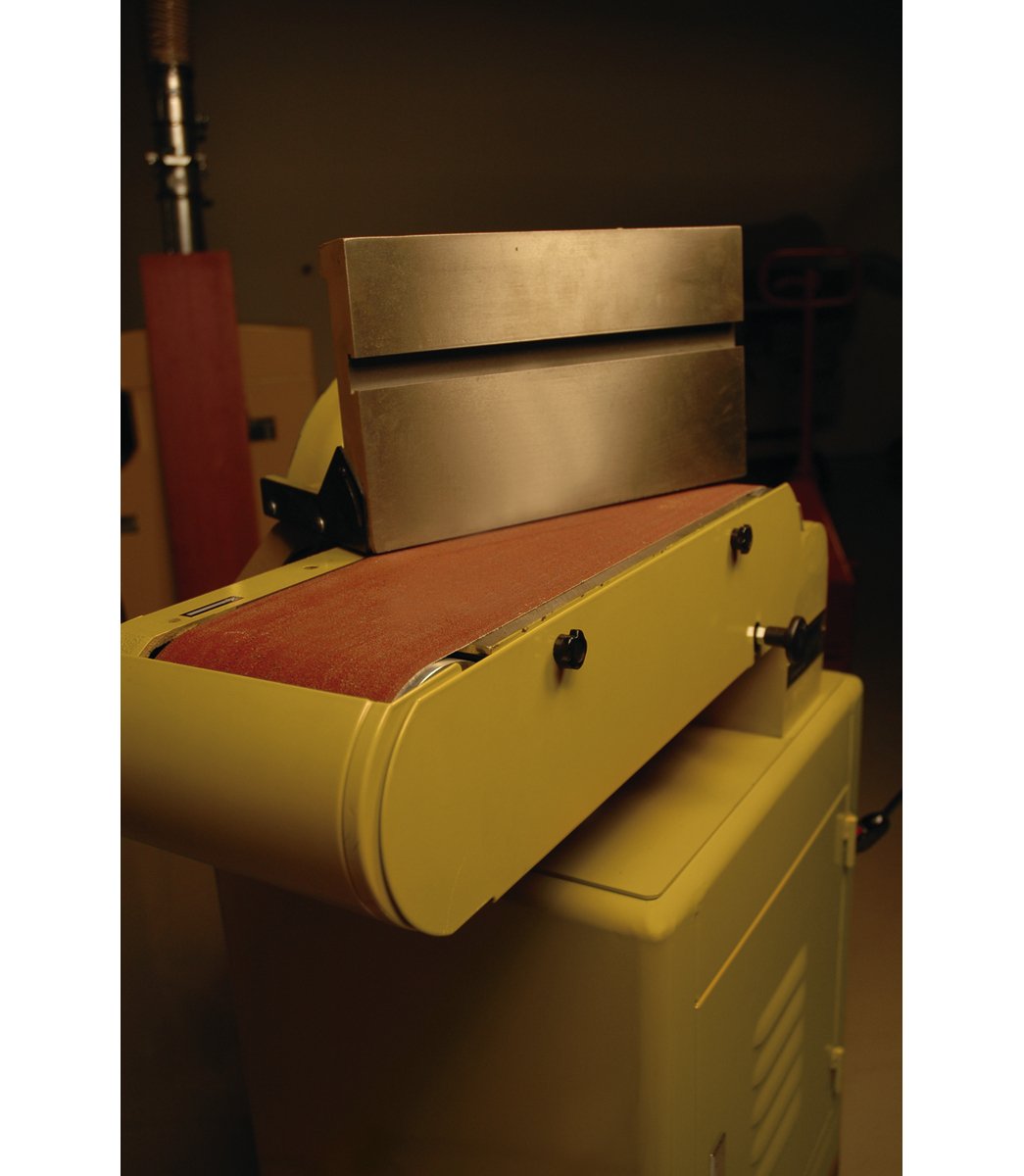

The integral dual dust port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.
Features
- 12" Disc is balanced for flat, even coverage
- 460V operation requires an additional 460V magnetic switch (part 31A-MSA-2)
- 6" x 48" sanding belt can be changed and adjusted quickly and easily
- Belt and disc tables are precision ground cast iron with miter slots for precision and rigidity
- Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
- Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
- Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
- Versatile belt and disc sanding allows for multiple sanding angles
Specifications
| Stock Number | 1791292K |
|---|---|
| Disc Diameter (In.) | 12.0000 |
| Disc Speed (RPM) | 2,375 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Amps | 7/3.5 |
| Motor Phase | 3 |
| Motor Power (HP) | 2 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Belt & Disc |
