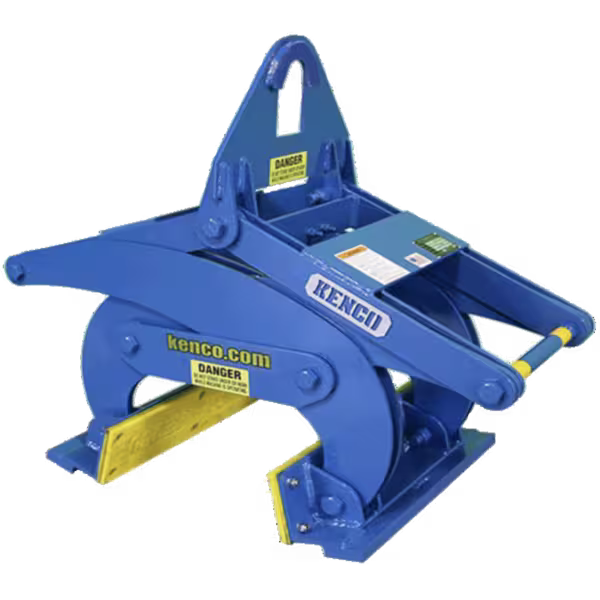

Kenco KL16000 Barrier Lifter

KL16000 Barrier Lift has a 6-to-12-inch grip range to handle 20-to-30-foot jersey wall easily with a 16,000-pound capacity

Specifications

• Capacity Rating: 16000 lbs.
• Grip Range: 4" - 12"
• Wall Length: 20' to 30'
• Lifter Weight: 750 lbs
• Shipping Dimensions: 47" x 36" x 40"
• Pad Size: 6" x 36"
• Actuator: Medium
• Recommended Rigging: KRM16800 Rigmax






  DESCRIPTION

  KL16000 BARRIER LIFT - PATENT: 6331025

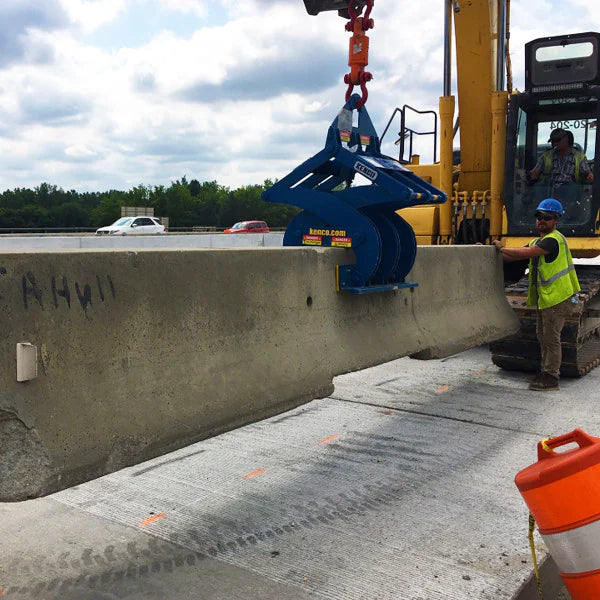

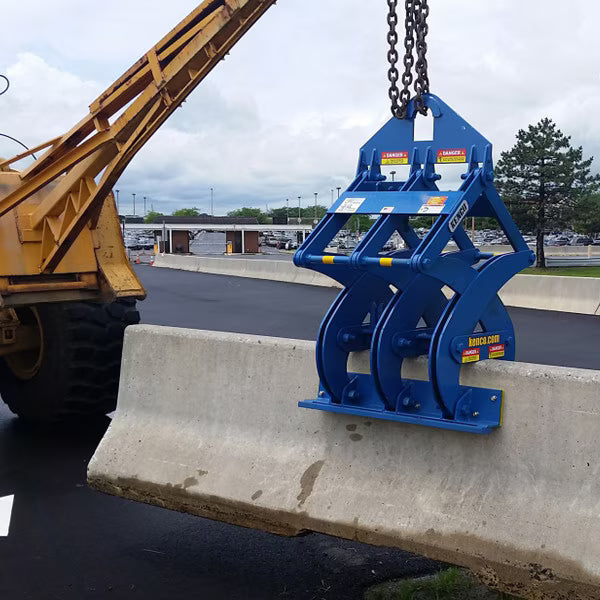

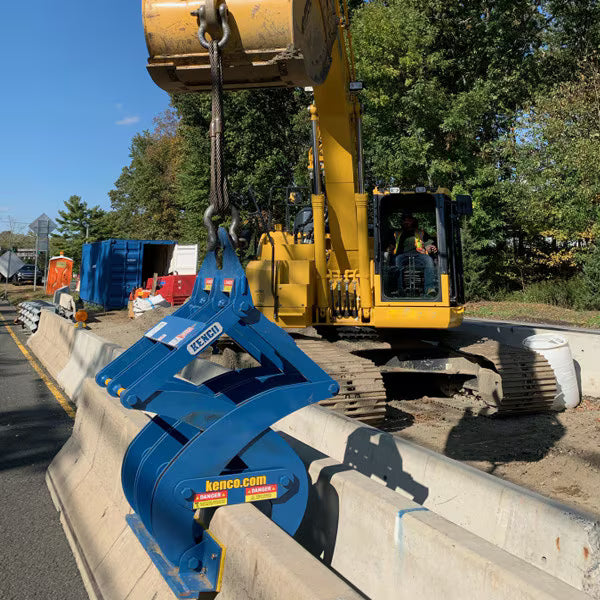

  The KL16000 Barrier Lift has a 6-to-12-inch grip range to handle 20-to-30-foot jersey wall easily. It has a 16,000-pound capacity and hooks up with our recommended RigMax. This patented wall lifting attachment works using scissor action and the specially designed actuator. These actions working seamlessly together allow the machine operator to unload wall directly from the truck and set it into position.

  Lift, move and place all types of large barrier wall without the need to hook up additional hydraulics. The Kenco barrier lifter automatically grabs and releases the wall. Just position and rest the Kenco Barrier Lift KL16000 onto the wall top. This causes the 'actuator' to work, thus beginning the lifting process. The barrier tongs clamp tightly onto the wall surface without need for auxiliary hydraulic hookups. The swiveling pad angles adjust to match the slope of the wall. The elastomer pads securely grab onto the concrete surface. The lifting attachment grips the wall firmly as it is raised and placed into position. Once the wall has been set firmly back on the ground and tension is released, the tongs release automatically. This action continues with each cycle.

  MODEL	WEIGHT	CAPACITY	GRIP RANGE	USAGE
  KL9000	600 Pounds 272.155 kg	9000 Pounds 4082.331 kg	6-12 Inches 15.24 - 30.48 cm	10'-16' Concrete Barrier Wall 3.048 - 4.876 m
  KL9K12T19FLL	555 Pounds 249.48 kg	9000 Pounds 4082.331 kg	12-19 Inches 30.48 - 48.26 cm	Florida Low Profile Wall
  KL12000	800 Pounds 362.87 kg	12000 Pounds 5443.108 kg	6-12 Inches 15.24 - 30.48 cm	16'-20' Concrete Barrier Wall 4.876 - 6.096 m
  KL12000TLP	850 Pounds 385.55 kg	12000 Pounds 5443.108 kg	28 Inches 71.12 cm	Texas Low Profile Wall
  KL16000	750 Pounds 340.19 kg	16000 Pounds 7257.477 kg	6-12 Inches 15.24 - 30.48 cm	20'-30' Concrete Barrier Wall 6.069 - 9.144 m
  KL30000	1050 Pounds 476.27 kg	30000 Pounds 13607.772 kg	6-12 Inches 15.24 - 30.48 cm	30'-40' Concrete Barrier Wall 9.144 - 12.192 m
  KL40000	1850 Pounds 839.14 kg	40000 Pounds 18143.696 kg	6-12 Inches 15.24 - 30.48 cm	30'-40' Concrete Barrier Wall 9.144 - 12.192 m
