Tilting Drum Rings

SKU# TDR-30-G

$100⁹⁴

Shipping calculated at checkout.

Size

30 Gallon 55 Gallon

Material

Carbon Galvanized Steel 304 Stainless Steel Carbon Steel

Product variants

Safe & Secure Payments.

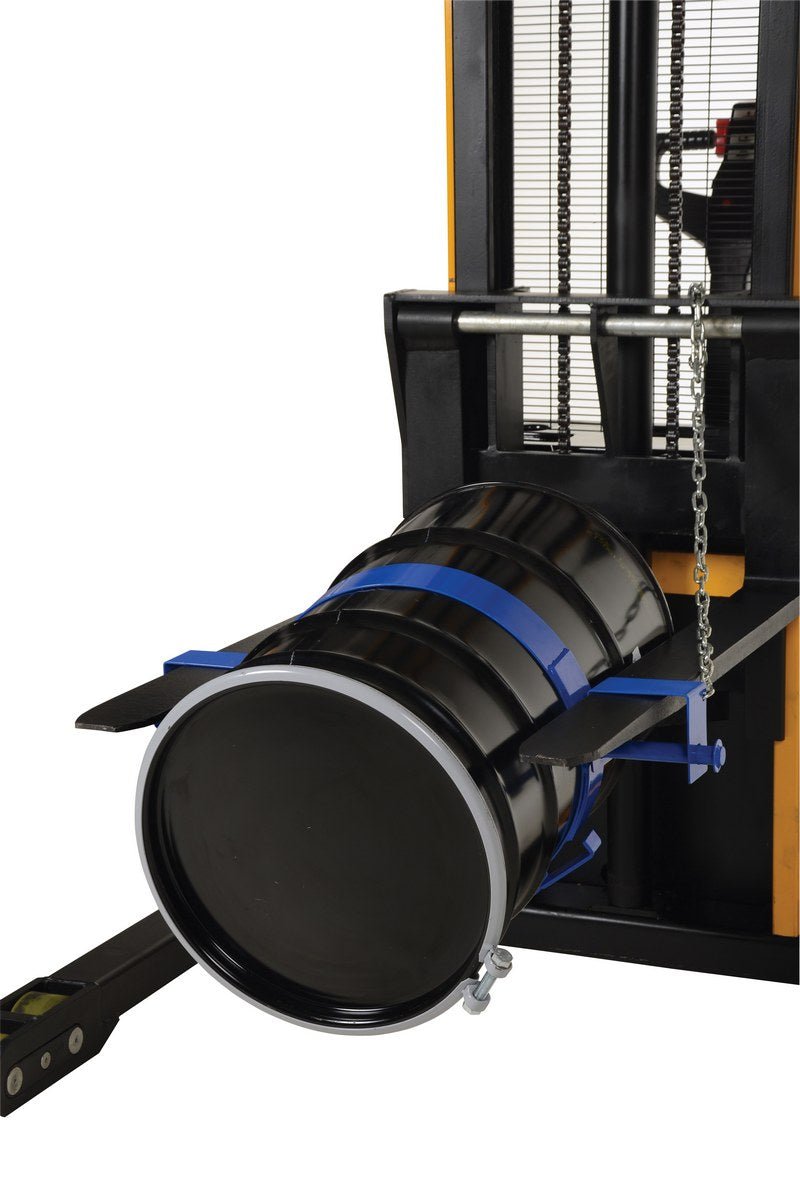

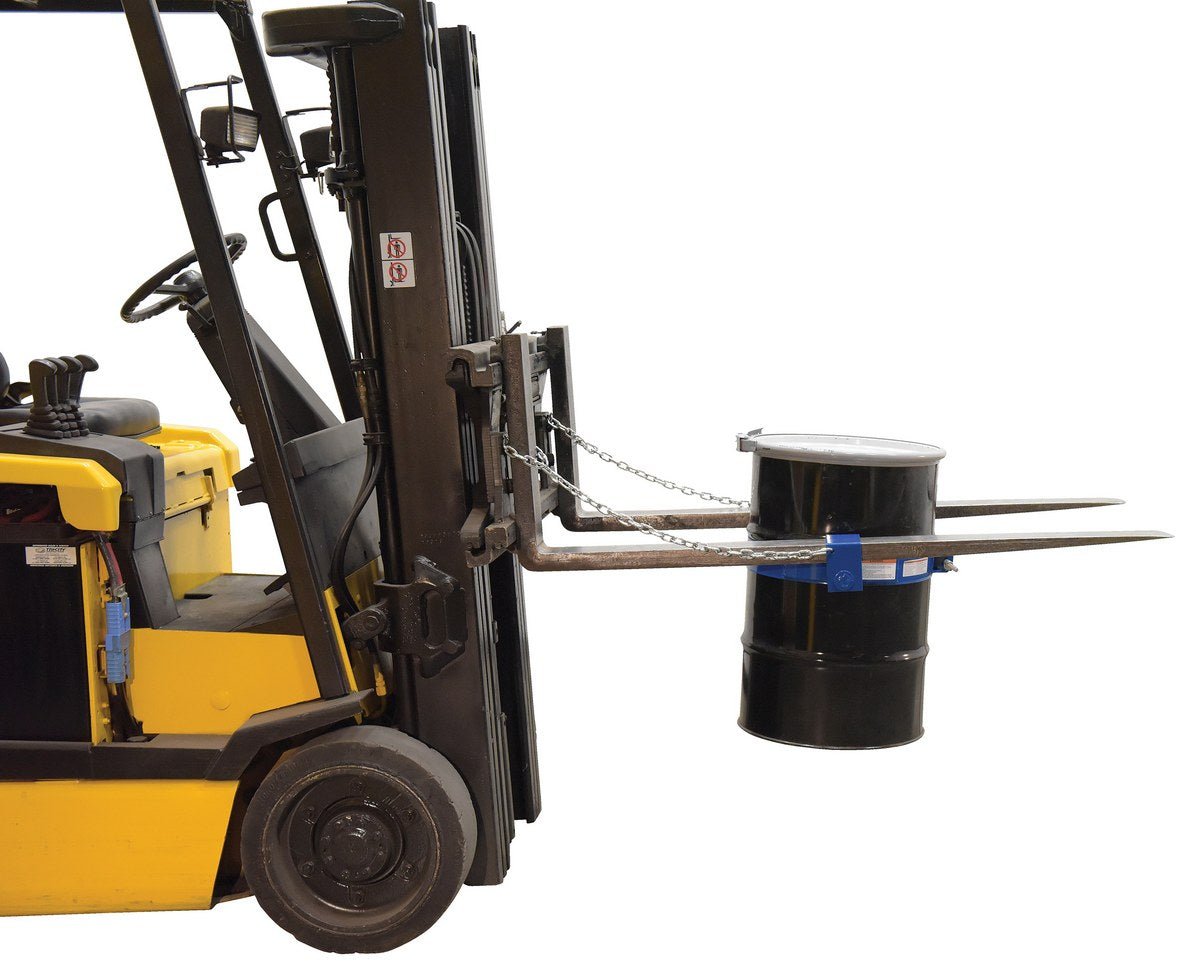

Easily transport steel drums with your fork truck and the Tilting Drum Ring.

30 Gallon, Carbon Galvanized Steel out of stock until approx. 11/17/2023

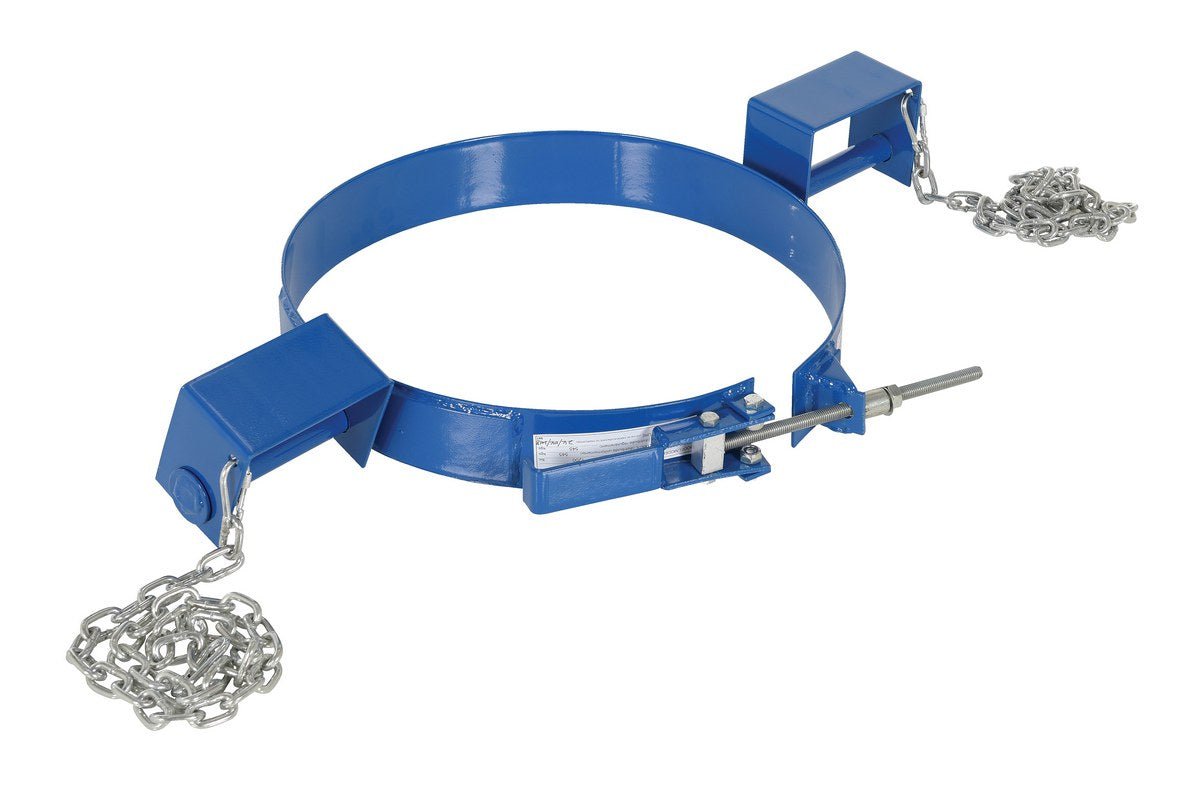

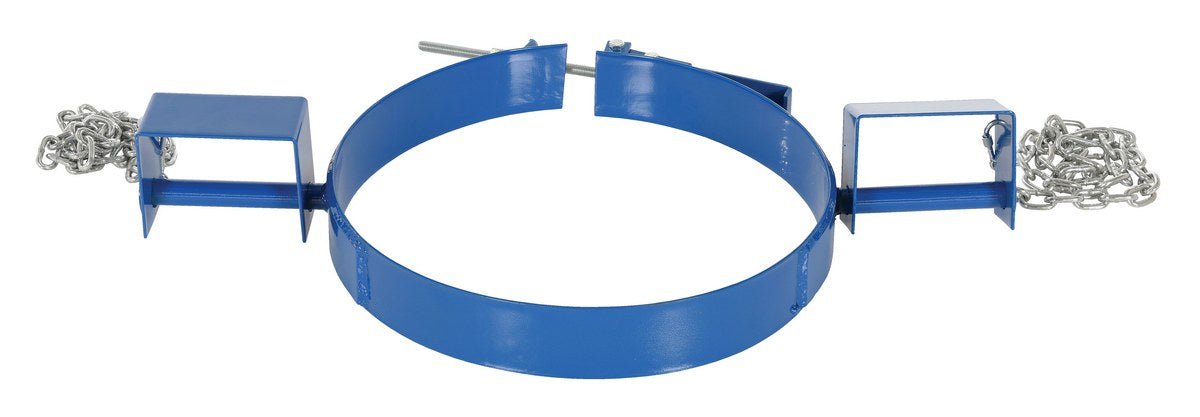

Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Usable fork openings are 5-1/4"W x 2-7/8"H each. Welded steel construction.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Tilting Drum Rings
Model	Image	PDF	Acceptable Drum Types	Material & Finish	Capacity (lbs)	Weight (lbs)
TDR-30			30 Gallon Steel	Powder Coat Steel	1,200	22
TDR-55			55 Gallon Steel	Powder Coat Steel	1,200	24
TDR-30-G			30 Gallon Steel	Galvanized Carbon Steel	1,200	23
TDR-55-G			55 Gallon Steel	Galvanized Carbon Steel	1,200	24
TDR-30-SS			30 Gallon Steel	Grade 304 Stainless Steel	1,200	24
TDR-55-SS			55 Gallon Steel	Grade 304 Stainless Steel	1,200	25
* Capacity is based on full drums \| Half-full drums are rated at 600 lbs.
