Portable Offset Jib Cranes

SKU# JIB-CBX-25-8-10

$2,968⁹⁷

Shipping calculated at checkout.

Portable Offset Jib Crane Options

18" Base - 96"/ 6" ( I Beam) - 250 Pound Capacity 18" Base - 120"/ 6" ( I Beam) - 250 Pound Capacity 18" Base - 96"/ 6" ( I Beam) - 500 Pound Capacity

Product variants

Safe & Secure Payments.

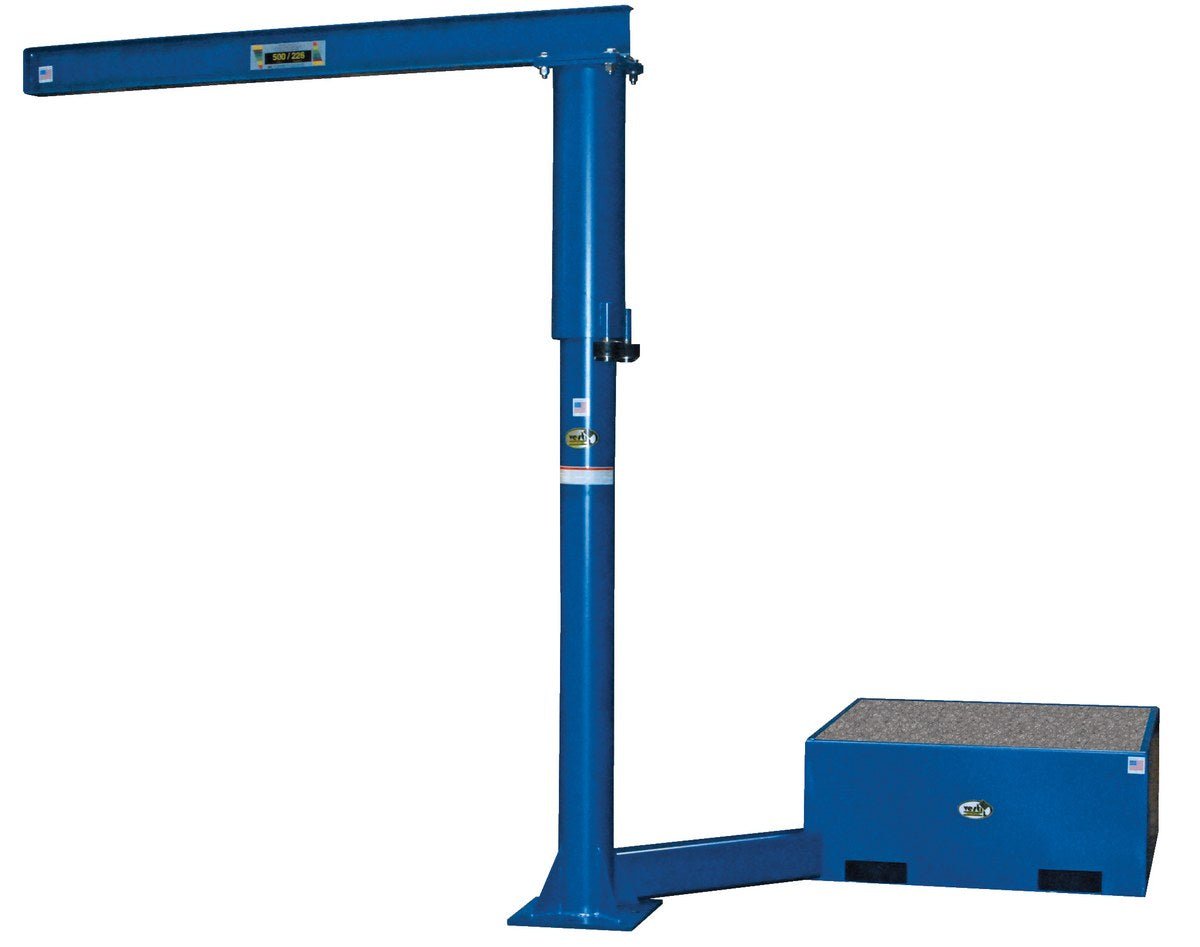

Portable Offset Jib Cranes allows for easy transportation of jib crane with fork truck

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16" W x 42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7-1/2"W x 2-1/2"H usable on 24" centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Portable Offset Jib Cranes
Model	PDF	Uniform Capacity	I-BEAM Length/Height	Base Height	I-BEAM Flange Width	Wt. (lbs)
JIB-CBX-25-8-10		250	96"/ 6"	18"	4"	1240
JIB-CBX-25-10-10		250	120"/ 6"	18"	4"	1193
JIB-CBX-50-8-10		500	96"/ 6"	18"	4"	1169
JIB-CBX-50-10-10		500	120"/ 10-1/8"	36"	4"	1446
JIB-CBX-100-8-10		1,000	96"/ 10-1/8"	36"	4"	1360
JIB-CBX-18-B		Additional Offset Steel Base- 18"H- Empty				532
JIB-CBX-36-B	-	Additional Offset Steel Base- 36"H-Empty				655
Portable Offset Jib Cranes with Concrete Base
JIB-CBX-25-8-10-BC		250	96"/ 6"	18"	4"	3527
JIB-CBX-25-10-10-BC		250	120"/ 6"	18"	4"	3570
JIB-CBX-50-8-10-BC		500	96"/ 6"	18"	4"	3527
JIB-CBX-50-10-10-BC		500	120"/ 10-1/8"	36"	4"	6268
JIB-CBX-100-8-10-BC		1,000	96"/ 10-1/8"	36"	4"	6234
JIB-CBX-18-BC		Additional Offset Steel Base- 18"H-With Concrete				2870
JIB-CBX-36-BC		Additional Offset Steel Base- 36"H- With Concrete				5449
