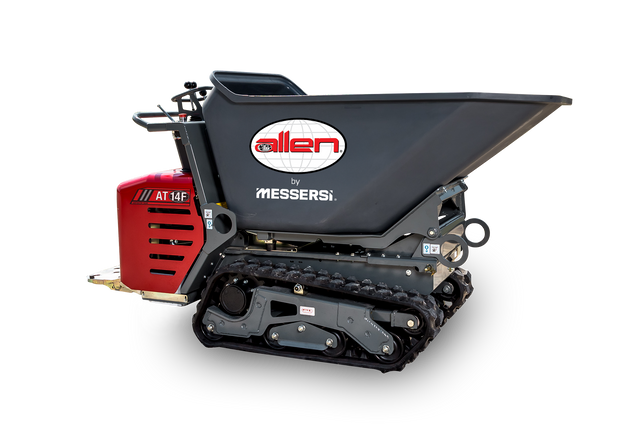

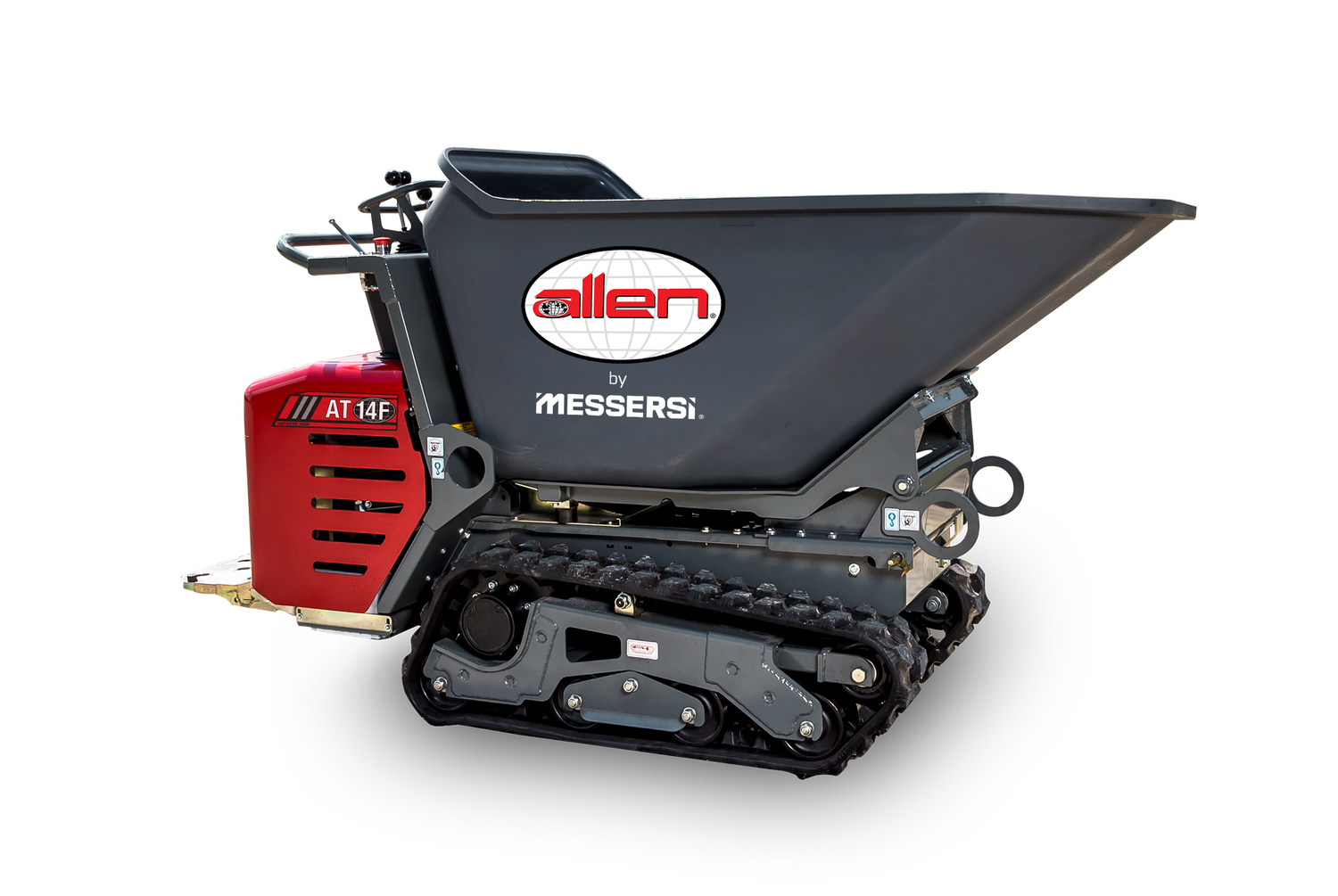

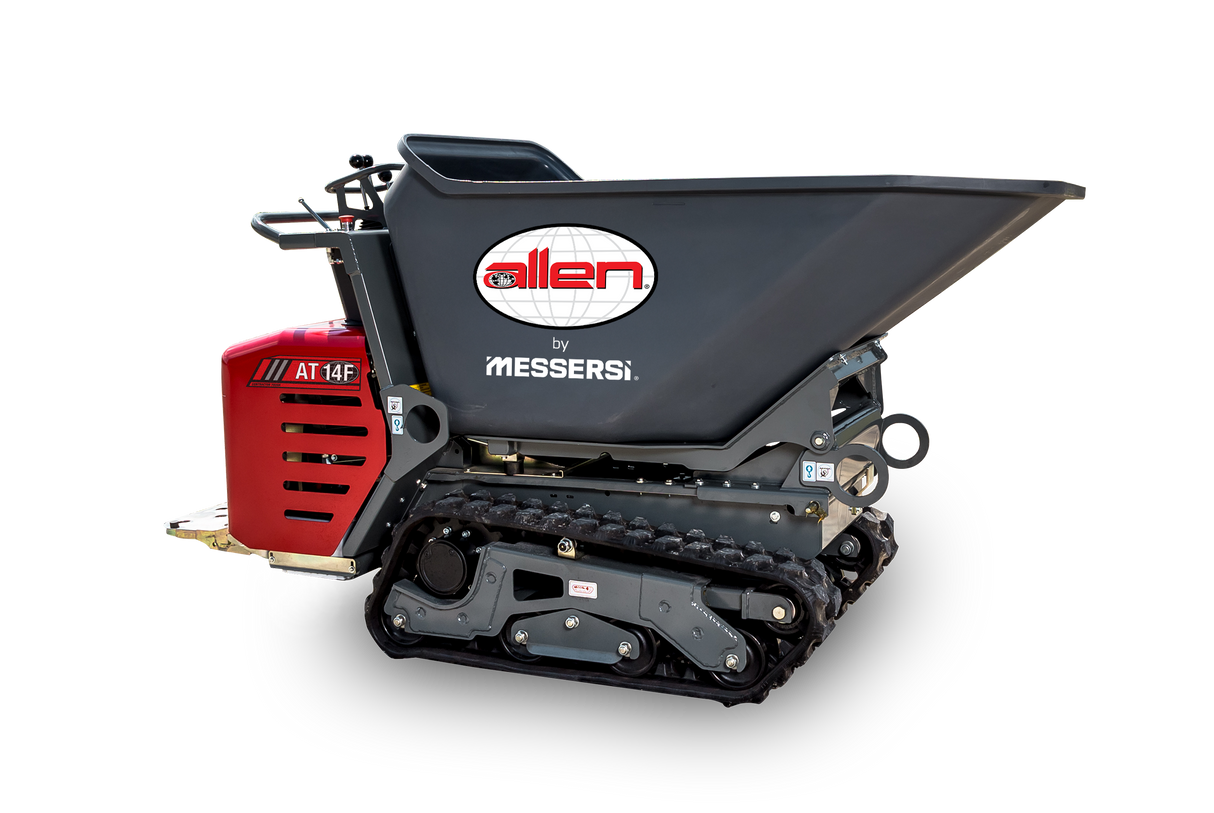

AT14F Track Buggies

The AT14F rubber track buggy is a rugged and compact machine that will haul and dump any bulk material.

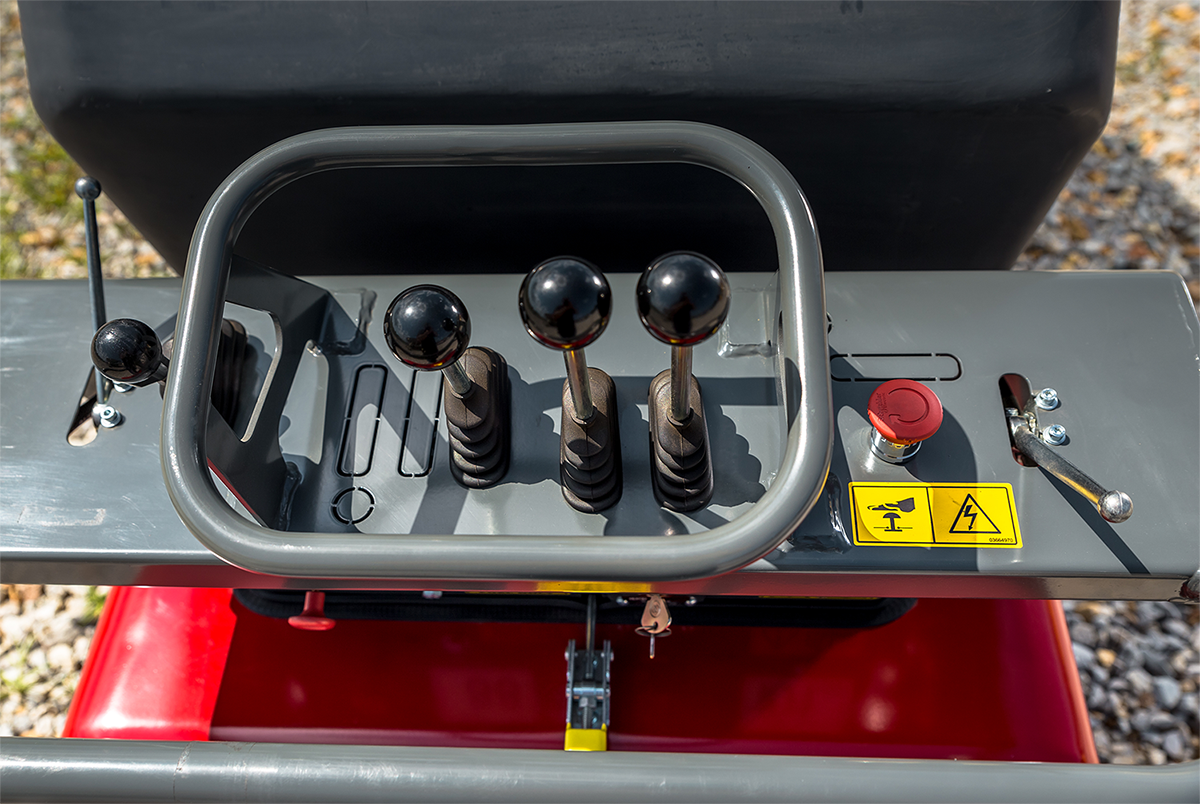

This machine comes equipped with simple intuitive controls, a 20 hp engine, and a 14 cubic foot poly bucket. It is a perfect fit for concrete workers, landscapers, contractors or anyone else who needs to haul or dump material on a regular basis.

Specifications

ENGINE HONDA GX630 / 688 cc
HORSEPOWER CLASS 20 hp / 15 kW
STARTER Electric
FUEL TYPE Gasoline
FUEL CAPACITY 3 gal / 11.35 L
TOP SPEED WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph
PAYLOAD 2,100 lb. / 952 kg
BUCKET CAPACITY 14 cu. ft. / 0.39 cu. m
DUMP ANGLE 90º
DUMP/RETURN SPEED EMPTY 4 seconds
PIVOT ANGLE 0º
WEIGHT 1,420 lb. / 644 kg
DIMENSIONS (L X W X H) 98 x 31.5 x 52.5 in / 248.9 x 80 x 133.4 cm
