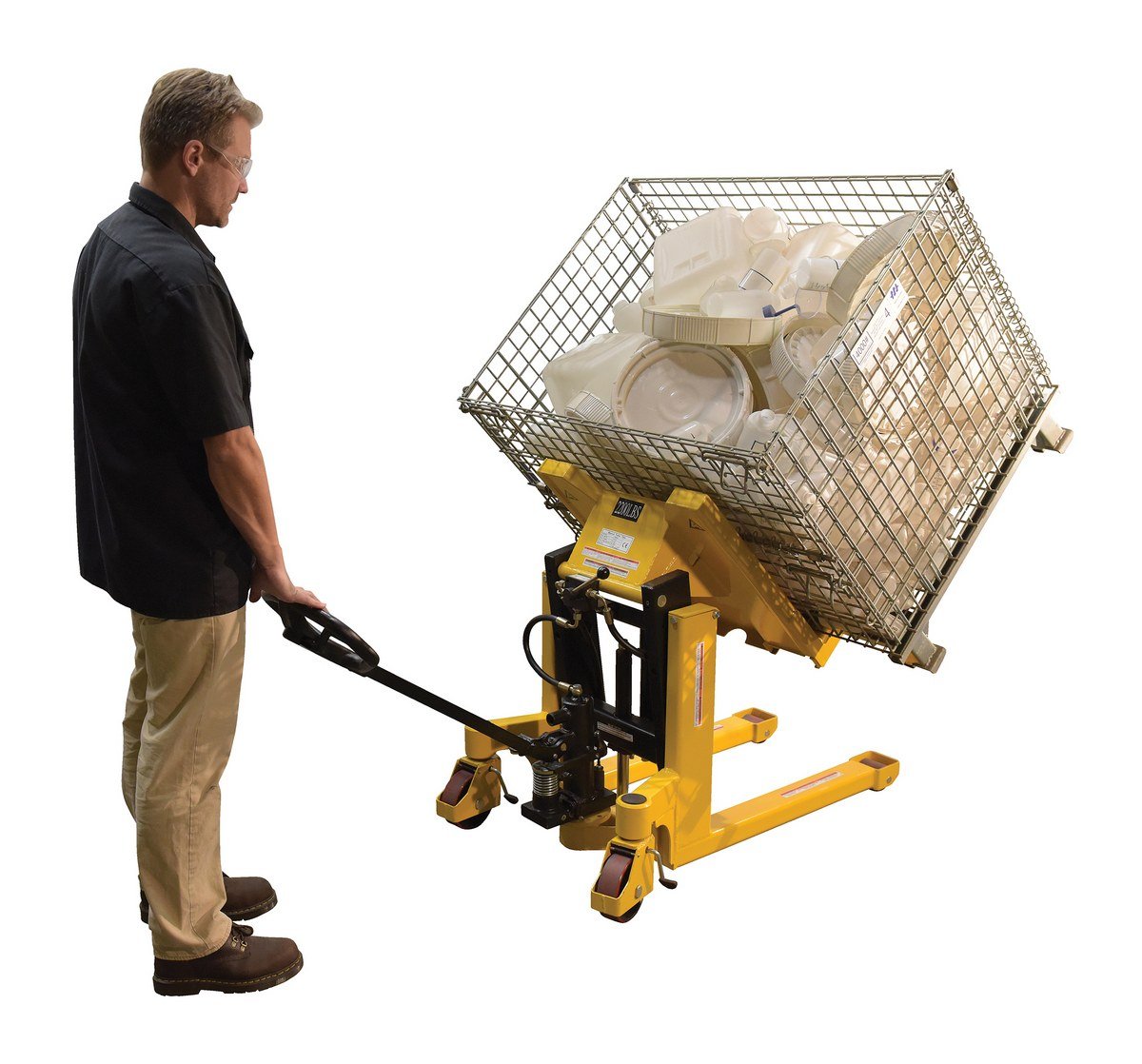

Manual Tilt Master for lifting, tilting, and transporting crates, boxed, and pallets with an open bottom

Designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" polyurethane swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

Manual Tilt Master
Model Image PDF's Capacity
(lbs)
Vertical
Lift
Height
Lowered
Fork
Height
Fork
Length
Overall
Width
Wt.
(lbs)
TM-22-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,200 11-1/4" 3-1/2" 31-1/2" 25-1/4" 425
Stainless Steel Tilt Master
TM-22-M-SS tilt_m4.jpg 2,200 59-1/2" 3-1/2" 31-1/2" 24-1/4" 433

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
