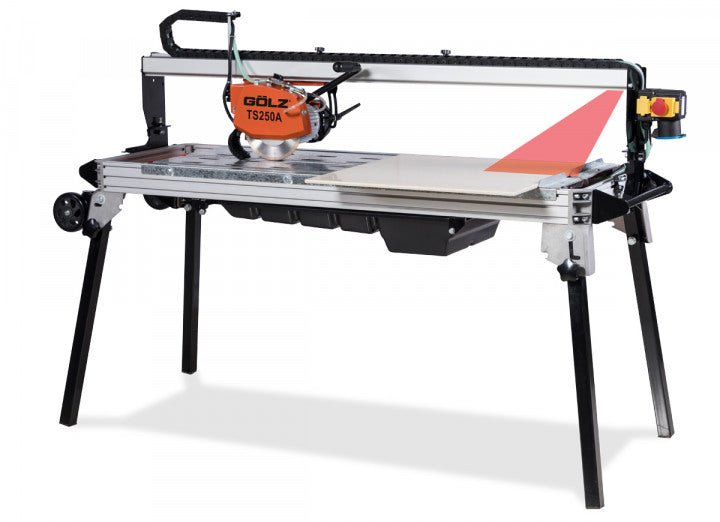

TS250A Professional Aluminum Tile Saw

BladeØ 250 mm (10”) Cutting length 1300 mm (51”)

• Incl. Laser cutting device
• Cutting head adjustable up to 45° (Jolly cutting)
• Removable water tub, easy for cleaning
• Foldable legs
• Electric water pump with quick coupling, easy for changing the pump
• Removable cutting table, easy for cleaning
• Angle stop
• Tool-free cutting head interlocksystem
• Transport handle and wheels for easy moving and loading
• Ball bearing and retractable cutting head

Specifications

Motor	Electric, 230V, 50Hz, IP54		Electric, 115V, 50Hz, IP54
Power	1,3 KW
Max. cutting depth	65 mm(2,5”)
Max. blade size	250 mm(10”)
Arbor hole	5/8"
Cutting length	1200 mm (1300 mm)/47” (51”)
Shaft speed	2.800 min-1
45° miter-cut	Built-In
Water pump	S2, 230 V, 50 Hz, 55 Watt
Blade flange size ø	60 mm
Transport wheels	yes
Cutting table (LxW)	1300 × 490 mm
Dimensions (LxWxH)	1640×540×1299 mm
Weight	72 kg (158lbs)
Order-Nr.	0289 250 1100		0289 250 1200

Accessories
Side table (500×600mm)		0289 250 9017
Spare water pump with connector plug		0289 400 9002
T-Lock-System (Tile Locking System)		0289 250 9018
Side tile support 1m/39,4”		0289 250 9019
