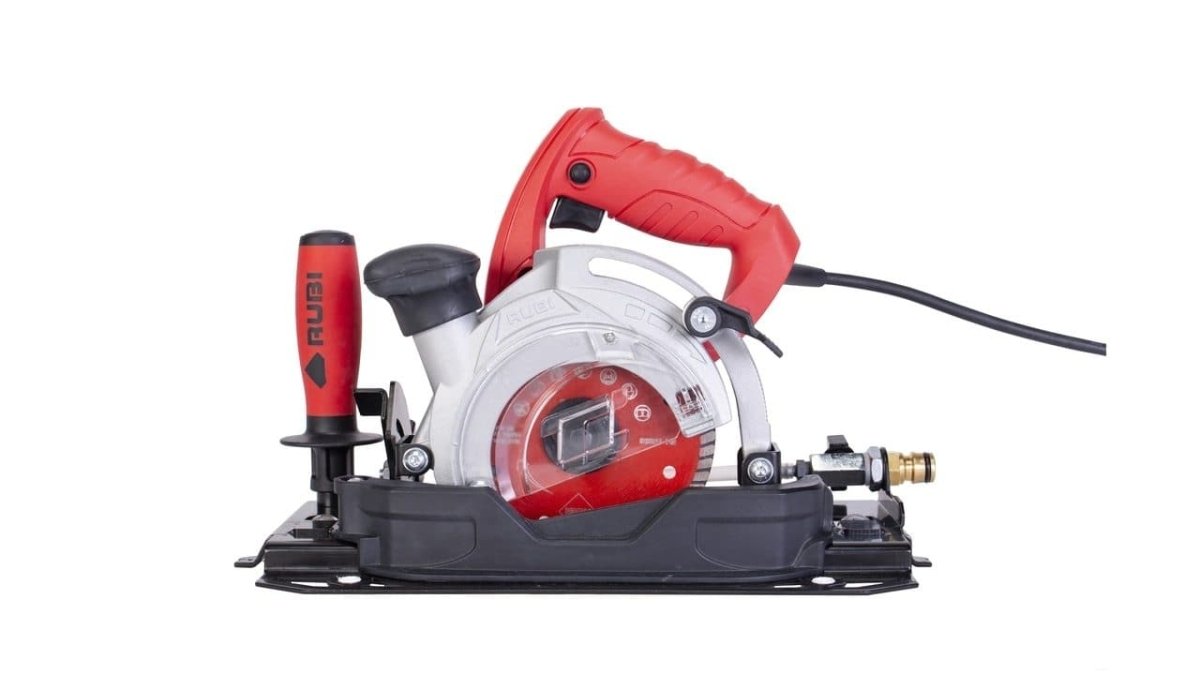

Circular saw, smooth and precise, ideal for large format sheets

The circular cutter TC-125 is part of the SLAB system for ceramic sheet and large format tiles. For the correct operation of the TC-125, the use of the SLIM cutting guides is NECESSARY. Thanks to this guidance system, we can obtain a precise and smooth cut. The sliding skid, carbon steel, of the TC-125, incorporates stainless steel radial bearings, with a very simple adjustment system that allows to have the machine in perfect condition. The circular cutter TC-125 of RUBI, has a double system of reduction and control of the dust generated during cutting. Either, by means of its connection to a vacuum cleaner (dry cut) or, through the intake of water.


The connection to the vacuum cleaner is 32 mm, but an adapter is included for other diameters. The water intake consists of a quick connection for 16 mm hose and a rubber stopper, which covers the intake of the vacuum cleaner and makes, during wet cutting, secondary grip functions, improving ergonomics during cutting. The head of the TC-125 is foldable up to 45º and adjustable in height. In this way, it is possible to miter and obtain special and more precise cuts (it must be taken into account that the thickness of the cut varies according to the diameter of the disc).

For miter cutting, the TC-125 includes an additional handle that increases control and visibility during cutting and improves work ergonomics. You can use two disc diameters: 115 and 125 mm (see cutting thickness for each diameter). The switch of the TC-125 has a safety lock that prevents unintentional starting, and an electric cable with PRCD to protect the equipment from power surges. For the design of the TC-125. the incorporation of a disc protector with a quick opening lid has been taken into account, which facilitates the disc change and reduces the particle projection. In addition, a side protector that improves the performance of the dust control system. With the TC-125 circular cutter, there is no cutting limit that stops the projects of the professional setters from all over the world.

Main Features

  • Accurate cut thanks to the Slim System guides. Equipped with a carbon steel slide on adjustable stainless steel radial bearings.
  • Double reduction system / dust control. Dry and wet cut.
  • Cutting head adjustable in height (cutting effect) and foldable from 0 ° to 45 °. (miter). FAST adjustment system.

Materials

  • For cutting ceramic sheet and all types of ceramic tile. Suitable for natural stone and sintered stone. Especially suitable for large format pieces.

Features

  • Compatible with Ø125 or Ø115 mm discs. (Suitable for discs with reinforcement bar, type TVA).
  • Switch with SECURITY lock. Avoid the start-up involuntary. Electric cable with PRCD (differential).
  • Direct connection to vacuum AS-30 PRO (Ø32mm). Includes adapter for other models and brands (Ø37, 42 and 50 mm).
  • Regulation valve and quick connection for hose ** (Ø16 mm). Rubber stopper for the suction outlet. IMPROVES ergonomics in wet cutting.
  • Injected aluminum disc protector with transparent polycarbonate lid with opening and quick closing system. IT FACILITATES the disc change and MINIMIZES the projection of particles and water.
  • Tilting side guard for miter cutting. REDUCES water splash and IMPROVES dust aspiration.
  • Includes TCR-125 SUPERPRO blade (dry cut), carrying case and accessories. IT FACILITATES transport and handling.

TC-125 230V 50Hz Circular Saw
  • Ref. -50953
  • EAN-13 -8413797509533
  • Cutting height -20-25 mm
  • Miter Thickness cut -14-18 mm
  • Power supply -220-240V 50-60Hz
  • Revolutions per minute -13800
  • Outside diameter -115-125 mm
  • Inside diameter -22,2 mm
  • With carrying case -
  • Length Width Height (machine overall dimensions) -330x239x206 cm
  • Weight with carrying case -14 kg
  • Units per box -1
Circular Cutting Machine TC-125 120V 60Hz USA
  • Ref. -51957
  • EAN-13 -8413797519570
  • Cutting height -20-25 mm
  • Miter Thickness cut -14-18 mm
  • Power supply -110-130V 50-60Hz
  • Revolutions per minute -13800
  • Outside diameter -115-125 mm
  • Inside diameter -22,2 mm
  • With carrying case -
  • Length Width Height (machine overall dimensions) -330x239x206 cm
Weight with carrying case -14 kg
  • Units per box -1
  • format_align_justifyShow barcode
TC-125 Tile Saw 230V 50Hz UK
  • Ref. -51959
  • EAN-13 -8413797519594
  • Cutting height -20-25 mm
  • Miter Thickness cut -14-18 mm
  • Power supply -220-240V 50-60Hz
  • Revolutions per minute -13800
  • Outside diameter -115-125 mm
  • Inside diameter -22,2 mm
  • With carrying case -
  • Length Width Height (machine overall dimensions) -330x239x206 cm
  • Weight with carrying case -14 kg
  • Units per box -1
