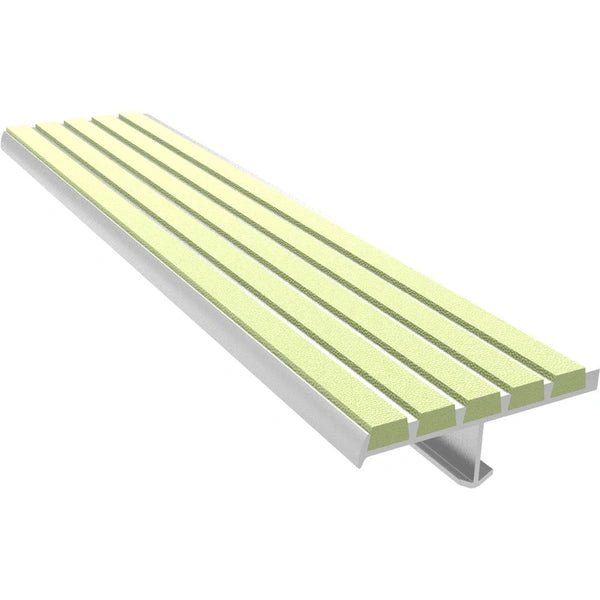

Photoluminescent Ribbed Bar Abrasive Nosing

Name: Photoluminescent Ribbed Bar Abrasive Nosing
Brand: Babcock-Davis
SKU: BSTSB
Availability: InStock

SKU# BSTSB

Call for Pricing

Shipping calculated at checkout.

2-3 Week Lead Time

Safe & Secure Payments.

Economical and easy to install, Babcock-Davis' Ribbed Bar Abrasive Nosing is designed for stairs and is perfect for indoor and outdoor poured concrete stair applications where extra safety is desired or required by code.

The ribbed abrasive grit can be customized for multi-color treads.

Features

Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.

Specifications

Model	BSTSB
Channel	Extruded Aluminum
Color	Photoluminescent
Application	Concrete Poured, Steel Pan, Terrazzo or Wood
Tread	Ribbed Bar Abrasive
Width	1-7/8", 3" or 4"
Mounting	Extruded Anchor or Drilled Holes
Nosing	Short, Short Tipped, Long, or Angled
Compliance	California Title 24, Section 3306
Options	Vision Line, Mitered Cuts, Painted Undersides and Taped Tops
Warranty	1 Year

Options

Download Stair Treads + Nosing Options

Colors shown give only an indication of shade.

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL	WIDTH	TREAD	INSTALL
BSTSB-C1.875E	1-7/8"	Short Nose	Cast-In, Extruded Anchor
BSTSB-C1.875D	1-7/8"	Short Nose	Drilled Hole, Mech. Fastened
BSTSB-P1.875E	1-7/8"	Short Tipped Nose	Cast-In, Extruded Anchor
BSTSB-L1.875E	1-7/8"	Long Nose	Cast-In, Extruded Anchor
BSTSB-L1.875D	1-7/8"	Long Nose	Drilled Hole, Mech. Fastened
BSTSB-A1.875D	1-7/8"	Angled - Long Nose	Drilled Hole, Mech. Fastened
BSTSB-C3E	3"	Short Nose	Cast-In, Extruded Anchor
BSTSB-C3D	3"	Short Nose	Drilled Hole, Mech. Fastened
BSTSB-P3E	3"	Short Tipped Nose	Cast-In, Extruded Anchor
BSTSB-L3E	3"	Long Nose	Cast-In, Extruded Anchor
BSTSB-L3D	3"	Long Nose	Drilled Hole, Mech. Fastened
BSTSB-A3E	3"	Angled - Long Nose	Cast-In, Extruded Anchor
BSTSB-A3D	3"	Angled - Long Nose	Drilled Hole, Mech. Fastened
BSTSB-C4E	4"	Short Nose	Cast-In, Extruded Anchor
BSTSB-C4D	4"	Short Nose	Drilled Hole, Mech. Fastened
BSTSB-P4E	4"	Short Tipped Nose	Cast-In, Extruded Anchor
