This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available

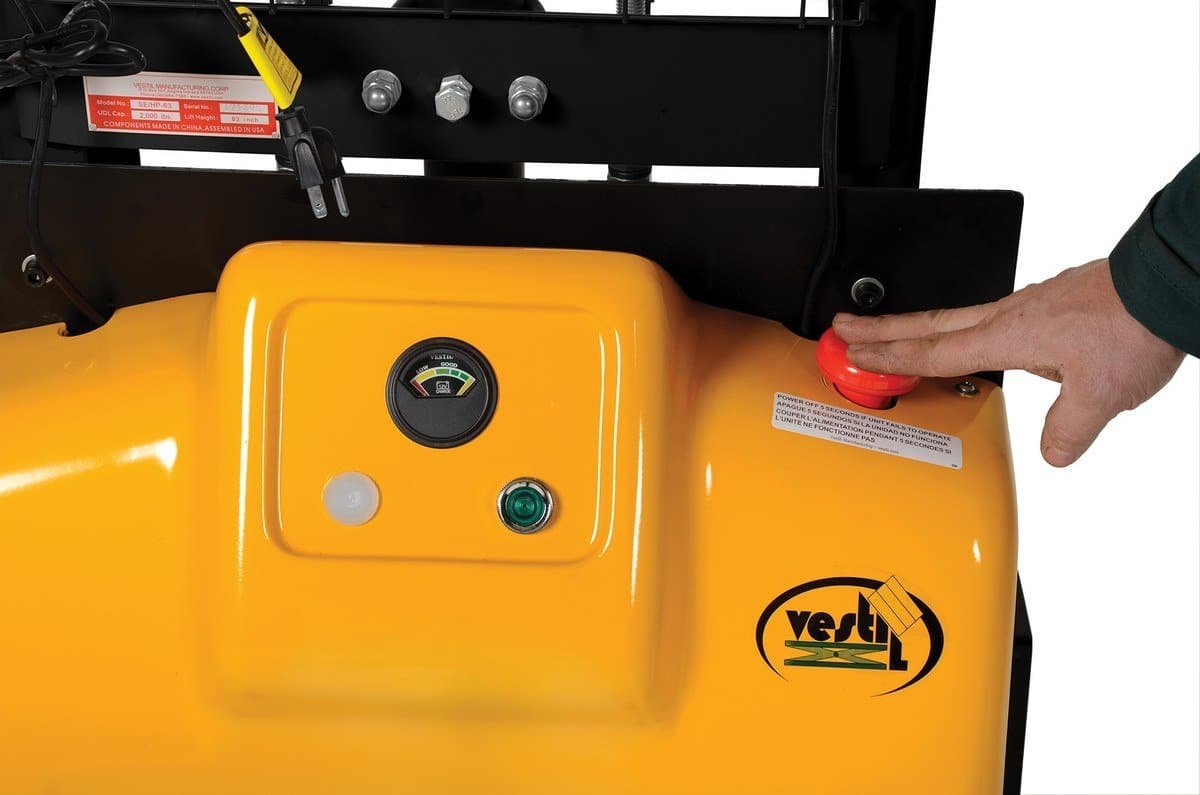

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V, 40Ah batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Individual forks are 6" wide.

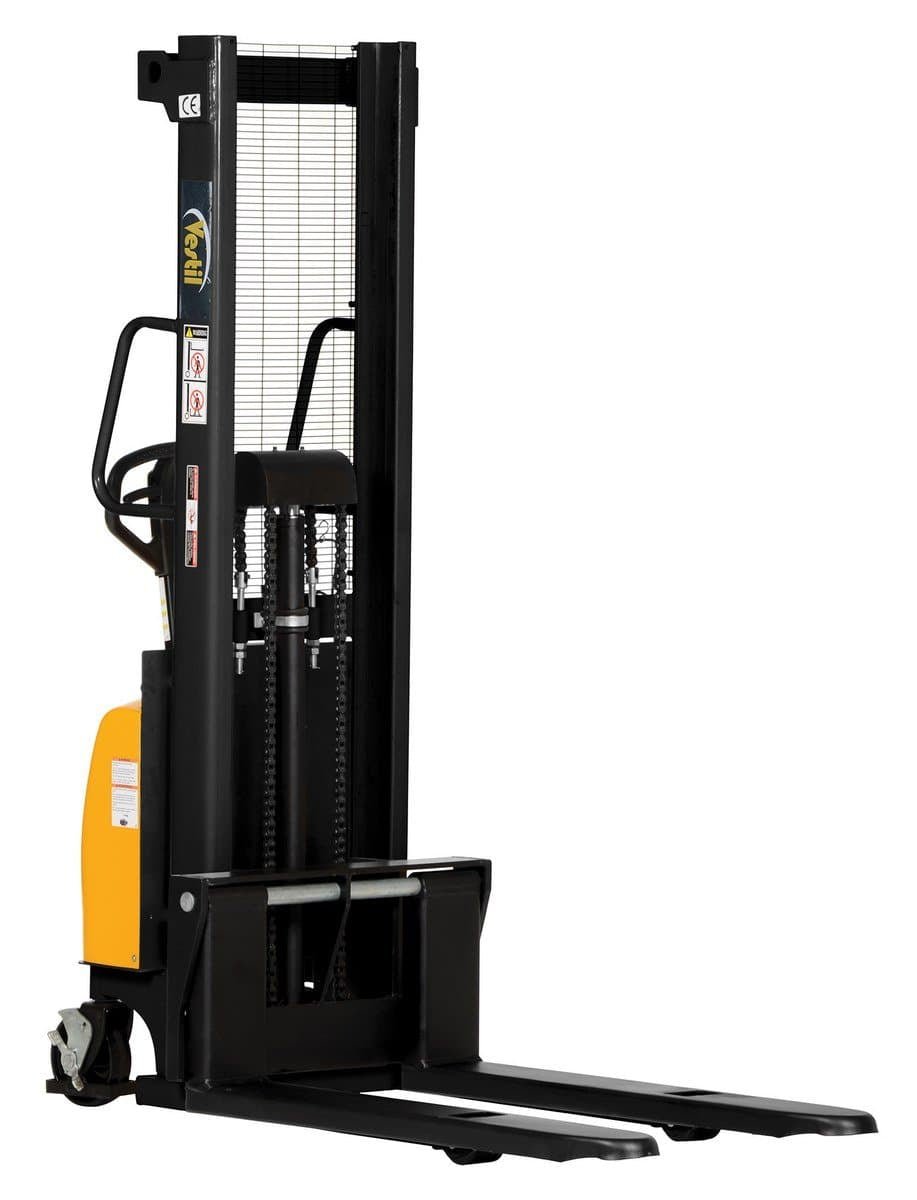

Combination Hand Pump and Electric Stacker
Model Image PDFs Overall Fork Size (WxL) Lowered Height Raised Height *Capacity(lbs)
0"-63" RH
*Capacity
(lbs)63"-118" RH
Wt.
(lbs)
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
SE/HP-63-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 2-1/8" 63" 2,000 -- 950
SE/HP-98-AA Warranty PDFCompliance Certificate 26-3/4"x42" 2-1/8" 98" 2,000 1,500 1084
SE/HP-118-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 2-1/8" 118" 2,000 1,500 1254
SE/HP-63-AA-AIR - Warranty PDF 26-3/4"x42" 2-1/8" 63" 2,000 -- 780
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
SE/HP-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 63" 2,000 -- 754
SE/HP-98 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 98" 2,000 1,500 902
SE/HP-118 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 118" 2,000 1,500 950

Optional Solid Platform, model SE/HP-DK

*Uniform Capacity at specific rasied height

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
