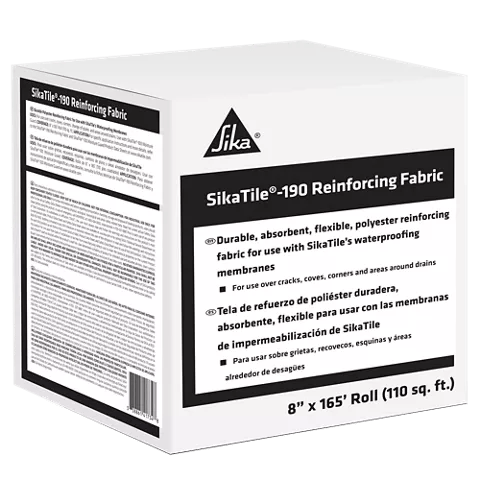

SikaTile®-190 Reinforcing Fabric

Name: SikaTile®-190 Reinforcing Fabric
Brand: Sika
SKU: 677052
Price: 45.15 USD
Availability: InStock

$45¹⁵

Shipping calculated at checkout.

Safe & Secure Payments.

Note: Hazardous chemicals must be shipped via UPS Ground. All other shipping options will be removed from checkout if added to cart. If you need expedited services for non-hazardous products, please make a separate transaction.

Durable Polyester Reinforcing Type Ii Fabric For Use With Sikatile’s Waterproofing Membranes

SikaTile®-190 Reinforcing Fabric is a high-performance, type II, flexible, durable, nonwoven, polyester engineered fabric for optional use with SikaTile®-100 Moisture Guard when installed under ceramic tile or stone on residential and commercial interior applications and is used to reinforce liquid waterproof membranes. SikaTile®-190 Reinforcing Fabric is ideal for use over areas such as cracks, coves, corners, and areas around drains when used with SikaTile®-100 Moisture Guard and can easily be cut to size with scissors or a razor knife, and easily incorporated in the liquid membrane.

Features

A durable polyester reinforcing type II fabric for use with SikaTile's waterproofing membranes
Ideal for use over areas such as cracks, coves, corners, and areas around drains when used with SikaTile-100 Moisture Guard
Can easily be cut to size with scissors or a razor knife, and easily incorporated in the liquid membrane
Significantly reduces reflective cracking
Flexible and resists tearing
High tensile strength
Non-adhesive lays flat
8” x 165’ roll (110 sq. ft.)
.30 mm thickness

Limitations

Protect from traffic, dirt, or dust from other trades until the final installation of the floor covering
▪ Do not use it as a final wear surface
Do not use below 40º F (4º C); do not allow membrane or substrate to be below 40ºF (4ºC) for the first 72 hours after application
Do not install over substrates containing asbestos
Do not apply over self-stick tile, particleboard, or similar types of dimensionally unstable substrates
Do not use over cracks or control joints subject to outof-plane movement or in-plane movement greater than 3/8" (10 mm)
Must be incorporated into the waterproof membrane during application
Avoid exposing to sharp objects that could cut or puncture the material
Do not use it as the primary roofing membrane

Packaging

8” x 165’ roll (110 sq. ft.)

Shelf Life

Product can be stored indefinitely when stored in original, sealed package

Storage Conditions

Store in undamaged, original, sealed package, in dry conditions

System Structure

White bonded fibrous mat. Thermally bonded fibers of polyethylene terephthalate and polyethylene terephthalate/adipate mat

SUBSTRATE QUALITY

For suitable substrates, refer to the SikaTile®-100 Moisture Guard Product Data Sheet for all related information or consult Technical Services for installation recommendations regarding substrates and conditions not listed.

SUBSTRATE PREPARATION

All surfaces must be between 40º F (4º C) to 90º F (32º C) and structurally sound (deflection not to exceed 1⁄360 of the span), dry, clean, and free from oil, grease, wax, paint, old adhesives, sealers, and curing compounds. Any contaminates which inhibit proper bond must be removed. Substrate preparation should be completed following ANSI A108 AN-2 “General Requirements for Sub-surfaces”. All substrates should be plumb and true, surface deviation should not exceed 1⁄4" in 10’. Patching, leveling, or areas requiring a mortar bed should be prepared using SikaLevel® Underlayments. Movement (Expansion) joints should be provided to comply with TCNA method EJ171. Concrete must be free of any negative hydrostatic pressure and/or excessive moisture.

APPLICATION

SikaTile® elastomeric membranes, when properly installed in accordance with the following installation guidelines, will provide years of protection for finish flooring installations. In addition to these instructions, installers shall also reference the most current edition of American National Standards Institute (ANSI), Tile Council of North America (TCNA) Handbook for Ceramic Tile Installations, The Marble Institute of America (MIA) Dimension Stone Design Manual, NWFA (National Wood Flooring Association) and Manufacturer's instructions of selected setting materials, substrates, sub-floors, or other manufacturers being used in total, or any part of, an installed flooring system with SikaTile®. Consult your selected manufacturer of these above-mentioned components to ensure selected products are compatible with SikaTile® elastomeric membranes.

For specific application instructions, refer to the SikaTile®-100 Moisture Guard Product Data Sheet for all related information.
