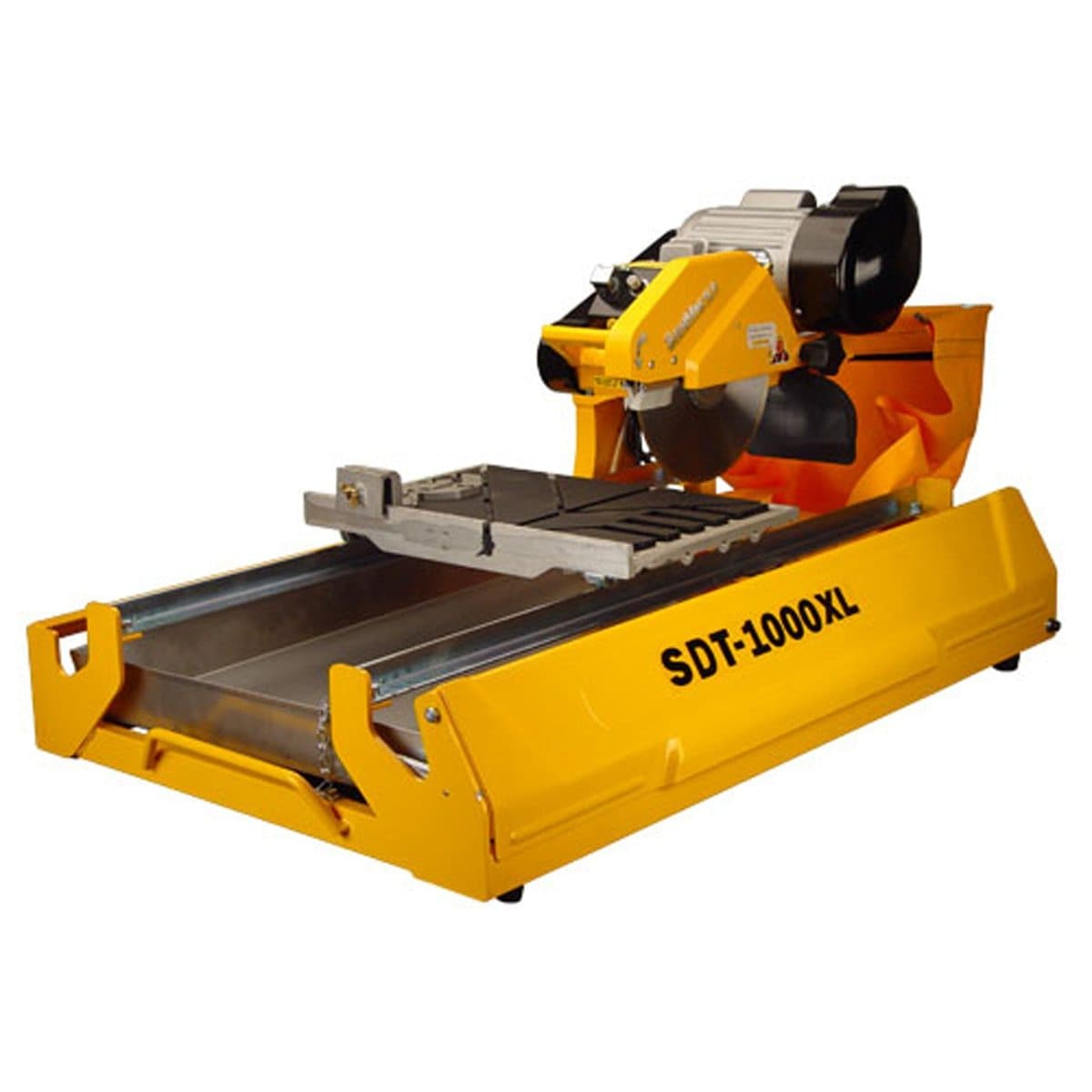

SawMaster SDT-1000XL Tile Saw

SawMaster SDT 1000XL Tile Saw | Wet Tile Saw for cutting oversized tiles

The SDT-1000XL is known among tile installers for its ability to deliver exceptional performance on tiles of all sizes. In fact, the SDT-1000XL was the first of its line to truly support oversized tiles—a significant feature by today's standards due to the common use of large tiles in modern construction. The latest generation of the SDT-1000XL continues to offer the same large cutting capacity and 1-1/2 HP motor of its predecessor. In addition, it addresses the issue of portability by including frame-mounted wheels to ease the task of transporting the saw around the job site.

---

Features

Stainless Steel Water Tray

Stainless steel provides the highest degree of durability among water trays, making it suitable for heavy-duty jobs.

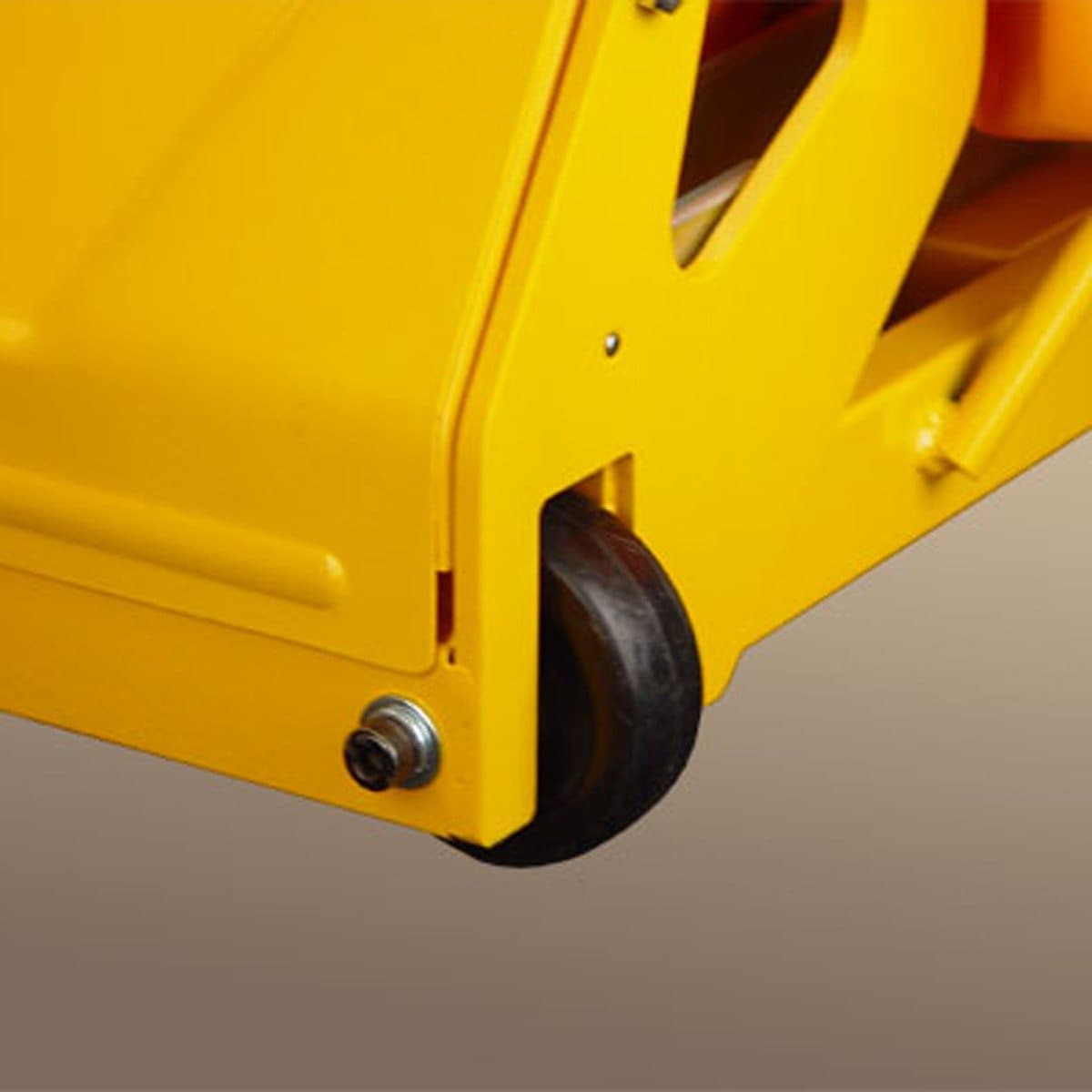

Transportation Wheels

Transportation wheels mounted at the rear of the frame allow the saw to be moved in a "dolly" fashion for greater convenience.

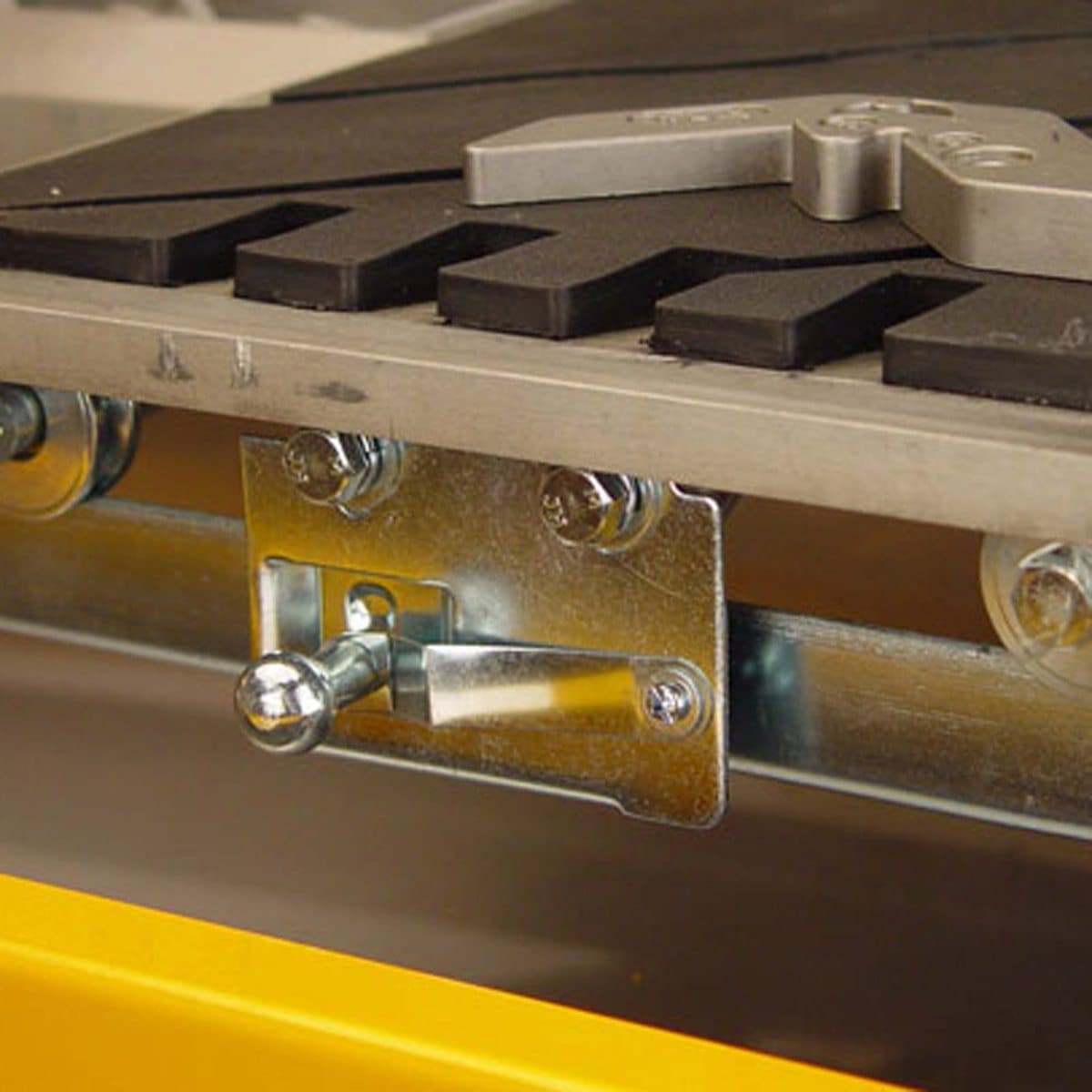

Table Retention Device

The cutting table is equipped with a spring lock to secure the cutting table when transporting the saw in between job sites.

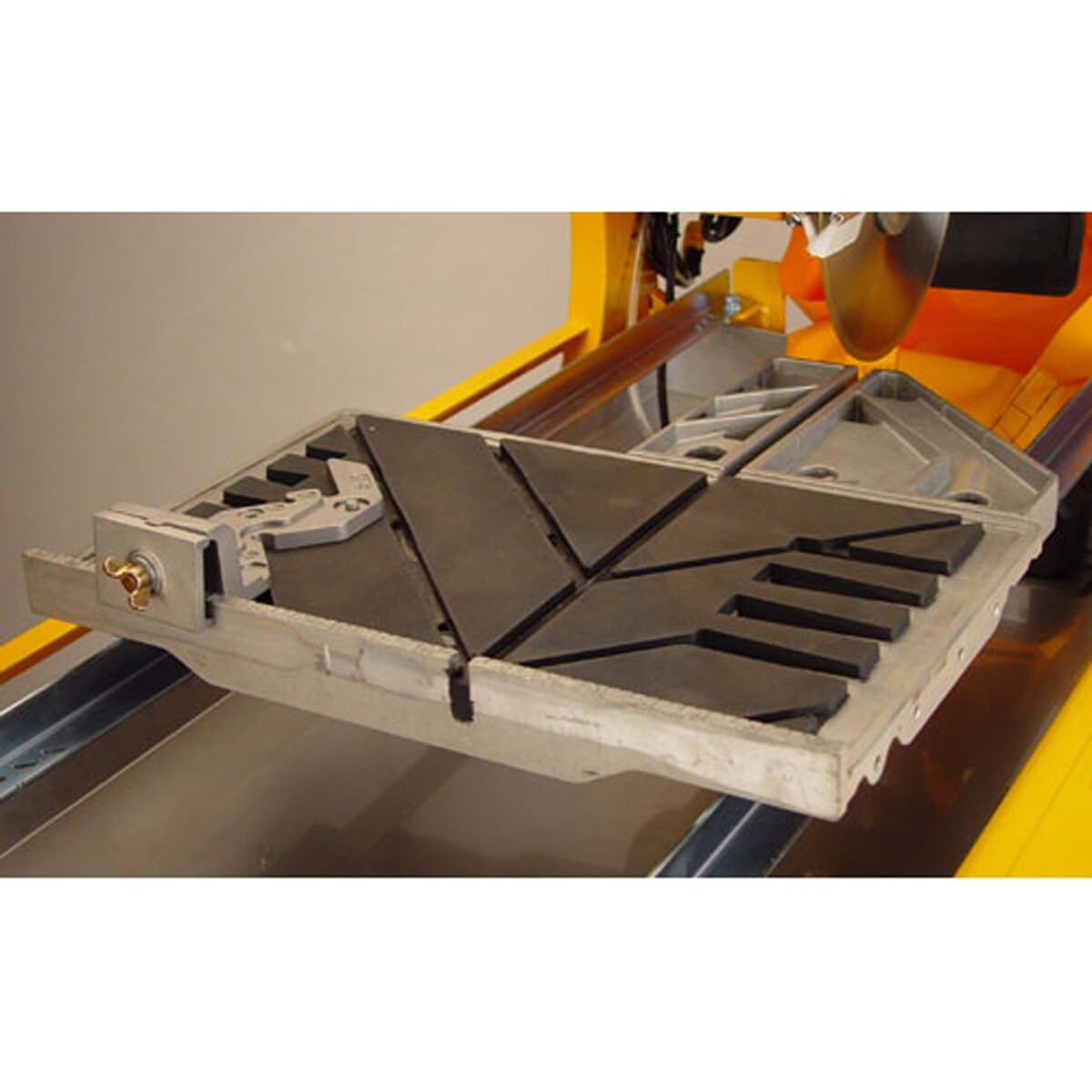

Rubber Matted Cutting Table

The new cast aluminum cutting tables are covered by a rubber mat that is injected directly onto the table and chemically bond for ehanced durability.

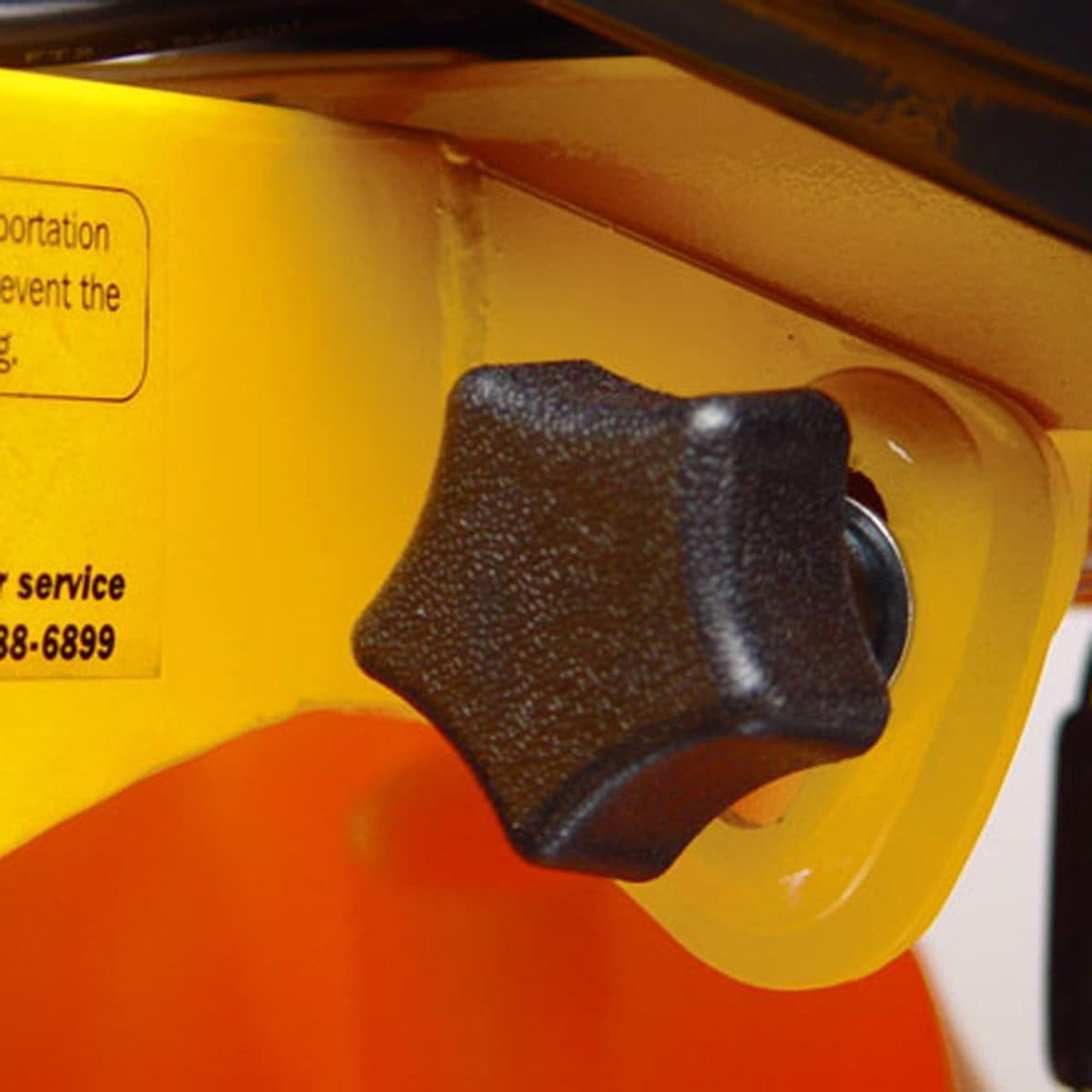

Adjustable Cutting Height

Cutting depth can be easily adjusted to accommodate 6" to 10" blades and to provide plunge cutting functionality.

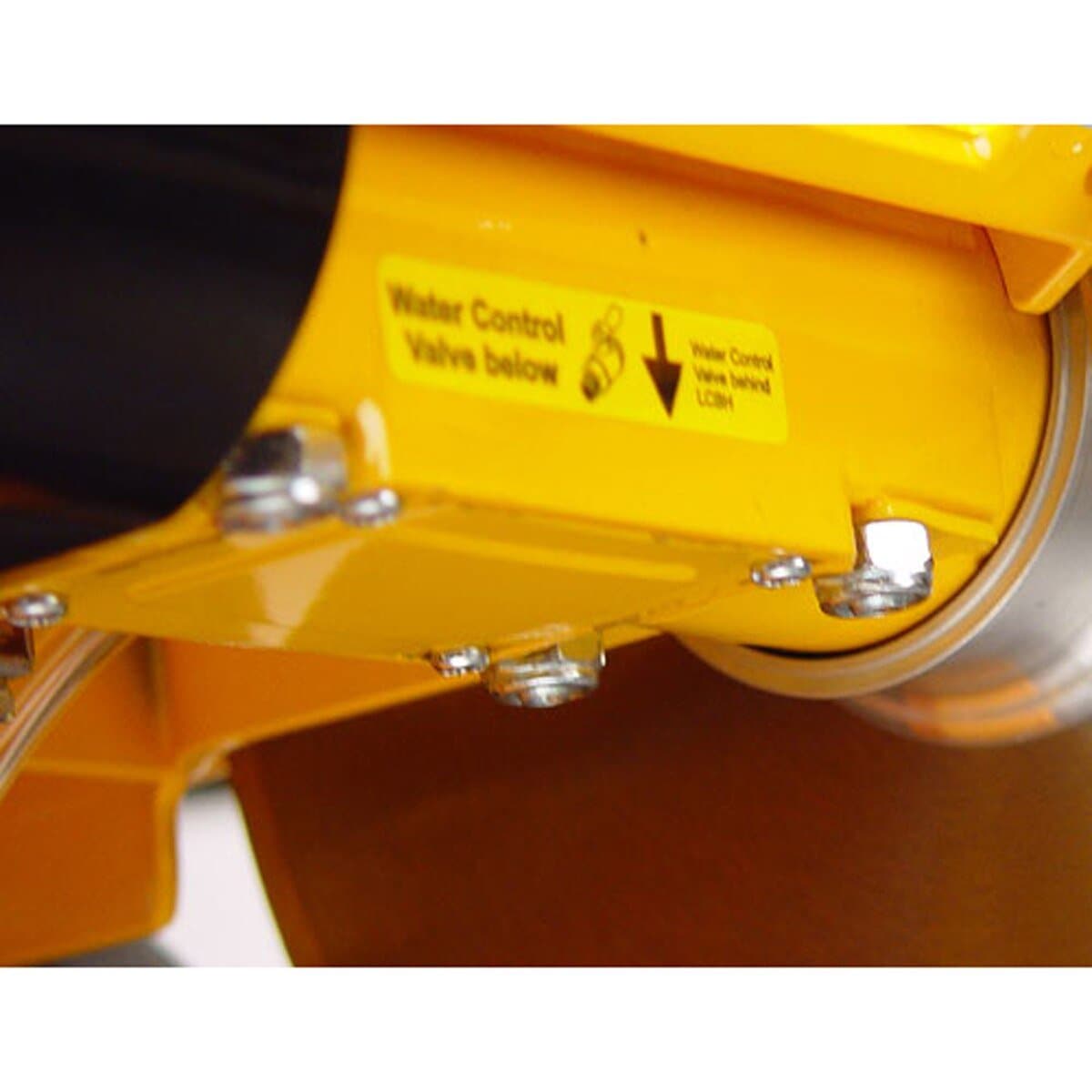

LCBH

The patented LCBH (Liquid Cooled Bearing Housing) works with the water pump to cool down the bearing housing during saw operation, which increases the service life of the bearings even under heavy loads.

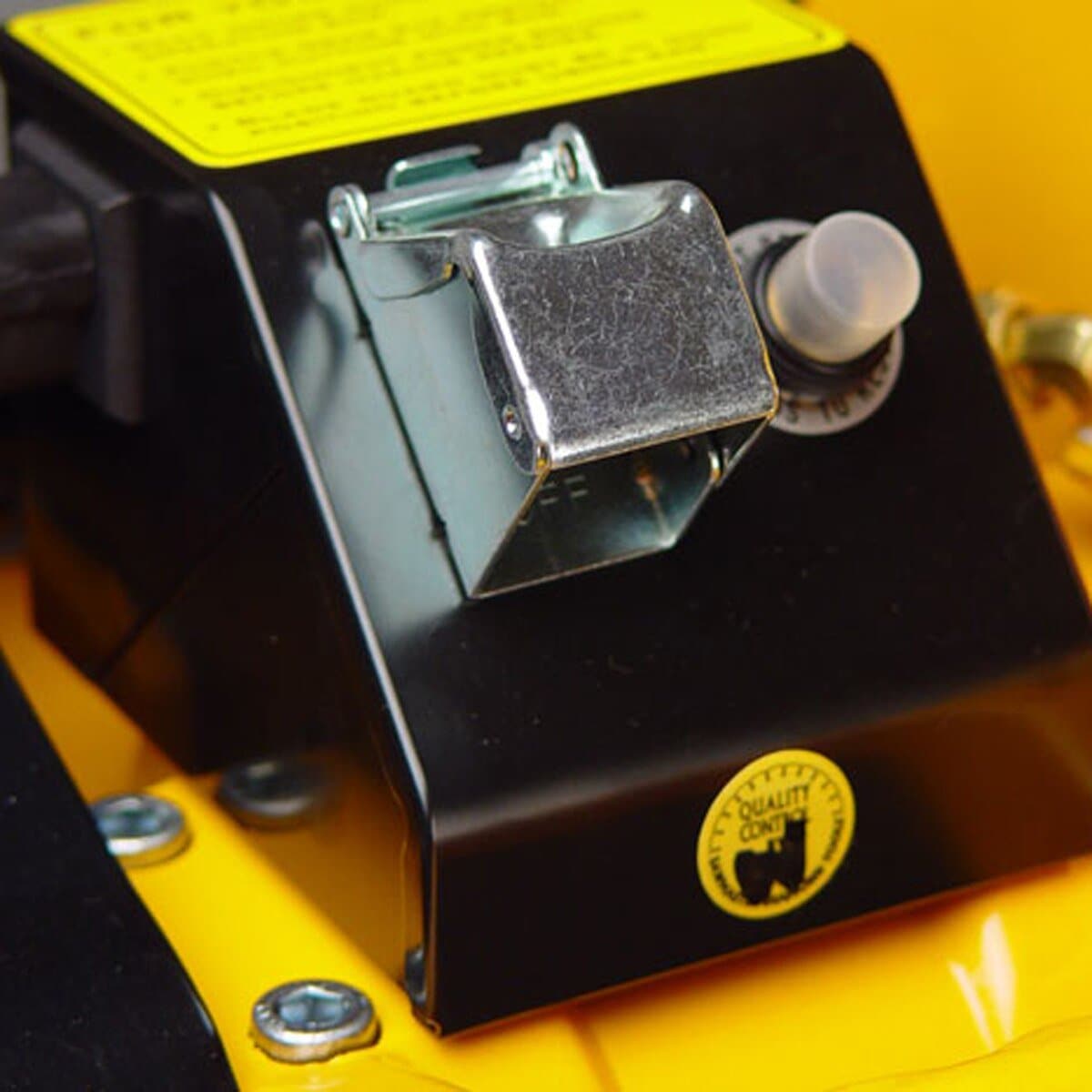

Thermal Overload Protection

Automatic thermal overload protection prevents the motor from overheating and protects the saw from power surges.

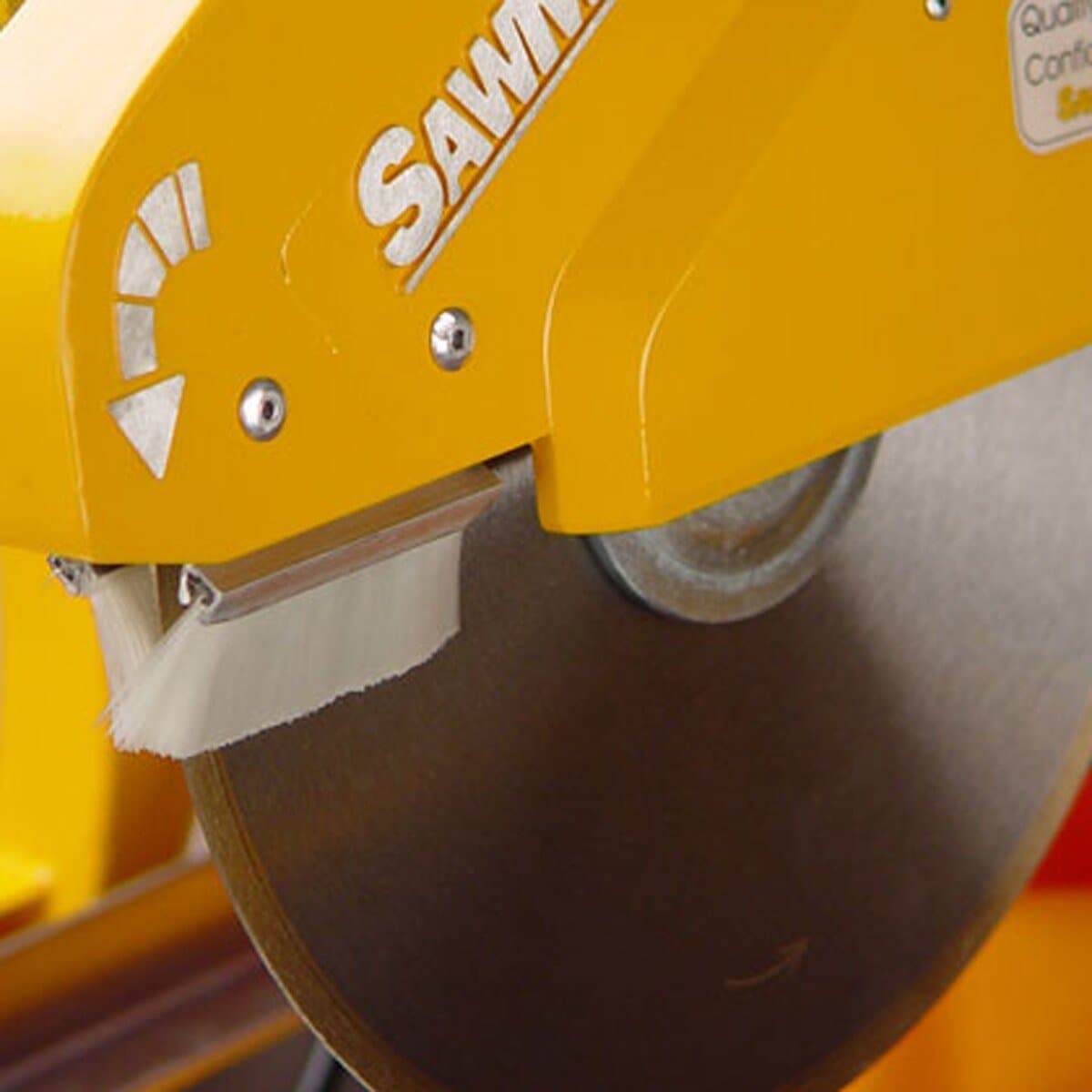

Blade Guard with Brushes

The blade guard contains brushes that not only minimize spray, but they also uniformly distribute the water over the blade for more effective cooling.

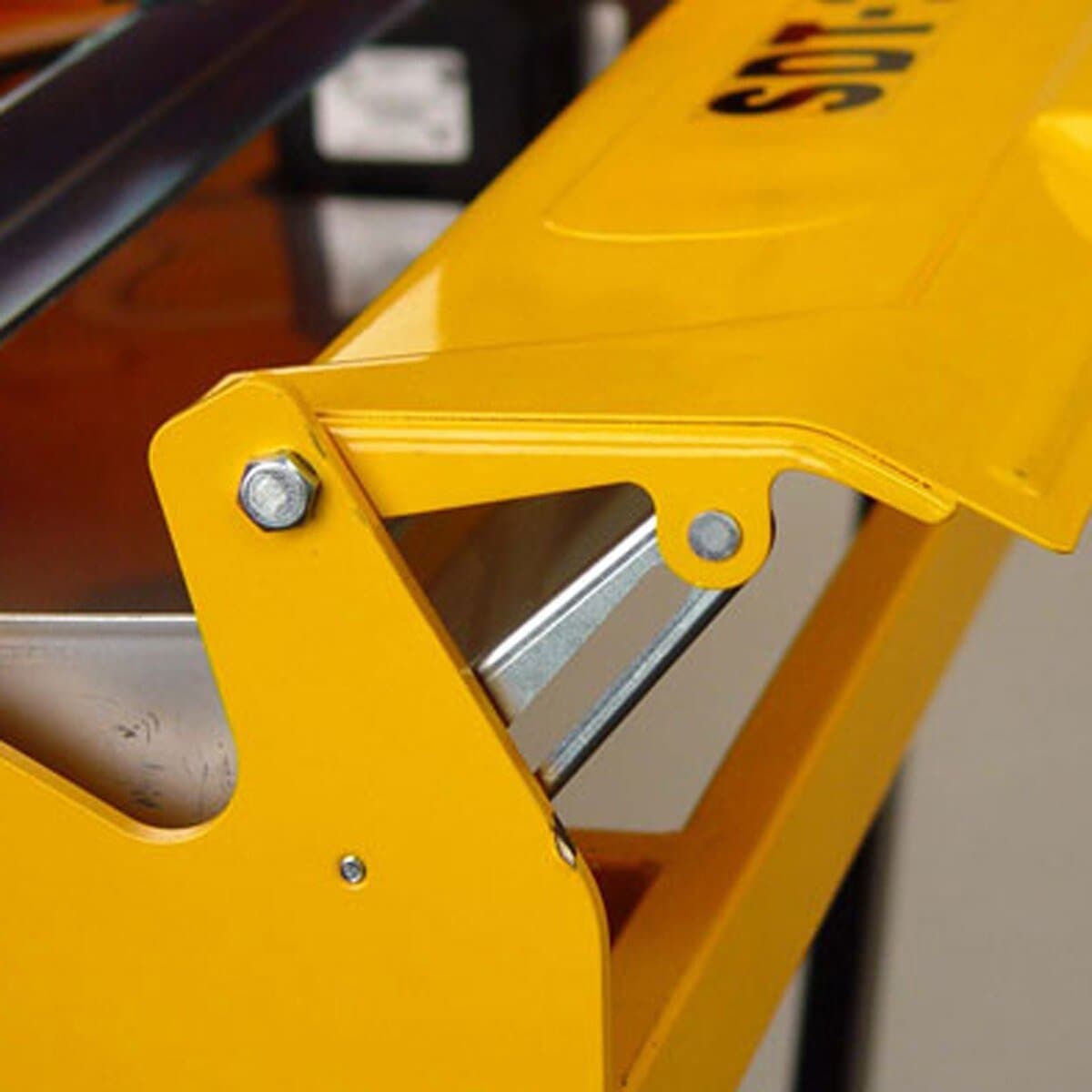

Drip Guard

Because oversized tiles often exceed the width of the cutting table, a substantial amount of water is lost by spilling over the edges. The drip guard alleviates this problem by catching the water and returning it to the tray. During transportation, the Drip Guard can be lowered to secure the water tray in place.

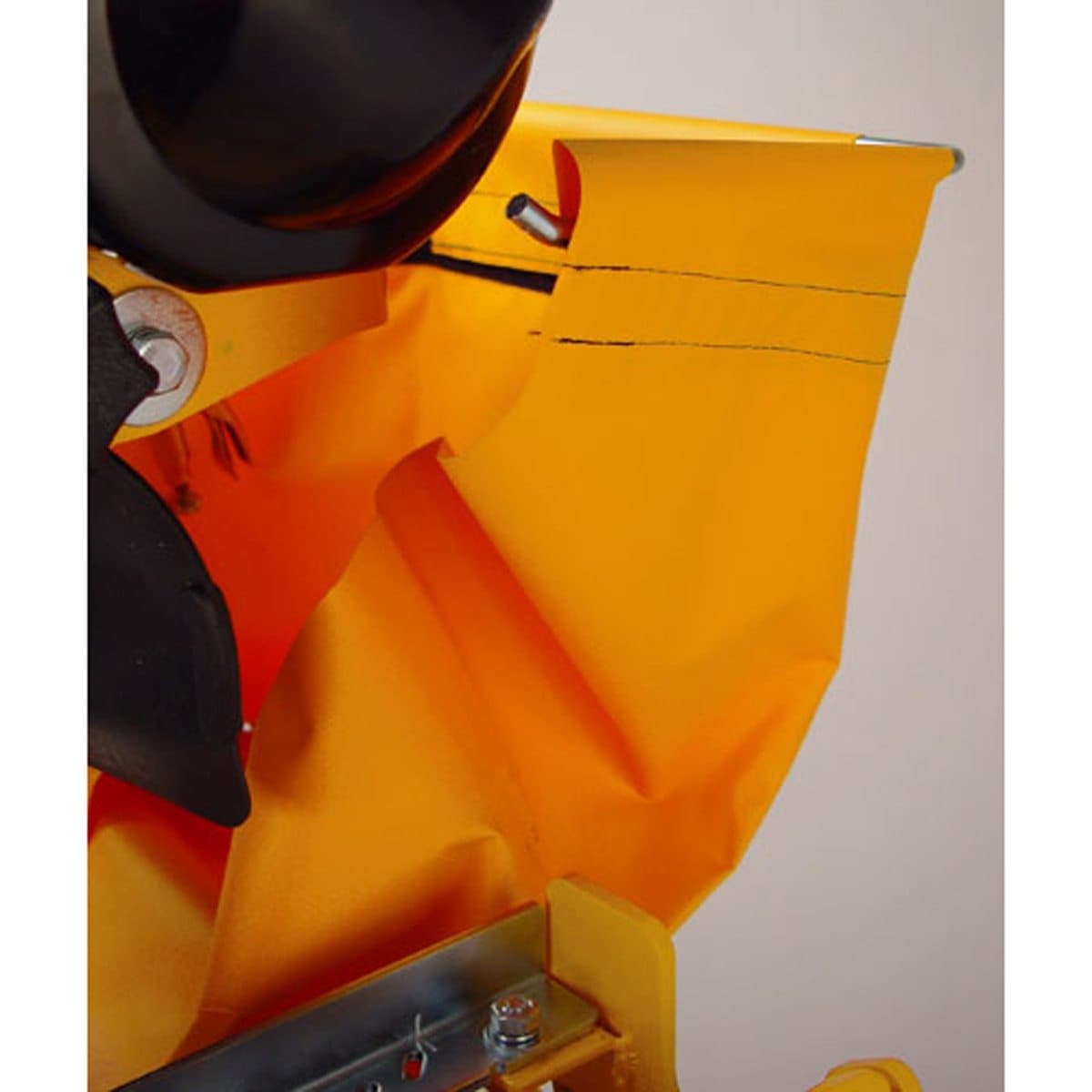

Splash Guard

The splash guard reduces water spray to prevent the loss of water cooling during operation and to keep the work site clean.

---

Specifications

Saw Type	Tile
Motor	115 V/60 Hz
Horsepower	1 1/2" HP
Blade Capacity	6" - 10"
Blade Arbor	5/8"
RPM	3200
Weight	125 lbs
Cutting Depth	3 1/2"
Rip Cutting	24"
Diagonal Cutting	16"
ABS Water Tray	Equipped
Thermal Protection	Equipped
LCBH	Equipped

Recommend Using...

• Blade CR1080C(10" Cheetah Series Specialty Wet Tile Blades)
• Stand SDT-1000SW
