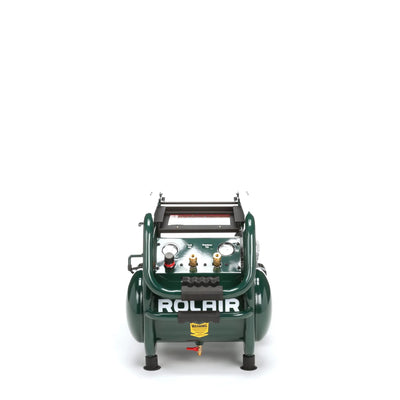

VT25BIG Air Compressor

Hand Carry Air Compressors

The VT25BIG boasts the highest air output of any direct drive air compressor in our line-up. The motor-pump delivers a whopping 6.5 CFM @ 90 PSI. The foot-actuated folding handle and heavy-duty flat-free tires make it easy to move the VT25BIG around the job site.

ABOUT THE PUMP

---

• ROLAIR Quality
• Single Stage
• Ball Bearings
• Cast-Iron Cylinder
• Stainless-Steel Reed Valves and Splash Lubrication Ensure Longer Life

ABOUT THE MOTOR

---

• 2.5 HP
• 3400 RPM
• Overload Protection with Manual Reset
• 115 Volt
• 60 Hz
• Heavy-Duty/Industrial Grade with Ball Bearings for Greater Durability

STANDARD EQUIPMENT

---

• Heavy Duty Wheels for Greater Jobsite Mobility
• Start/Stop Pressure Switch with On/Off Lever
• Fold-Down Handle for Easy Storage/Low Profile
• User-Friendly Control Panel Including Gauges and 2 Quick-Disconnects,
• Safety Relief Valve
• Intake Filter with Silencer
• 13.8 Amp Motor
• Initial 10 oz. Oil Fill Included

SPECIFICATIONS

---

HORSE POWER	2.5 HP
CFM DISPLACED	9.3 CFM
CFM DELIVERED	6.5 CFM @ 90 PSI
PUMP/MOTOR RPM	3400 RPM
OVERLOAD PROTECTION	Yes (Automatic)
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	10 oz.
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	1
TANK CAPACITY	5.3 Gallons
L X W X H	29.5" x 18.5" x 42" *handle up
DECIBEL RATING	86 dBA
COUNTRY OF ORIGIN	Compressor Origin.pdf
SHIPPING WEIGHT	108 lb.
SHIPPING DIMENSIONS (L X W X H)	30" x 21" x 22"
