JC10PLUS Air Compressor

Hand Carry Air Compressors

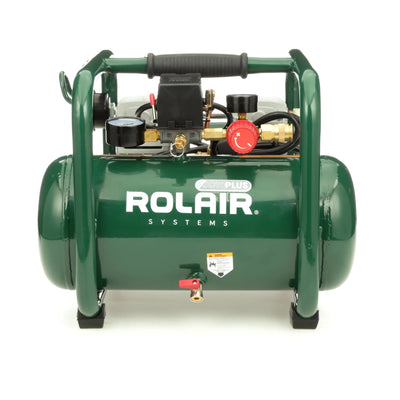

Model JC10PLUS - a super-quiet oilless air compressor - is the follow-up to our wildly popular JC10. The JC10PLUS features a host of improved features including a larger tank, sturdier roll-cage, integrated cord wrap and upward-facing gauges. The two-cylinder pump is powered by a 1700 RPM low-amp draw motor for maximum efficiency.

SPECIFICATIONS

---

HORSE POWER	1 HP
CFM DISPLACED	4.1 CFM
CFM DELIVERED	2.4 CFM @ 90 PSI
PUMP/MOTOR RPM	1700
OVERLOAD PROTECTION	Yes (Automatic)
LUBRICATION TYPE	Oil-Less
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	2
TANK CAPACITY	2.5 Gallons
L X W X H	16.5" x 16.5" x 14"
DECIBEL RATING	60 dBA
SHIPPING WEIGHT	50 lb.
SHIPPING DIMENSIONS (L X W X H)	17" x 17" x 15"
