5520K17A Wheeled Electric Air Compressors
$1,36500
Unit price
/
Make a Selection

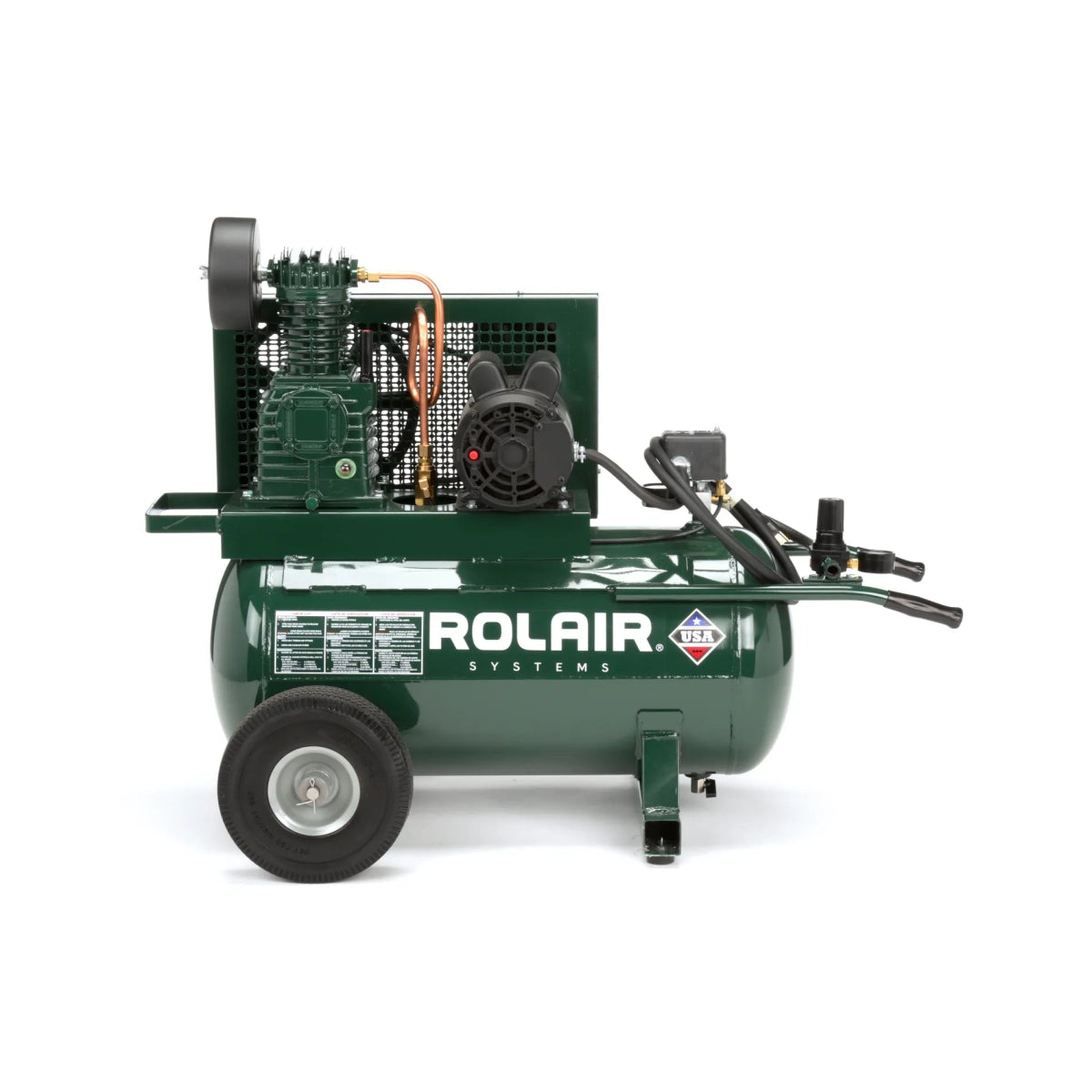

Wheeled Electric Air Compressors
Model 5520K17A is the step up from our classic 1.5 HP twin-tank wheelbarrow design. Featuring a single 20 gallon tank assembly, the 5520K17A sustains 7.3 CFM @ 90 PSI longer than the traditional 9 gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.
Optional Equipment: Filter-Regulator-Lubricator Sets, Dual Voltage Switch, Dual Control Operation.
ABOUT THE PUMP
- Heavy-Duty
- Single Stage
- Cast-Iron Twin Cylinders
- Ball Bearings
- Splash Lubricated
- Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
- Aluminum Alloy Connecting Rods with Automotive-Style Inserts
- Multi-Finned 11" Flywheel, Oil Sight Gauge
ABOUT THE MOTOR
- 1.5 HP
- 1755 RPM
- Open Drip Proof
- 115/230 Volt - 60 Hz
- Ball Bearings
- Overload Protection with Manual Reset
STANDARD EQUIPMENT
- Pressure Gauge 0-200 in 5 lb. Graduations
- Square D Pressure Switch with Unloader
- Accessory Support Clip
- Intake Filter with Silencer and Replaceable Element
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve
SPECIFICATIONS
| HORSE POWER | 1.5 HP |
| CFM DISPLACED | 10.1 CFM |
| CFM DELIVERED | 7.3 CFM @ 90 PSI |
| PUMP/MOTOR RPM | 1755 RPM |
| OVERLOAD PROTECTION | Yes (Manual Reset Standard) |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 34 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| TANK CAPACITY | 20 Gallons |
| L X W X H | 42"x22"x34" |
| DECIBEL RATING | Unavailable |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
| SHIPPING WEIGHT | 205 lb. |
| SHIPPING DIMENSIONS (L X W X H) | 47" x 23" x 39" |
Documents
5520K17A Owner's Manual
