Rolair | SKU: 4090H17

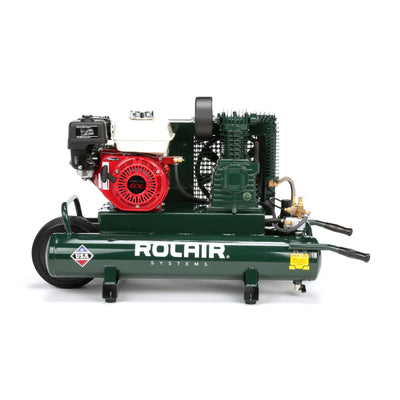

4090HK17 Wheeled Gas Air Compressor

Name: 4090HK17 Wheeled Gas Air Compressor
Brand: Rolair
SKU: 4090H17
Price: 1363.00 USD
Availability: InStock

$1,363⁰⁰

Shipping calculated at checkout.

Safe & Secure Payments.

Wheeled Gas Air Compressors

The 4090HK17 gas-powered air compressor has long been the top choice of framing and roofing contractors. In this class, the 4090HK17 stands out because of its high CFM output, portability and rugged build. Delivering 9.3 CFM @ 90 PSI this unit incorporates the popular 163 cc (GX160) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.
Optional Equipment: Filter-Regulator-Lubricator Sets

ABOUT THE PUMP

Heavy-Duty
Single Stage
Cast-Iron Twin Cylinders
Ball Bearings
Splash Lubricated
Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
Aluminum Alloy Connecting Rods with Automotive-Style Inserts
Multi-Finned 11" Flywheel
Oil Sight Gauge

ABOUT THE ENGINE

163 cc (5.5 HP) Honda 4 Cycle
Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve
Overheard Valves
Retractable Starter
On/Off Switch
Splash Lubricated
Low Oil Shutdown

STANDARD EQUIPMENT

Pressure Gauge 0-200 PSI in 5 lb. Graduations
Automatic Pilot Valve Operation
110-135 Operating Pressure Range
Industrial Flexible Discharge Hose
Automatic Idle Control for Fuel Economy and Long Service Life
Intake Filter with Silencer and Replaceable Element
Schmidt Belt Tightening Device
Air-Cooled Aftercooler
Totally Enclosed Steel Belt Guard
Dual Safety Relief Valves

SPECIFICATIONS

HORSE POWER	163 cc (5.5 HP)
CFM DISPLACED	13.1 CFM
CFM DELIVERED	9.3 CFM @ 90 PSI
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	34 oz.
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	2
TANK CAPACITY	9 Gallons
L X W X H	46"x19"x28"
DECIBEL RATING	Unavailable
COUNTRY OF ORIGIN	Compressor Origin.pdf
SHIPPING WEIGHT	185 lb.
SHIPPING DIMENSIONS (L X W X H)	47" x 22" x 36"
