Sigma Series Professional DBM-32P Rebar Bender | 240/415V 3-Phase
SKU: DBM-32P

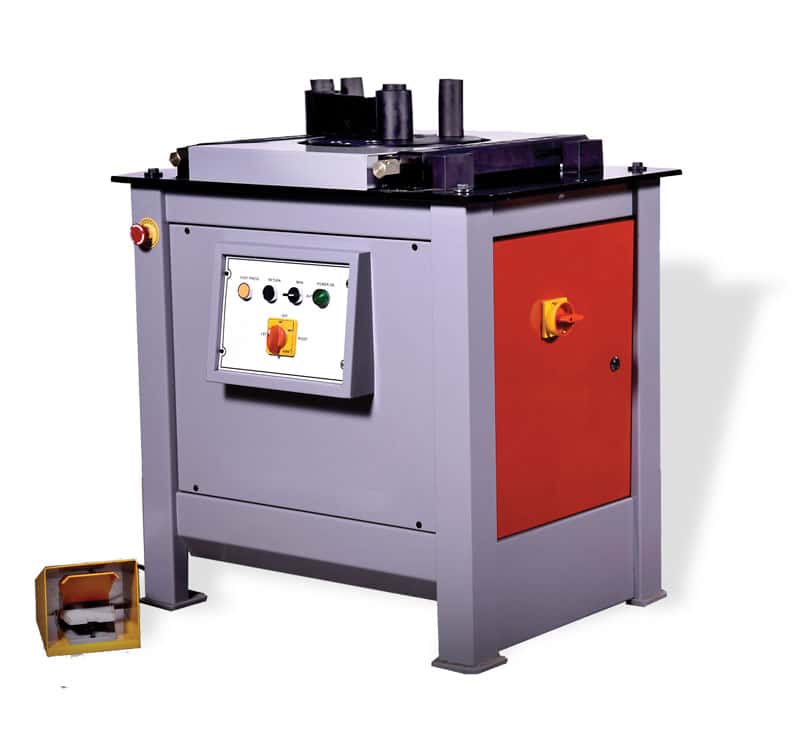

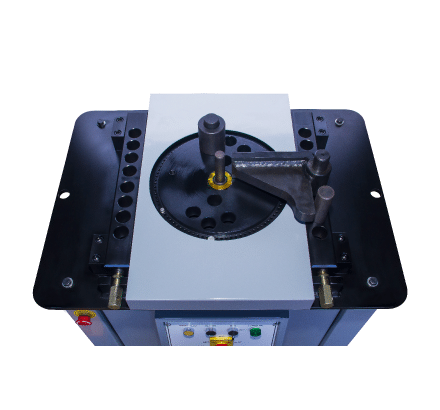

Our Sigma Series Professional DBM-32P Production Rebar Bender is used to accurately shape reinforcement bars.
It is equipped with high-quality gears and an motor that is easy to program and use. This in-shop production tool can be programmed to bend in
both directions.
both directions.
The steel frame and housing have a powder coated exterior finish for long-lasting durability.
The DBM-32P mechanical gears are manufactured with special heat treated alloy steel to stand up to the demands of heavy-duty production rebar bending.
Please note that the power requirements to operate the DBM-32P are 240/415V 3-Phase AC.
Specifications| Capacity | #10 (32mm), Grade 60 Rebar |
| Width x Length x Height | 29.53" (750mm) x 36.22" (920mm) x 33.46" (850mm) |
| Motor | 5 hp (3.7 kW), 60 Hz, 240/415V 3-phase AC |
| Weight | 992 lbs ( 450 Kg) |
| Gear Motor Type | Planerary Gear Motor |
| Capable of Bending | #10 (32mm) grade 60 rebar or 2 #6 (20mm) or 3 # 4 (12mm) |
